Home > Products > High Power LED > led module 60W, 1W~500w led module with RoHs approved

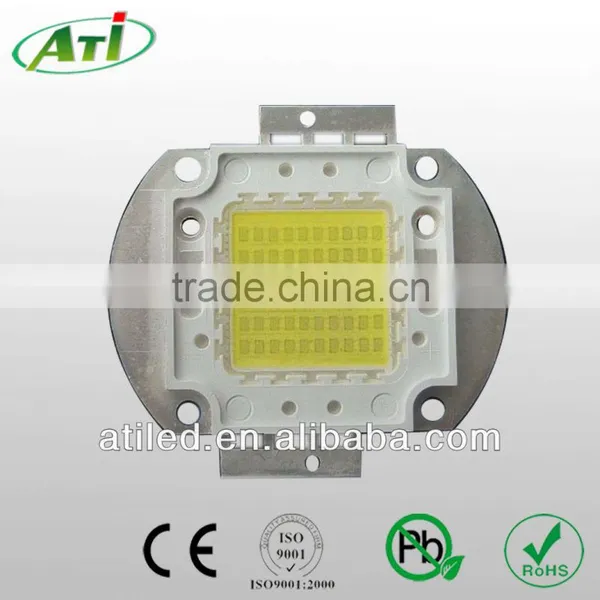

led module 60W, 1W~500w led module with RoHs approved
- 50000 Piece / Pieces per Month
- Shanghai; Ningbo
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | ATI HIHG POWER LED 60W | Model Number: | ATI-led module 60W |
Product Description
LED module 60W features.
Electornic parameters.
Parameter | Symbol | Conditions | Min. | Typ | Max | Units | Remark |
Luminous flux |
LM
| IF=2100mA | 6500 |
| 7000 | lm | 4500-10000K |
6000 |
| 6700 | 3500-4500K | ||||
6000 |
| 6500 | 2700-3500K | ||||
Color Temperature | Tc | IF= 2100mA | 4500 | — | 10000 | K | Ra>75 |
3500 | — | 4500 | Ra>75 | ||||
2700 | — | 3500 | Ra>65 | ||||
Forward Voltage | VF | IF= 2100mA | 30.0 | — | 36.0 | V | — |
Thermal Resistance Junction To Board | RJ-B | IF= 2100mA | — | 10 | — | °C/W | — |
Reverse Current | IR | VR=5V | — | — | 10 | μA | — |
Viewing Angle | 2θ1/2 | IF= 2100mA | — | 120 | — | Deg | — |
High power LED Series ------------1W to 300W
Production Line----- Reliable quality assurance
Certifications ------ You choose five star company.
More information, You can easily contact us.
...
