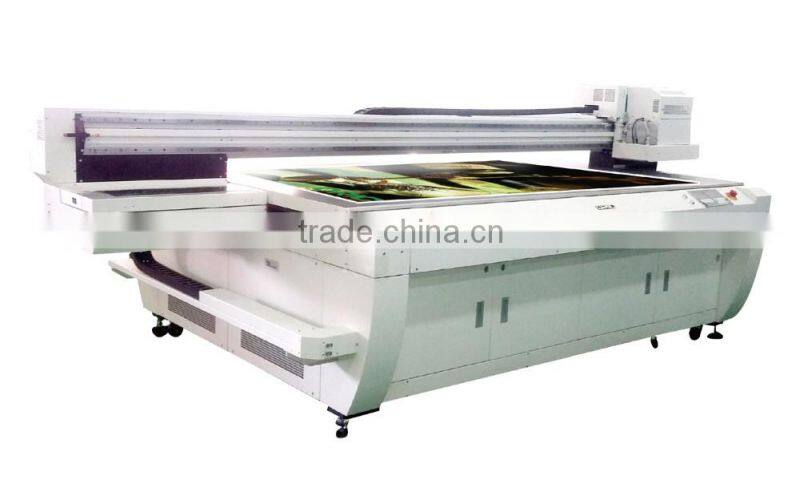

Digital 8 gen5 printhead UV flatbed led printer
HIGH PERFORMANCEPERFECT COMBINATION ---------
----------- O-27 Pursues Perfection
PRINTER INTRODUCTION
--- High-end design
--- Prefect speed experience
--- Self-developed control system
--- Variety of print configuration
FEATURE
Print Heads Guarantee Quality
ORIC O27 adopts Gen5 print heads to support the high-precision printing ,the various ink droplets and the grey scale printing technology ensure the details of image vivid and exact .Three-stage various ink drop control makes image reduction degree more than 95%

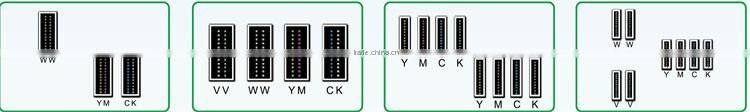

Staggered Print Head Arrangement
Printer supports 6 colors including white and banish ,express the best printing image no matter the color or transparent media ,implement the different printing needs through print heads arrangement , meanwhile save the ink consumption.

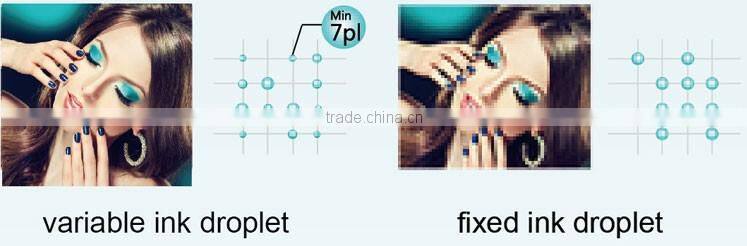

Self-developed Intelligent Inkjet Technology
This mode adopts the self-indepedent developed intelligent inkjet technology to print high quality image , Print heads can jet three different sizes of ink drops through intelligent control,even though low resolution printing cna reach the better image quality than the same type inkjet printer.

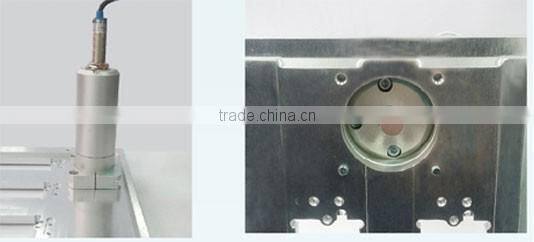

Automatic Height Measurement
O-27 adopts the automatic height measurement system to adjust the distance between the baseplate and the media autmetically according to the thickness of media ,make sure that print heads print the best quality in the most proper distance

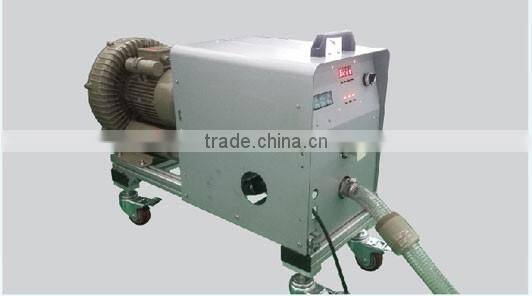

Air Draft System
There are four air draft channels of printer to control the air draft of whole flatbed.System is dominate by high-power suction motor ,the motor module can be places depend upon the four trundles

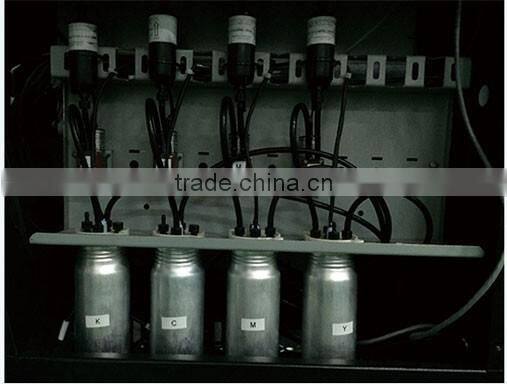

INK supply system
Ink supply system ensures precise control of ink volume in the printing process;coordinates with the two=-stage neggatibe precessure system ,reduces the possibility of ink breaking and ink overflow ;provide protection for high-quality printing
High Quality Material ,High Standard Accessories
All-stell manufacturing ,every detail reflects our sincerely ,Cooperate with international brand like THK,IGUS,which lay a foundation for stability and durability
Model |
O-27 |
|
Print Head |
8 RICOH GEN5 |
|
Maintenance |
AutoClean,AutoMoisture |
|
Resolution |
300dpi(gen4),600dpi(gen5) |
|
Max Printing Speed |
65m²/h(high production) |
|
Ink |
Type |
UV Flexible Ink |
Color |
CMYK,CMYK+W,CMYK+W+V |
|
Capacity |
300ml |
|
|
Media |
print size |
2700mm*1500mm |
Max Thickness |
2mm |
|
Pipe Internal Diameter |
50-100mm |
|
Printing Mode |
Bi-direction/Uni-direction |
|
Port |
USB 2.0 |
|
Computer |
RAM |
4 GB |
Installation Space |
300M |
|
Power Supply |
AC 220-240V 50HZ |
|
Environment |
Temperature |
25℃-35℃ |
Humidity |
35-65%Rh |
|
Dimensions(LxWxH) |
2160mmx4230mmx1400mm |
|
Weight |
1200kg |
|
APPLICATION
FACTORY SHOW
OUR SERVICE
24-Hour Online Service
Pre-Sales Service After-Sales Service
*Inquiry and consulting support * Training how to install the machine and training use
*Sample testing support * Engineers availa to service machine overseas
* View our factory * One year warranty
PACKING & DELIVERY
|
|
Packing |
|
Size |
3480mm(L)*1475mm(W)*620mm(H) |
|
Weight |
800kg |
|
Details |
on wooden |
|
