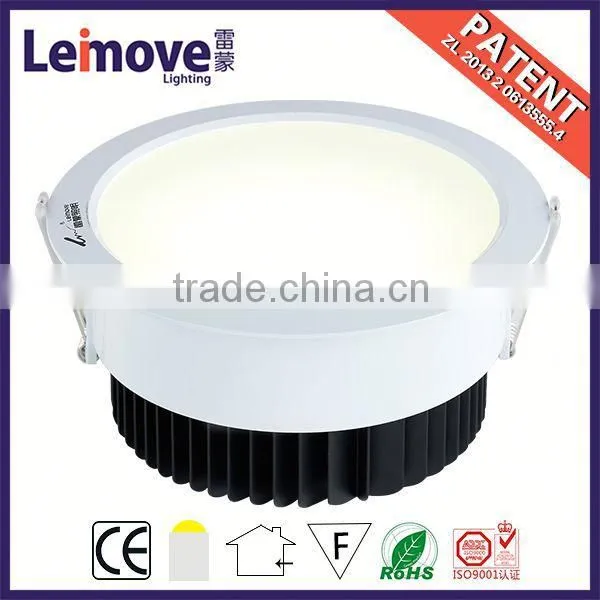

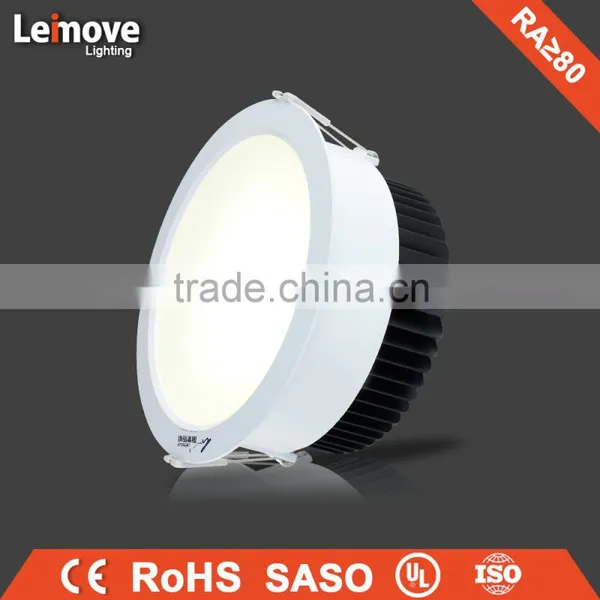

smd australian standards led down light
| Product Parameter | |||
| Item NO: | LM2949 | LED chip: | SMD |
| LED lamp shape: | Round | Finishing color: | White |
| Luminous flux: | 550/770/990/1320/1650/2750lm |
Power: | 5-30W, |
| Color Temperature: | 3000K/4000K/6000K | Certificates | CE, GS, CB,ROHS,CCC,SASO |
| Model | Power | Voltage | Lumious flux | CRI | CT | Size | Installation Size |
| LM2949 | 5W(2.5 inch) | AC100-240V | 550lm | RA≥ 80 |
3000K/4000K/6000K | Φ94xH80mm | Φ78mm |
| LM2949 | 7W(3 inch) | AC100-240V | 770lm | RA ≥80 | 3000K/4000K/6000K | Φ110xH80mm | Φ95mm |
| LM2949 | 9W(4 inch) | AC100-240V | 990lm | RA ≥80 | 3000K/4000K/6000K | Φ140xH85mm | Φ120mm |

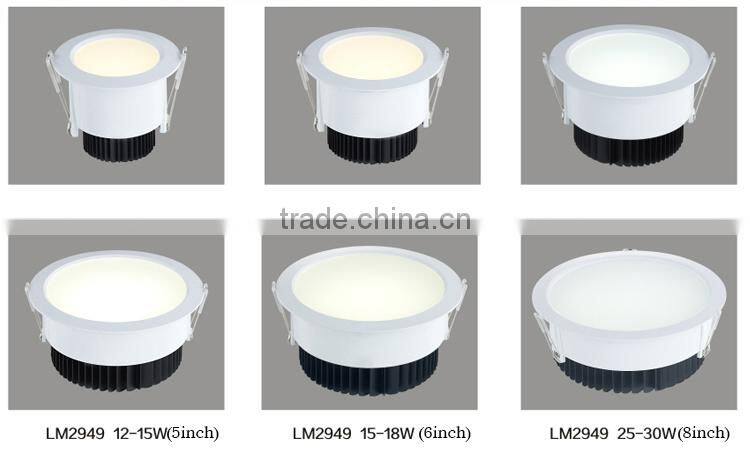

| LM2949 | 12-15W(5 inch | AC100-240V | 1320lm | RA≥80 | 3000K/4000K/6000K | Φ167xH85mm | Φ150mm |
| LM2949 | 15-18W(6 inch | AC100-240V | 1650lm | RA≥80 | 3000K/4000K/6000K | Φ185xH90mm | Φ170mm |
| LM2949 | 25-30W(8 inch | AC100-240V | 2750lm | RA≥80 | 3000K/4000K/6000K | Φ230xH100mm | Φ205mm |

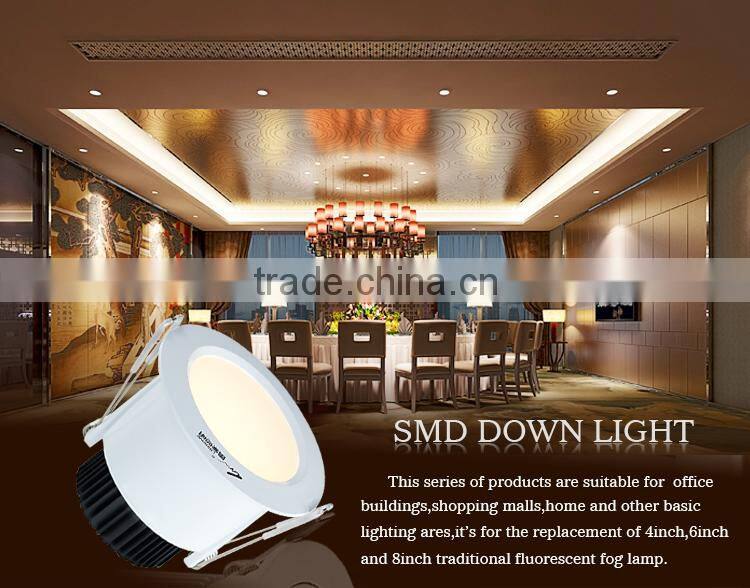

This series of products are suitable for office buildings,shoppingmalls, home and other basic lighting areas,it's for the replacement of 4inch,6inch and 8inch traditional fluorescent fog lamp;

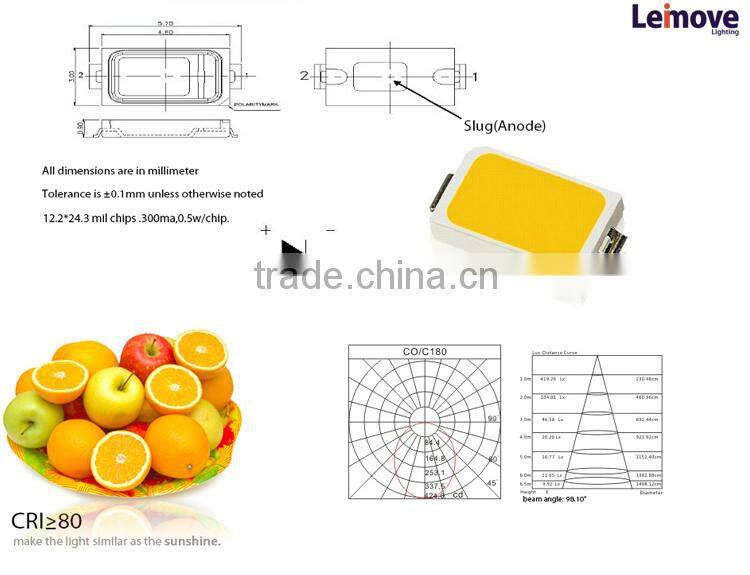

Adopt 5730 smd chip .
CRI more than 80,ist closr to rhe nature sunlight.
1.uniform light and low temperature rising
2.sie-casting aluminum radiator
3.Exclusive lens design
4.high cri
5.Luminaire efficency
6.Brightness equivalent to conventional fixtures

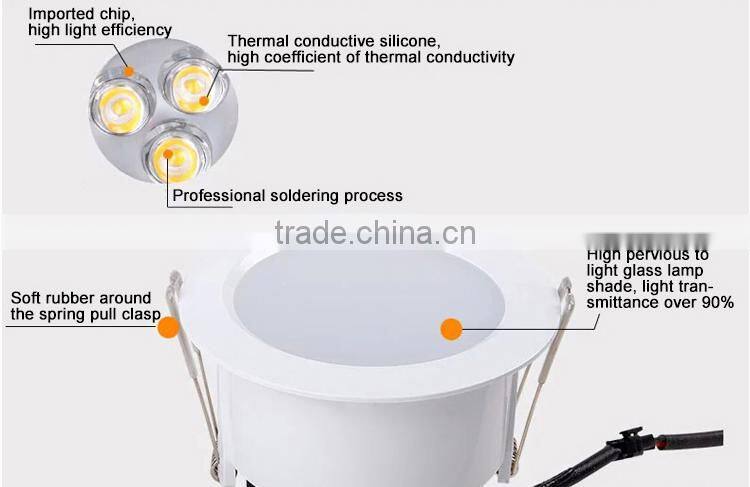

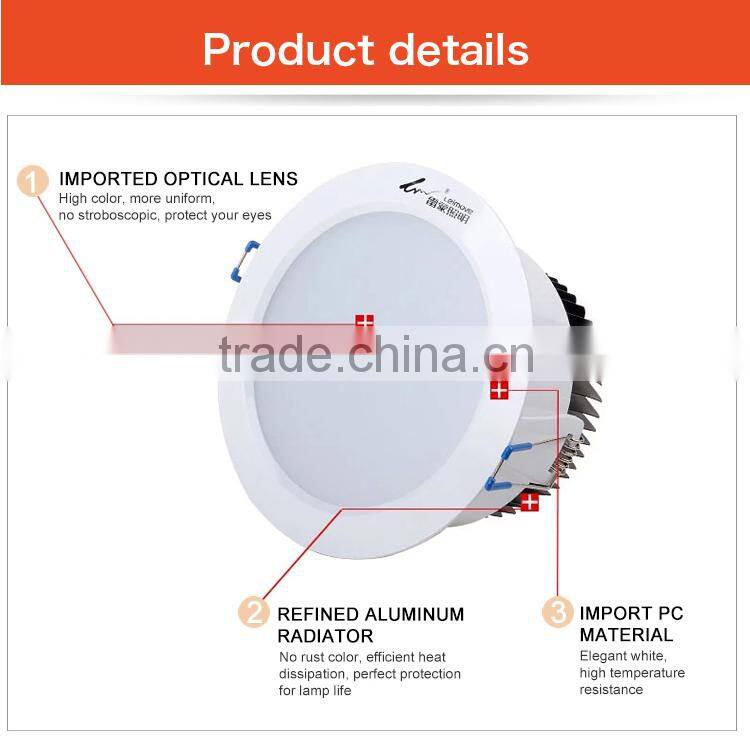

-Using PMMA lens,light uniformity and soft,no glare interference for looking while lighting;
-Using die-cast aluminum heat sink structure,simple and generous appearance,it is more convenient for replacement while it is consisitent with the cut size of regular fluorescent lamps;

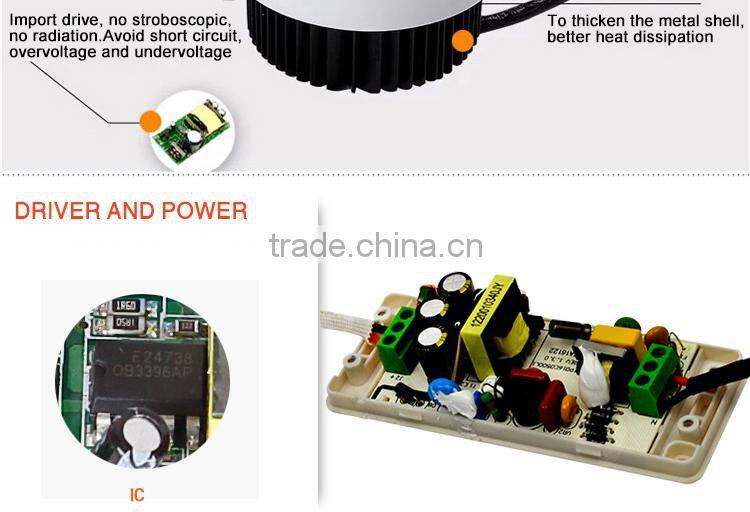

-Using isolation,low voltage constant current driver,with anti-over current, over voltage and output short circuit protection,safe,stable and reliable us age;Can be switched on and off frequently,no flicker,can be connected to emergency device.
high cri
-selecting the high cri led,it creates an comfortable lighting environment;It can be used to various application,realise the color,increase the charm of room. Long life and high reliability -select according to the usual settins for the full temperature range designed to ensure high reliability life,to improve the reliability of the lamp to contribute.
Q: Where is your factory?
A: Henglan Zhongshan, City Guangdong Province.
Q: What kind of certificate you have?
A: All kinds of certificates can be supply based on large purchase quantity.
Q:How long will it take if asking for the samples?
A: General speaking, 3 working days if asking for our regular items.
Q:What is your lead time for the mass products such as 5000 units per item?
A: General speaking, about 20 days after getting down payment and confirmation about the samples.
Q:What is your payment terms?
A: T/T, by cash, western union, or L/C.
Q: What are your market reach throughout the region?
A:Our markets around the world in every corner, we have eight years of experience in foreign trade, our customer base has, we have worked with us in every country buyers, producers and distributors to reach more than 29,000.
Q:What is your main product line is made?
A:We mainly produce led application classes and industrial lighting fixtures. Including daily life indoor lighting.
(led downlight, led spot light, led track light, led flood light, led panel light,led tube,more.
Q:Your factory or trading company?
A:We are a factory, we provide OEM services. Some famous foreign supermarkets and we often collaborate.
Leimove Lighting And Electrical is established local-oriented in 2002 and looking froward to the global market.Since its inception, Leimove have been working for LED lighting & electrical products research and popularization.After years of development, our company has formed a complete set of standard systems in management, technology,quality and service.
R&D:
1. We adopt the international three- dimensional design soft: SolidWorks, user-friendly interface,it can catch the design idea of designer automatically and guide design, modify the staff organization chart.
2. We have 5 structure engineer and two electrical engineer.
3. Our company spent around $800 thousand to research the new products every year.
Contact us to get full catalogue and info! Choose the most convenient way for you.
We warmly welcome friends both at home and abroad to have cooperation with us and give advice.
address: No. 35, Yihui 1st Road, (Sansha) Maohui Industrial Zone, Henglan Town
website:
Tel:0086-760- 22396377
Fax:0086 -760-22320728
We will provide samples before taking double standards price for earnest deposit, after place a quantity order return it back.
