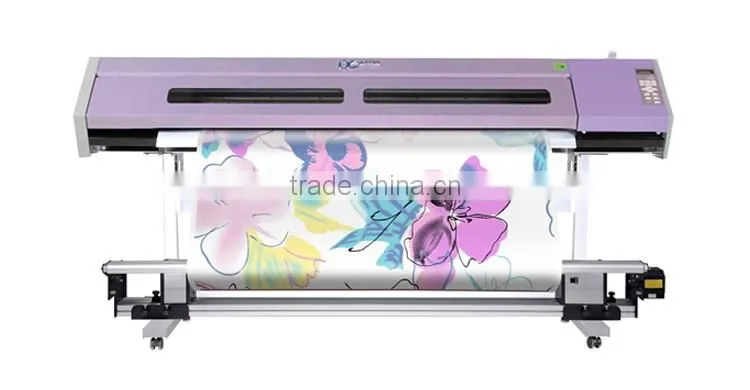

Direct Sublimation Printing Machine

Direct Sublimation Printing Machine thumbnail-1
Direct Sublimation Printing Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, cloths
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Shanghai SD Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Other, cloths
Place of Origin Jiangsu, China
Brand Name ALPHA
Model Number ALPHA TX2901
Usage Cloths Printer, Paper Printer
Automatic Grade Automatic
Voltage 110V/220V
Gross Power 2000w
Dimensions(L*W*H) 2.9m*0.85m*0.98m
Weight 148kg
Certification CE Certificate
After-sales Service Provided Engineers available to service machinery overseas

high speed sublimation printer with dx5 print head



CHAMPION OF STABLE---------

----------- LONG TIME PRINTIN

 PRINTER INTRODUCTION



ALPHA Inkjet Printer presents dramatic progress in both quality and speed. With 8-Lines Independent Ink Supply

System and variable droplet technology, ALPHA printer can realize high speed printing with double 4-color and high

quality output with 8-color printing.




Higher Precision and Mechanical Print Head Adjustment Free

-Automatic Take-up Device (Optional)

-Top-The-Line Standard Original THK Guiding Rail

-High Quality & Long Duration Motor

-8-Line Independent Ink Supply System

-Automatic Cutter

-Adjustable Print Head Height

-Double 4-Color High Speed Production



 FEATURE



Intelligent RIP Software



ALPHA printer comes with the intuitive and highly productive RIP and design editor

Photo Print , ONYX or Maintop RIP software, those RIP imports all popular file formats

like Adobe Illustrator,PDF’s and JPEG´s.



Three-Phase Heating for Eco Solvent Printing



The three independent heating systems can assure the proper temperature of

media to improve the image output, and the after heating can speed up the drying

and boost the efficiency of taking up media.


<img src="/kf/HTB1czcwJFXXXXXUaXXX760XFXXXI/228193608/HTB1czcwJFXXXXXUaXXX760XFXXXI.png" width="164" height="70" style="font-size: 0px; font-style: inherit; color: transparent; width: 164px; height: 70px;" ori-width="687" ori-height="293">



Advanced Electrical Control System



Smart wide voltage ultra-integrated switch energy saving design, 100V240V

adaptive wide voltage, ensure a long timestable operation of the machine.





Flawless Print Quality



Equipped with DX5 print head, using a unique and very efficient ” eclosion ”

function and 7 variable droplet sizes. ALPHA printer can produce flawless

high quality printouts on a variety of medias.



Ink Dot Transformation Technology

3 kinds different sizes of the ink point realization of ink dot transformation
technology

Automatic Cutter

With automatic cutter , you can cut your printed jobs easily
Automatic Cleaning Function

Ensure 24hour printing without worker handle.

Speed Higher Than Single Head Printer

With Single DX5 print head , by coordinating with high quality printer structure,
printing speed raising one times,real high speed 35m2/h(4 pass)



 SPECIFICATIONS

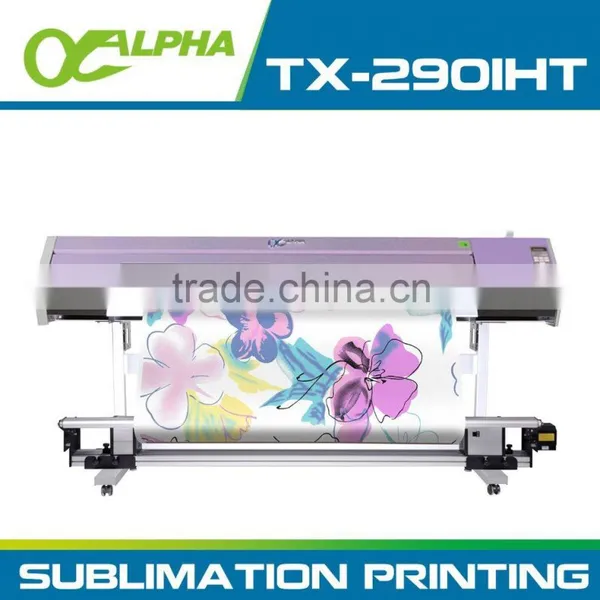

Model TX2901HT
Print Head Double  Head
Priting Technology Piezoelectric Inkjet
Media Width 210-1620mm-1.6M
Media Width Type Roll or Sheet
Thickness Maximum 1.5mm
Roll Weight 40kg
Ink Cartridge Type

Dye subliamtion ink
Capacity 220ml/440ml Refill Cartridge
Color Double 4-Color (CMYK)
Ink Supply Continuous Ink Supply Cartridge
Color Gamut Performance 1670 Million Color
Media Control Automatic Feeding System and Sheet Cutter
Media Sensors Paper Sensor & Width Sensor
Print Head Cleaning Automatic Cleaning and manual cleaning
Programming Language RD-RTL,RD-PJL
Interface USB2.9/HIUSB
Power Requirement During Operation 100V to 240V±10%,50/ 60 Hz
Sleep Mode 100V to 240V±10%,50/ 60 Hz
Power-saving Function Automatic Power Saving
Acousic Noise Leve During Operation ≤65 dB (according to ISO 7779)
During Standby ≤40 dB (according to ISO 7779)
Package Dimension (with stand) 2980mm(W)x850mm(D)x890mm(H) - 1.9M Printer
Weight(with stand) 200kg ( 1.9M )
Power Consumption ≤1500VA
Environment Power On Temperature: 20 to 32°C  Humidity: 35 to 80%RH (non-condensing)
  Power Off Temperature: 5 to 40°C   Humidity: 20 to 80%RH (non-condensing)
Accessories Power Cord, Drain Bottle, Manual



 APPLICATION







 FACTORY SHOW





 OUR SERVICE



24-Hour Online Service



Pre-Sales Service                                                            After-Sales Service

*Inquiry and consulting support                                                    * Training how to install the machine and training use

*Sample testing support                                                                * Engineers availa to service machine overseas

* View our factory                                                                             * One year warranty



 PACKING & DELIVERY



Packing

Size

2980mm(W)*850mm(D)*890mm(H)

Weight

200kg

Details

 on wooden
