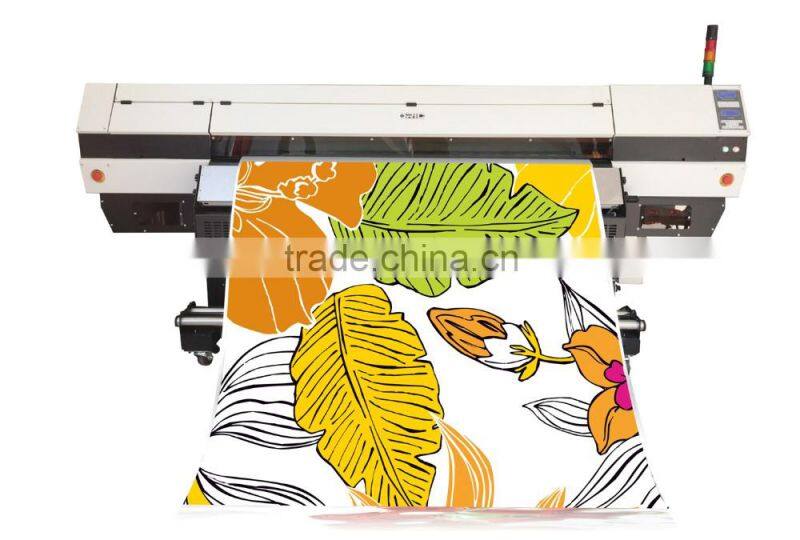

Chinese inkjet printer sublimation machine DX5 printhead
HIGH PERFORMANCEPERFECT COMBINATION ---------
----------- ER18-2 DX5 Pursues Perfection
PRINTER INTRODUCTION
--- High-end design
--- Prefect speed experience
--- Self-developed control system
--- Variety of print configuration
FEATURE
High Speed,High Quality
About the Ricoh Head Excellent Printing Speed
Ricoh head is all steel structure, the head width is 54.1mm and strong corrosion resistance, It can print 24 hours continuously, the life is about 3 to 5 years .
Three-level ink drop control makes reduction degree of the printing image up to 95%.
Independent research of intelligent inkjet technology
This machine use independent research and development of intelligent inkjet technology,Through intelligent control ,
it can make a variety of ink droplets of different sizes.It not only can show you the extreme resolution 1200dpi ,
but also can accomplish the higher quality compared with the same type machines when it print in low resolution .
Variety Of Ink Configuration Show Perfect Performance
ER18 supports variety of ink configuration ,It is equipped with color Lc and Lm to increase the color natural transition and improve
the recognition rate of similar color in the image beside C M Y L. Also , Lk and Lik can increase color control and sense of hierarchy.
High Performance
Independent research and development of modularization negative pressure generating device
Use modularization negative pressure generating device, the error is not more than 0.05Kpa, it is easy to install and solve the problem of
worse stability because of long time using negative pressure generating device. Ensuring the supply capacity under high speed print mode. In addition ,the negative pressure can be used by Degas.
Take-up Device Provide Perfect Experience
ER18 uses material fixed device to complete the process of sublimation paper. It can finish the material axle adjustment , the use of tension stick ensures the material enter into take-up device completely.
CISS Guarantee Printing Continuously
table continue ink supply system uses special algorithm to ensure the stability of ink supply when printing ,it solves the the problem of short of ink because of ink supply
Unique Operation Double-Panel Design
The unique double-panel offers the intelligent and simplified printer control, and holds the shortcut key setting, proceeds the everyday operation without entering into menu. The control boards are equipped with the control buttons to provide duel safeguard for customers.
Humanized Printer Protection Design
Printer is equipped with emergency switch and alarm lamp to guarantee customers to grasp the printing status,meanwhile printer gets the ablility to stop printing jobs in hte emergency situation,operates the protection circuit to keep its performance and consistency.
Humanized Printer Protection Design
All-steel manufacturing,every detail reflects our sincerity.Cooperate with international brand like THK,IGUS,which lay a foundation for stability and durability
Model |
ER18-2 DX5 |
|
Print Head |
Double DX5 heads |
|
Maintenance |
AutoClean,AutoMoisture |
|
Resolution |
600dpi;900dpi;1200dpi |
|
Max Printing Speed |
160m²/h |
|
Ink |
Type |
Sublimation Ink |
Color |
CMYK+LC+LM+LK+LIK; |
|
Capacity |
5L |
|
Media |
Max Width |
1800mm |
Max Thickness |
2mm |
|
Pipe Internal Diameter |
50-100mm |
|
Feeding Device |
Max Weight 80kg |
|
Take-up Device |
Max Weight 80kg |
|
Feeding Syestem |
Roll-to-roll |
|
Printing Mode |
Bi-direction/Uni-direction |
|
Port |
USB 2.0 |
|
Computer |
RAM |
4 GB |
Installation Space |
300M |
|
Power Supply |
AC 220-240V 50HZ |
|
Environment |
Temperature |
25℃-35℃ |
Humidity |
35-65%Rh |
|
Dimensions(LxWxH) |
3205mmx1100mmx1430mm |
|
Weight |
700kg |
|
APPLICATION
FACTORY SHOW
OUR SERVICE
24-Hour Online Service
Pre-Sales Service After-Sales Service
*Inquiry and consulting support * Training how to install the machine and training use
*Sample testing support * Engineers availa to service machine overseas
* View our factory * One year warranty
PACKING & DELIVERY
|
|
Packing |
|
Size |
3205mm(L)*1100mm(W)*1430mm(H) |
|
Weight |
700kg |
|
Details |
on wooden |
|
