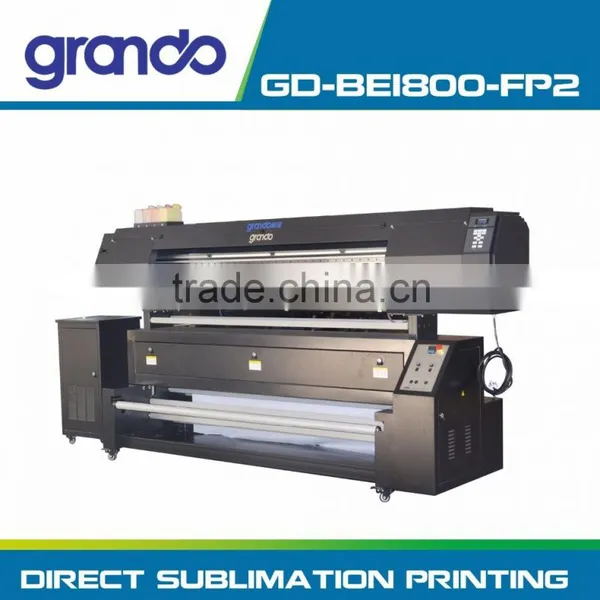

Inkjet Direct Sublimation printing machine
- 100 Set / Sets per Month
- shanghai
- T/T Credit Card PayPal
- 2 stamp heads Automatic Hot Stamping Machine for cards
- Card Automatic Hot Stamping Machine for id cards
- Hongyuan Wood Grain Print Transfer for Door Hot Transfer Sublimation Lamination
- Fully automatic pneumatic double station Double side heat press
- aluminum profile wood grain transfer machine
- 8 In 1 Machine-Ce Certificate
Product Details
Condition: | New | Plate Type: | Other, cloths | Place of Origin: | Jiangsu, China |
Brand Name: | GRANDO | Model Number: | GD-AE1800-FP2 | Usage: | Cloths Printer |
Automatic Grade: | Automatic | Voltage: | 110V-240V | Gross Power: | 3kw |
Dimensions(L*W*H): | 3350*940*1560 | Weight: | 500kg | Certification: | CE Certificate |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

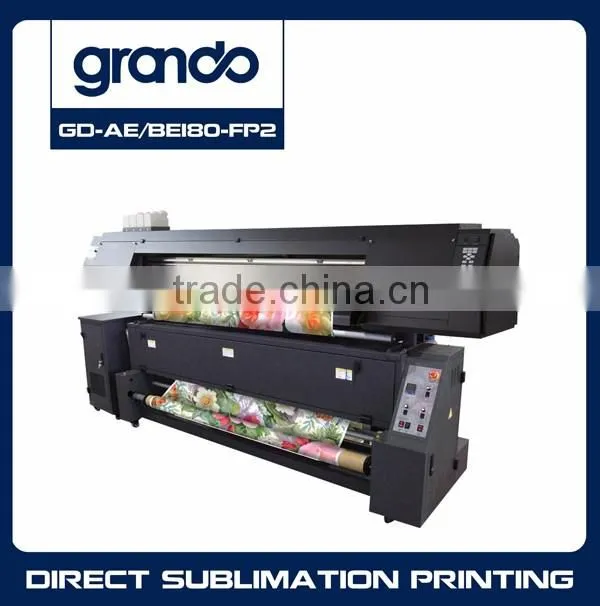

DIRECT SUBIMATION PRINTER---------
----------- GD-AE1800-FP2
PRINTER INTRODUCTION
FEATURE
Piezoelectric Print Head Variable Ink Droplet
With double Epson DX5 print heads of parallelogram layout, as well as 1440 nozzles for each print head, performs excellently in higher speed and high quality output in 1440dpi.
Min 3.5pl Variable Ink Droplet

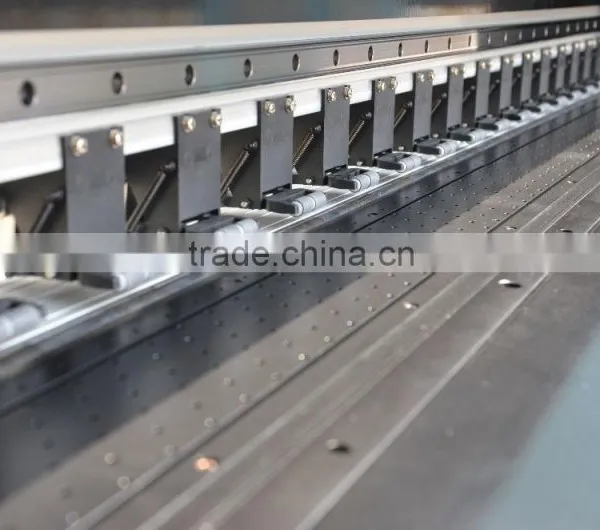

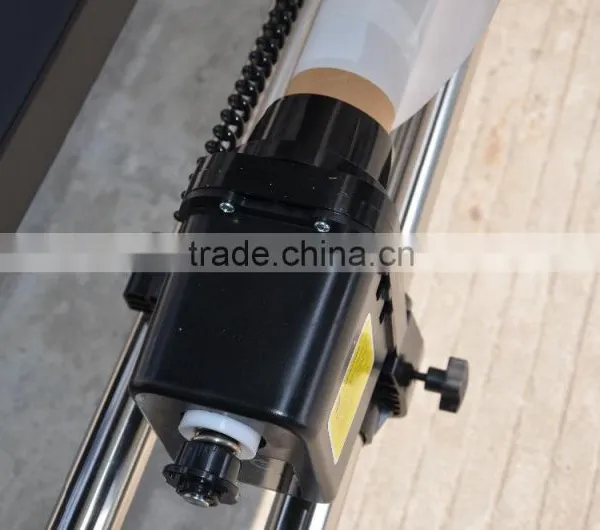

Adopts media fixing device to ensure smooth media feeding and rolling, at the meanwhile, the rolling bar is djustable anytime, and the media tension bar enables media to enter rolling bar smoothly and completely by enhancing the tension of media.
User Friendly Mechanical Design
Firm structure enables high speed printing without shake. Adjustable printer stand and feet ensures printer level. Meanwhile, emergency stop button and anticollision device assist customer to make sure printer’s stablity and performance in emergency situations.

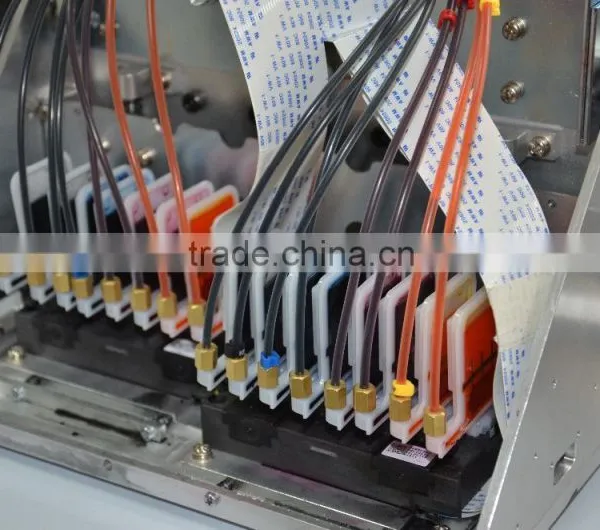

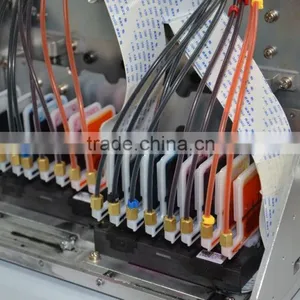

Stable Bulk System Ensures Amazing Printing Speed
Ink cartridges of clamping slot type is easy to install and replace, bulk system ensures continuous smooth ink flow and stable printing. Besides, PWC device assists the bulk system to protects the nozzles from being blocked.
High Stablity, High Durablity
All-steel struction, igorous and precise manufacturing process even for a small screw, together with international brands such as THK, ensure the stablity and durablity.
Model | GD-AE1800-PT2 |
Printing Method | Piezoelectric Print Head |
Print Head | Double DX5 Head |
Ink | Subimation Ink |
Max Printing Width | 182cm |
Printing Resolution | 540dpi,720dpi,1440dpi |
Printing Mode | ,4pass,6pass,8pass, |
Printing Speed | 38m²/h 24m²/h, 15m²/h |
Ink Capacity | 1500cc per color |
Heating System Three Phase | Yes |
Dry System | Standard intelligient infrared ay heating/fan system |
Automatic Media Feeding/Rolling System | Standard Configuration |
Environment | Temperature 15-35℃ Relative Humidity 40%-65% |
Dimension(W*D*H)Weight | 3350*940*1560 500kg |
APPLICATION
FACTORY SHOW
OUR SERVICE
24-Hour Online Service
Pre-Sales Service After-Sales Service
*Inquiry and consulting support * Training how to install the machine and training use
*Sample testing support * Engineers availa to service machine overseas
* View our factory * One year warranty
PACKING & DELIVERY
| Packing | |
Size | 3350mm(W)*940mm(D)*1560mm(H) | |
Weight | 500kg | |
Details | on wooden |
