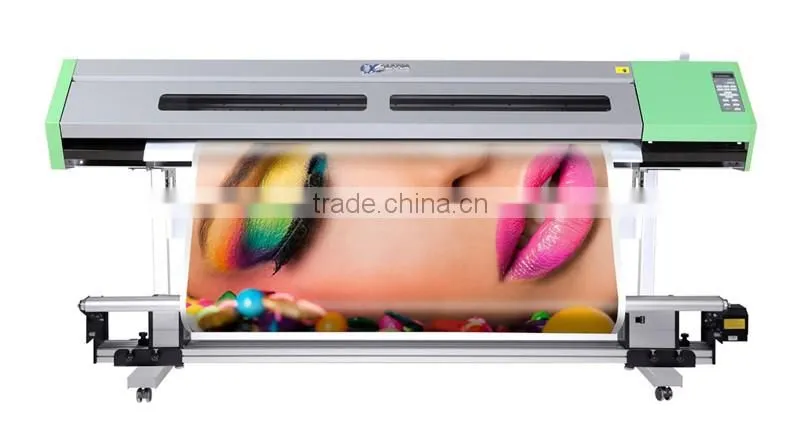

Help Center1.6m ALPHA Inkjet Printer 5113 Print Head
Related Products
-
1.6m Alpha Eco Solvent Printer for Sale With DX5 Waterbased PrintheadNegotiableMOQ: 1 Set -
ALPHA Jet Printer From China Ecosolvent Printer DX5 PrintheadNegotiableMOQ: 1 Unit
-
1.6m Digital Indoor Printing Waterbased Machine With DX5NegotiableMOQ: 1 Set
-
DX5 Digital Textile Printing Machine Subliamtion Printer DX5 HeadNegotiableMOQ: 1 Unit
-
1.6m 8 Colors Digital Sublimation Plotter DX5 HeadNegotiableMOQ: 1 Unit
CHAMPION OF STABLE---------
----------- LONG TIME PRINTING
| Model | AJ-1603W | |
| Print Head | Single Ricoh5113 Head | |
| Priting Technology | Piezoelectric Inkjet | |
| Media Width | 210-1620mm-1.6M | |
| Media Width | Type | Roll or Sheet |
| Thickness | Maximum 1.5mm | |
| Roll Weight | 40kg | |
| Ink Cartridge | Type | Sublimation Ink |
| Capacity | 220ml/440ml Refill Cartridge | |
| Color | Double 4-Color (CMYK) | |
| Ink Supply | Continuous Ink Supply Cartridge | |
| Color Gamut Performance | 1670 Million Color | |
| Media Control | Automatic Feeding System and Sheet Cutter | |
| Media Sensors | Paper Sensor & Width Sensor | |
| Print Head Cleaning | Automatic Cleaning and manual cleaning | |
| Programming Language | RD-RTL,RD-PJL | |
| Interface | USB2.9/HIUSB | |
| Power Requirement | During Operation | 100V to 240V±10%,50/ 60 Hz |
| Sleep Mode | 100V to 240V±10%,50/ 60 Hz | |
| Power-saving Function | Automatic Power Saving | |
| Acousic Noise Leve | During Operation | ≤65 dB (according to ISO 7779) |
| During Standby | ≤40 dB (according to ISO 7779) | |
| Package Dimension (with stand) | 2680mm(W)x850mm(D)x790mm(H) - 1.6M Printer | |
| Weight(with stand) | 198kg ( 1.6M ) | |
| Power Consumption | ≤1500VA | |
| Environment | Power On | Temperature: 20 to 32°C Humidity: 35 to 80%RH (non-condensing) |
| Power Off | Temperature: 5 to 40°C Humidity: 20 to 80%RH (non-condensing) | |
| Accessories | Power Cord, Drain Bottle, Manual | |
| |
Intelligent RIP Software ALPHA printer comes with the intuitive and highly productive RIP and design editor Photo Print , ONYX or Maintop RIP software, those RIP imports all popular file formats like Adobe Illustrator, PDF’s and JPEG´s. |
|
Three-Phase Heating for Eco Solvent Printing The three independent heating systems can assure the proper temperature of media to improve the image output, and the after heating can speed up the drying and boost the efficiency of taking up media. | |
|
Advanced Electrical Control System Smart wide voltage ultraintegrated switch energy saving design, 100V240V adaptive wide voltage, ensure a long timestable operation of the machine. | |
|
Flawless Print Quality Equipped with DX5 print head, using a unique and very efficient ” eclosion ” function and 7 variable droplet sizes. ALPHA printer can produce flawless high quality printouts on a variety of medias. | |
|
Ink Dot Transformation Technology
3 kinds different sizes of the ink point realization of ink dot transformation
technology
| |
|
Automatic Cutter
With automatic cutter , you can cut your printed jobs easily
| |
|
Automatic Cleaning Function
Ensure 24hour printing without worker handle.
| |
|
Speed Higher Than Single Head Printer
With single Ricoh 5113 print head , by coordinating with high quality printer structure,printing speed raising one times,real high speed m2/h(4 pass)
|
We mainly focus on researching and developing high-speed and high-resolution inkjet printers and control system, our printers and accessories have the honor to earn widespread acclaim by the firmly support of the top R&D team and our own technology. Major products are E series water-based printers, R series UV printer, O series flatbed printers etc. With a strong R&D team, outstanding production management, strict quality control as the carrier, and long-term cooperative partnership with the Ricoh, Agfa, Phoseon and other international well-known enterprises, we provide the most flexible and best service for our customers. We are always adhering to the Environment Protection and People-oriented; aspire to commence new future by our effort on service and products.
24-Hour Online Service
Pre-Sales Service After-Sales Service
*Inquiry and consulting support * Training how to install the machine and training use
*Sample testing support * Engineers availa to service machine overseas
* View our factory * One year warranty
