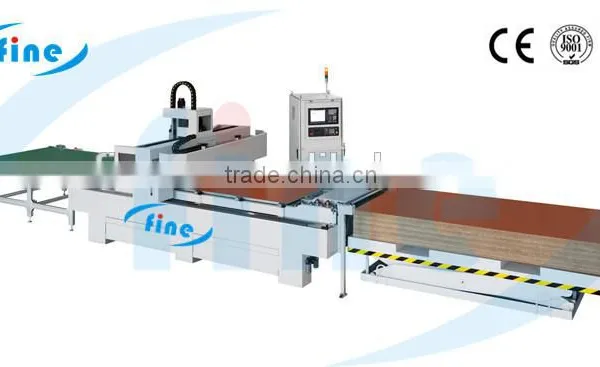

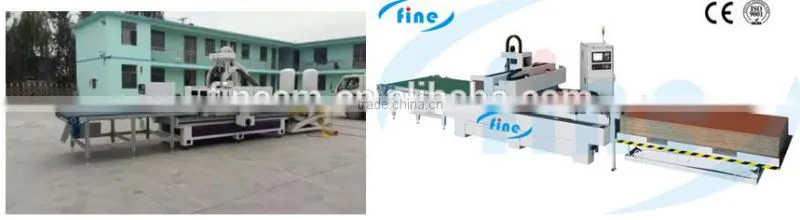

Factory directly auto-feeding auto- unloading drilling China Jinan cnc cutting drilling router machine manufacturer

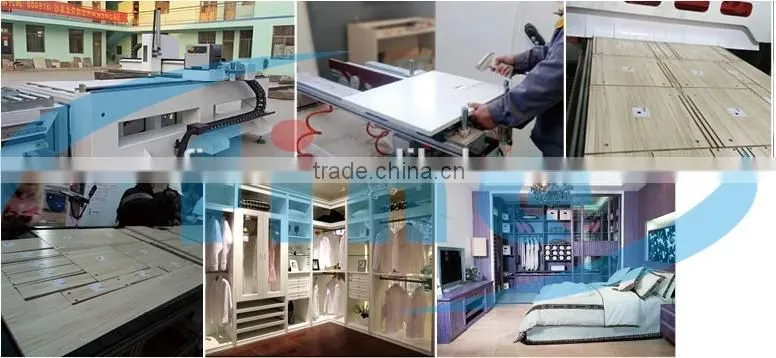

Suitable for wooden doors, cabinet doors, panel furniture and other wood door job, can do board cutting, grooving, drilling, engraving and other functions.
Multi-function CNC router cutting Machine Features:
1.Using for cutting, grooving, drilling, engraving and other functions.
2.Wood panel automatic positioning,easy and save labour.
3.Both sides of the board can be perforated and grooved.
4.Three heads automatic intelligent ATC, high efficiency,high accuracy.
5.Drive very fast, 6kw high-power air-cooled spindle motor, big power, low noise, low fault rate.18mm particle board cutting at speeds up to 20m/min.
6.Good compatibility, compatible with a variety of panel furniture software, Door plank automatically optimize typesetting software.
7 . Adopts whole steel structure,using high temperature tempering destressing to precision machining, guarantee the machine service life
8.Imported precise helical wheel,helical tooth,high precision and fast speed
9.Automatic alarm,automatic oiling,automatic tool-setting
Parameter of wood panel cnc router cutting machine | |
X,Y,Z working area |
1300*2500*200mm |
X,Y,Z Traveling positioning accuracy |
±0.02/300mm |
Lathe bed frame |
T structure heavy lathe bed |
X,Y Structure |
Rack |
Z Structure |
Taiwan TBI Ball Screw |
Table surface |
Vacuum table |
motor |
Japan Yaskawa servo motors |
Working speed |
0-80000mm/min |
Spindle power |
Italy 6.0KW air cooling spindle 4.5KW air cooling spindle*2 |
Spindle speed |
0-18000RPM/min |
Spindle inverter |
Delta&Fuling inverter |
Working voltage |
AC380V/220V |
Operation system |
Taiwan syntec control system |
Command language |
G code |
X,Y Resolution |
<0.02mm |
Running environment temperature |
0-45°C |
Dust collector |
yes |
