Specifications
wood cnc router machine1)4x8ft table
2)Main parts are imported
3)compatible with various CAD/CAM
4)2 years warranty
2015 china supplier affordable price cnc engraving cutting machine 3D wood cnc router machine
for solidwood,MDF,aluminum,alucobond,PVC,Plastic,foam

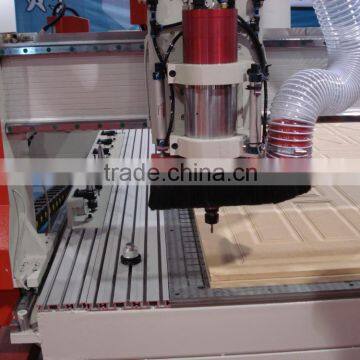

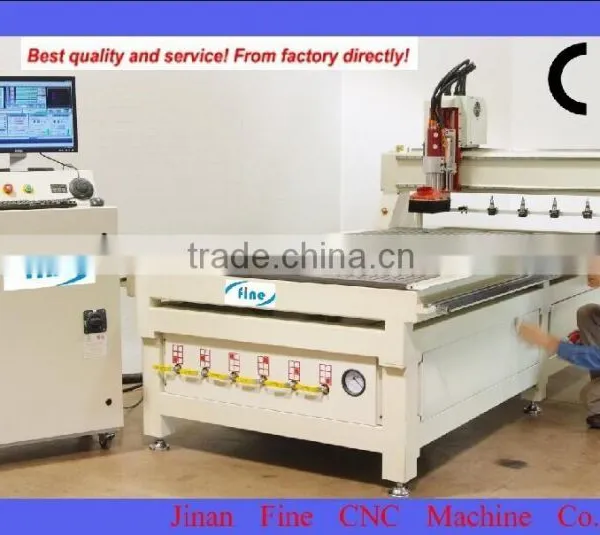

1. Introduction of F-R1325 CNC Router /3D cnc router
♦ It can be used for 2D&3D engraving and cutting hard wood, rosewood, insulation, plastic and chemical, PCB,PP, PE, PVC, MDF, acrylic, aluminium, brass and so on.
♦ It is qualified for mass-producing funiture with the vacuum holding table and dust collector.
2. APPILCATION
| Industry | Products |
| Furniture Industry | 1) doors 2) cabinets 3) tables 4) chairs |
| Advertising Industry | 1) signage 2) Logo 3) Badges 4) display board 5) meeting sign board 6) billboard |
| Artwork and Decoration | 1)wood crafts 2)gift box 3)jewelry box |
3. ADVANTAGES
♦ Overall seamless big steel tube structure. Processed by high tempering treatment and reliving of internal pressure, ensure the bathe more rigidty, reliability and durability.
♦ Top-quality world famous brand components, to make the machine high-precision and high-efficiency. Top quality spindle, Delta inverter, TBI ball screw, DSP control system and so on,
♦ Humanized and beautiful designing.
Beautiful appearances and high-quality paintingmake the machine beautiful and avoid rusting.
♦ Easy and safe operation and low maintenance cost.
With memory function in case of power off.
The only consumable part of the machine is the bit.
Free training in our factory.
♦ Many optional configuration and OEM service available.
We produce various machines as per your request.
3. PARAMETERS
| No. | Description | Parametrs |
| 1 | X,Y,Z Working Area | 1300x2500x200mm (4.3'x8.2'x0.7') |
| 2 | Table Size | 1360x2940mm (4.5'x9.6') |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
| 4 | X,Y,Z Repositioning Accuracy | ±0.01 mm |
| 5 | Table Surface | Vacuum and T-slot comnbined(option:T-slot table) |
| 6 | Frame | Steel Tube Welded Structure |
| 7 | X,Y Structure | Rack and Pinion Drive, Hiwin Rails Linear Bearings |
| 8 | Z Structure | Hiwin Rails Linear Bearings and Ball Screw |
| 9 | Max. Power Consumption | 2.0kw(without spindle) |
| 10 | Max. Rapid Travel Rate | 33,000mm/min |
| 11 | Max. Working Speed | 25,000mm/min |
| 12 | Spindle Power | 3.0/4.5/5.5/6/7 KW |
| 13 | Spindle Speed | 0-18000 RPM |
| 14 | Drive Motors | Stepper System |
| 15 | Working Voltage | AC380V, 50/60Hz, 3PH (Option:220V) |
| 16 | Command Language | G Code |
| 17 | Operating System | DSP System (Options: Ncstudio/ Mach3 PC Software) |
| 18 | Computer Interface | USB |
| 19 | Flash Memory | 128M (Flashdrive) |
| 20 | Collet | ER25 |
| 21 | X,Y Resolution | < 0.01mm |
| 22 | Software Compatibility | Type3/ Ucancame V9 software (Option: Artcam Software) |
| 23 | Running Environment Temperature | 0°-45° |
| 24 | Relative Humidity | 30%-75% |
| 25 | Packing Size | 3200x2100x1980mm |
| 26 | N.W. | 1450kg |
| 27 | G.W. | 1670kg |
| 28 | Optional Parts | Air Cooling Spindle or Water Cooling Spindle |
Syntec Control System | ||
| Dust Collector | ||
| Vacuum Pump | ||
| Rotary Device | ||
| Mist-cooling System | ||
| 850W Yaskawa/ 800W Panasonic Servo Motor |
Samples
Certification
Guarantee & After-sales service
- Two year warranty under normal use and we supply maintenance for free.
- 24 hours technical support by phone, E-mail, skype, msn
- User-friendly English manual and Video CD is available for machine using and maintaining
- Free trainnings to ensure that you can master the operation of the machine.
Customers visit
Overseas agents
Questions and answer:
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of machine.
Yes,we have
Q3.If we don’t know how to use the machine, can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you
can use machine freely.And if
you are busy ,we will send specialized engineer to your country,but you have to bear some fee,like
tickets and hotel and meal.
Guarantee & After-sales service
- Two year warranty under normal use and we supply maintenance for free.
- 24 hours technical support by phone, E-mail, skype, msn
- User-friendly English manual and Video CD is available for machine using and maintaining
- Free trainnings to ensure that you can master the operation of the machine.
Payment terms
- T/T in advance.
- L/C is allowed if the amount is big.Please issue the L/C draft for our confirmation first.
- Other kinds of payment we should conside if acceptable for us according to the amount.
Delivery time
- Standard specifications machines we usually take within 7 working days.
- Non-standard models we promise won’t spend more than your expected days.
Looking for distributors all over the world. OEM Service Offered! Design Service Offered !! Buyer Label Offered !!! Give us a chance, let us win-win.
