Plexiglass Board Edge Polisher Polishing Machine
- 700 Set / Sets per Month
- Qingdao Tianjin or ay port in China
- Credit Card
- High Efficiency For Machine Mass production Polyester Ribbon Bowknot
- High Efficiency Machine Mass production Ribbon Bowknot Manufacturer
- High Efficiency For Machine Mass production Cheap Ribbon Bowknot factory
- Guangzhou High Point customization coffee roaster machine vacuum forming machine factory machine
- Guangzhou High Point 30 year experience corian furniture vacuum forming machine best service
- Guangzhou High Point global automation corian vacuum forming machine made in china
Product Details
Place of Origin: | Shandong, China | Brand Name: | Fine | Model Number: | F-P1300 |
Type: | Angle Polisher | No-Load Speed: | 4600r/min | Rated Voltage: | 380V or 220V |
Rated Input Power: | 1.1KW | Dimensions: | 2650mm*740mm*320mm | Wheel Diameter: | 20cm |
Frequency: | 50-60Hz | Weight: | 1390KG |
Product Description
Plexiglass Board Edge Polisher Polishing Machine
Plexiglass Board Edge Polisher Polishing Machine
Working videos online:
Application:

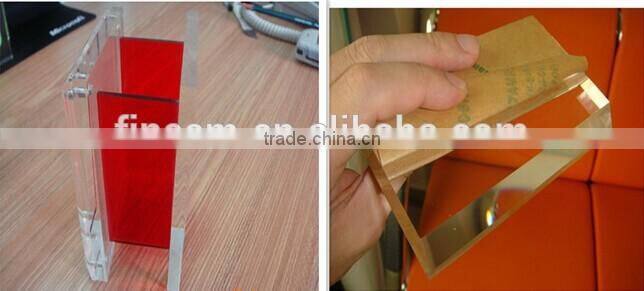

It is used to polish acrylic, plexiglass, organic glass etc. The workpiece surface polished by the machine is quite smooth same as mirror finish.

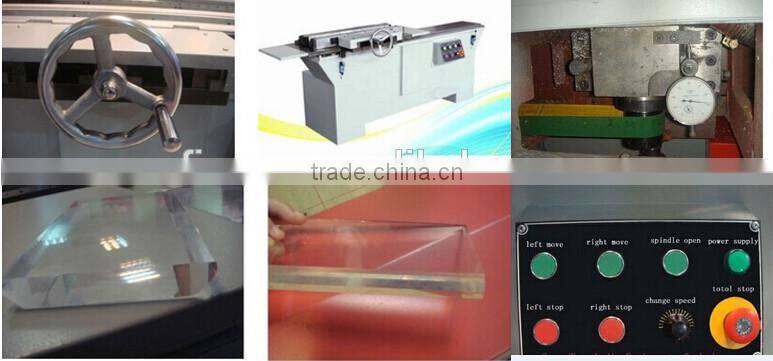

Feature:
1. After polished by the machine, the acrylic surface is smooth like mirror, no bubble or other deficiency which are caused by traditional polishing mode.
2. High work efficiency and high polishing quality, save labor cost and producing procedure.
3. High polishing precision. The cutting depth can be adjustable and controlled by dial indicator, easy operation.
4. Equipped with strong power dust colletor, no dust or splash during working so to avoid abrasive powder created by traditional cloth wheel polishing machine.

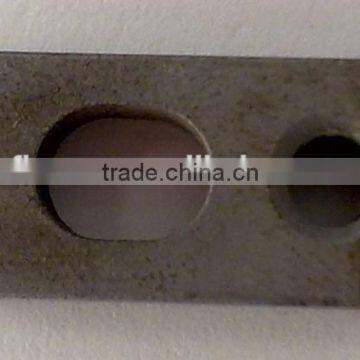

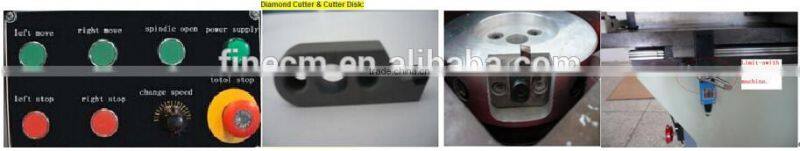

5. Cutting tools are durable and reliable.
Specification:
Model |
F-P1300 |
Max.polishing length |
1300mm (51.2inch) |
Max.polishing width |
85mm (3.34inch) |
Cutting depth |
0-1mm |
Quantity of diamond tools |
2 pieces |

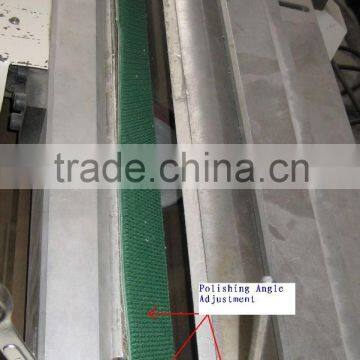

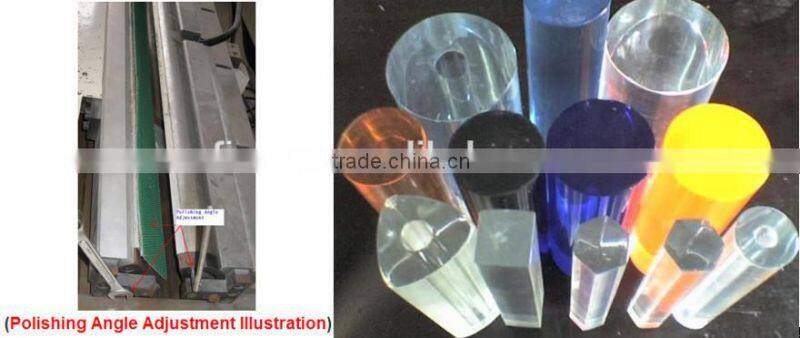

Polishing degree |
0-45 degree |
Spindle power |
1.1KW |
Spindle speed |
4600rpm |
Feeding motor |
0.2KW |
Dust extractor opening |
60mm |
Machine voltage |
380V/220V, 50-60Hz |
Machine dimension |
2740x700x900mm |
Package dimension |
2840x880x1100mm |
Gross Weight |
1390kg |

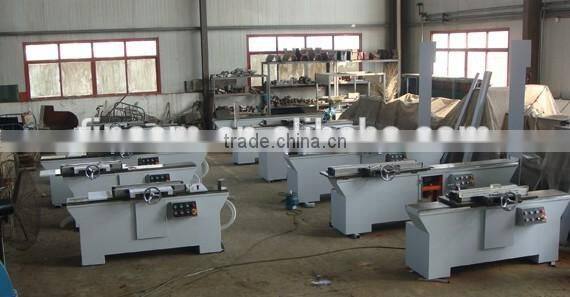

Machines in workshop
We are in exhibition
Warranty:
1>2 years dating from you receiving the machine.
2>During warranty period, if some part is broken due to manufacturing defect, we will send you new part to replace by free cost and free shipment.
1. Can this machine polish longer material than 1300mm?
Sorry, it can not.
2. What is the lifespan of the diamond tools?
About 800 hours.
3. Can I polish the diamond tools by myself?
Normally,no.
4. Is it easy to operate?
Yes, very easy to operate. The machine only has 8 buttons.
Besides, we will give detailed operating video with the machine.
