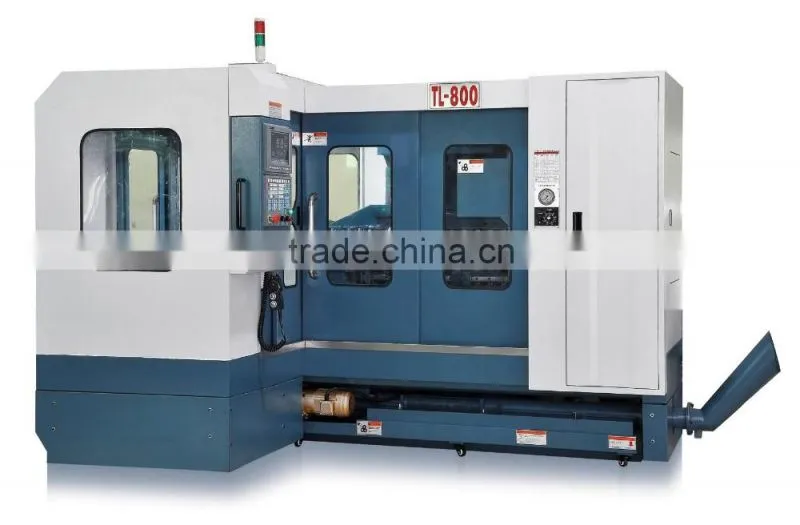

Hot selling High precision Simple operation Lower price CNC Deep Hole Drilling Machine TL-800 with Water trasport hole
Features
- Good fuselage steel,high machining accuracy,small occupation area,simple operation
- Particularly suitable for small and medium-sized mold thimble hole and water transpor hole
Specification:CNC Deep Hole Drilling Machine TL-800
| Model | TL-800 |
| Number of drill spindle | Uniaxial |
| Inner diameter of drilling | 2.5-30 mm |
| Directional maximum depth of drilling | 800 mm |
| Size of working table | 900*700 mm |
| Displacement of X-axis | 800 mm |
| Displacement of Y-axis | 600 mm |
| Displacement of Z-axis | 900 mm |
| Drilling cutting feed rate | 10-250 mm/min |
| Maximum rotating speed of principal axis | 7000 rpm |
| Principal axis motor | AC Servo 7.5 KW |
| Moving the motor from right to left on work table (X) | AC Servo 2.0 KW |
| Moving the motor from up to down on principal axis (Y) | AC Servo 2.0 KW |
| Moving the motor from front to back on principal axis (Z) | AC Servo 1.5 KW |
| Pressure of cutting pressure pump | 80 kgf/cm² |
| Oil mass of oil pressure pump | 6-60 litre/min |
| Capacity of cutting oil tank | 600 litre |
| Load capacity of working table | 5000 kg |
| Machine net weight | 6500 kg |
| Machine power | 23 KW |
| Machine size (L*W*H) | 4700*3300*2200 mm |
Accessories
1.Machinery main configuration
Linear guideway
Spindle
Ballscrew
Bearing
Axis servo drive
2.Machinery optional accessories
FANUC operating system
Mitsubishi operating system
Grinding machine
Strong deoiling machine
Precision guide sleeve
Cutting oil/Lubricating grease
Gun drill
After-sales Service:
Warranty is a year. Parts are free of charge to be offered during this period. Oversea service need to charged extra in and out of warranty.
Our development team

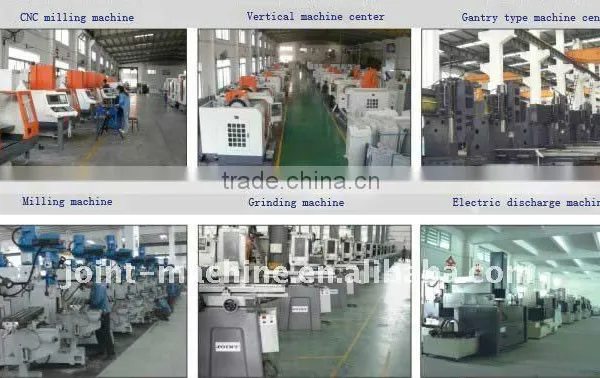

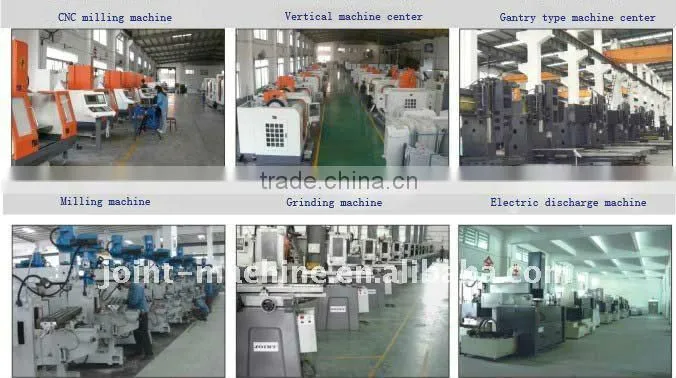

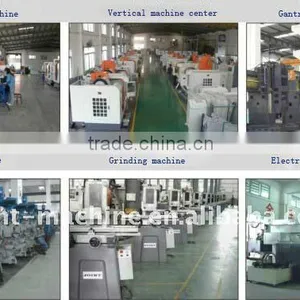

Our production workshop
Our certificate of honor
- There are 8 Intellectual property rights,5 the patent.
- In 2008, Our own brand "JOINT" has been the top quality machine’s signal in domestic sales JOINT also has been recognized as "Guangdong Famous Brand".
- In 2008, Milling machine was recognized as "TOP 10 Famous Brand of Milling Machine" in China.
- In 2011,our company has been recognized as "national grade HI-Tech Enterprise".
- The company set up a ISO9001:2000 quality guarantee system.
-
Our product through "the country machine quality supervision and inspection center" certification testing.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-15days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: 30% in advance.and the rest payment should pay before delivery.
Q: How many years have your company established?
A: 20 years, our company built in 1995.
