Specifications

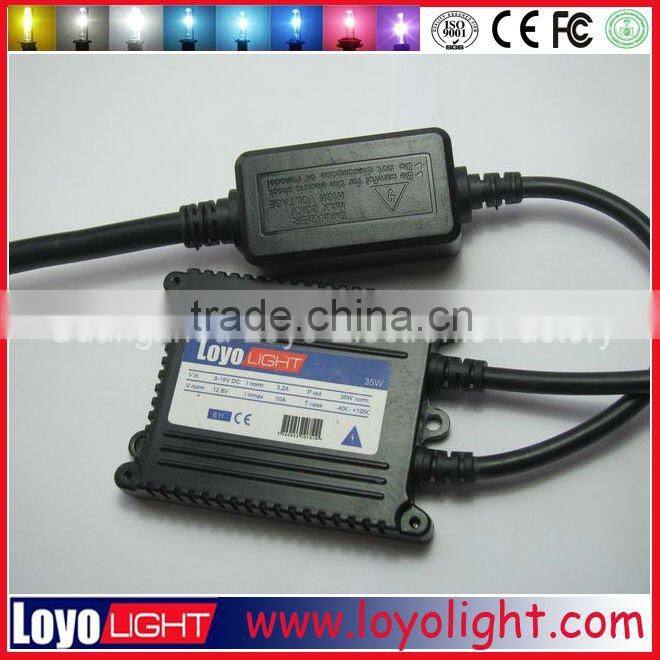

xenon ballast,hid slim ballast,electronic ballast for hid 35w bulbsHid:12V35w
Hid:slim ballast
Hid:Factory HID
Hid:Fail<1%
xenon ballast,hid slim ballast,electronic ballast for hid 35w bulbs
Feature
Power: 35W
1) Input Voltage Range DC9V~16V
2) Starting Voltage DC12.8V
3) Input Current 5.5A
4) Max. In-rush Current 15A
5) Output Power 30W-32W
6) Output voltage AC85V±15V
7) Output Frequency 260Hz~280Hz
8) Efficiency: ≥84%
9) Ignition pulse - Typical peak Voltage 23kV Typ. 1s
10)Cooling method - Natural cooling
11)Input Protection, Under voltage protection at 6V±1V
12)Over voltage protection at 34.5V±1V
13)Input connection-reverse protection
14)Output Protection, Short circuit protection between two outputs
15)Open circuit protection between two outputs

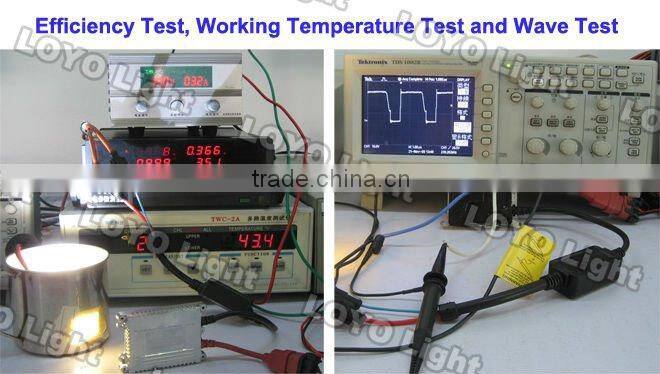

Ballast Technology
Open circuit protection test |
<2s |
Short circuit protection test |
<1s |
Short voltage protection test |
8.5±0.5V |
Over voltage protection test |
19.5±0.5V |
Flash impact test |
no flashing |
Surface temperature |
Less than 70°C |
Note: under normal circumstance

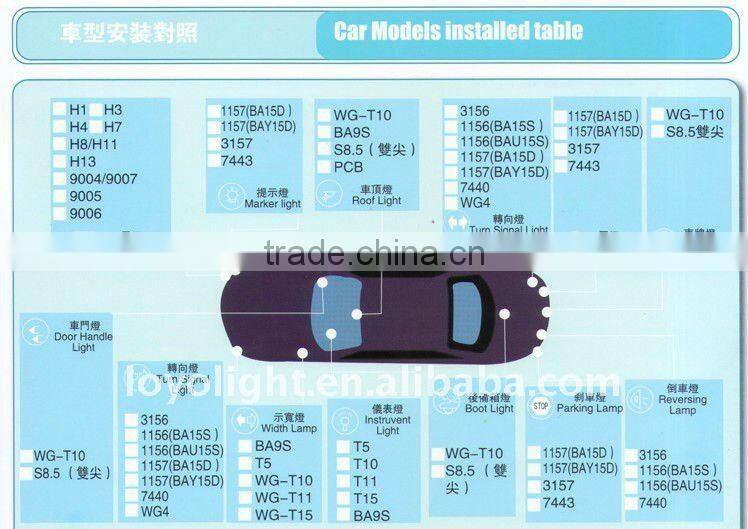

Ballast for Bulbs
HID lamps types: 35W 55W 70W 100W | |
Single bulb |
H1,H3,H4,H7,H8,H9,H10,H11,H13,9004,9005,9006,9007,880,881,D1S/R/C,D2S/R/C, D3,D4 |
High halogen and low xenon bulb |
H4/L,9004/L,9007/L,H13/L |
High xenon and low halogen bulb |
H4/H,9004/H,9007/H,H13/H |
Bi-xenon bulb |
H4/Bi-xenon, H13/Bi-xenon, 9004/Bi-xenon, 9007/Bi-xenon |
Motorcycle bulb |
H6-M |
Advantage for 35W Xenon Ballast
1.As high as 35W power supply, greatly reducing vehicle power system load, the power loss save 50%
2.Quick and safety ignition, internal voltage protection.short-circuit protection
3.high reliability, defective rate<1%, efficacy>83%
patible with different bulb types, fast dynamic response

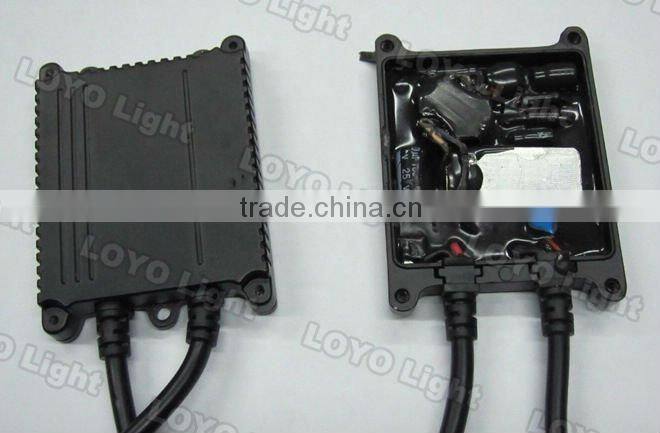

5.High performance of insulation, waterproof and quake-proof: the circuit boards are enveloped by silicone (only High End ballasts will use silicone in insulation);
The kit includes
2x HID Bulbs
2pcs Xenon Ballast
Mounting hardware and appropriate hid accessories.
One year warranty
Service
1,profession: 5 years car light professional manufacturer
2,reliability: alibaba VIP approved. All product 100% full test before ship out
3,information:we will reply you as soon as we can, even small questions
4,after service: When find goods bad, show us photos, we will send new ones to you next order within warranty.
Know more about us
Sample order details
MOQ 10pcs
Sample order 3-5 days after get payment, have stock ship within 2-3 days.
Payment: L/C, T/T, Paypal, Western Union.
shipment: DHL, UPS, FEDEX, EMS.
packing:color box or central package
Certificate
Guangzhou Loyo Electronic Factory, offers a superior line of ballast technology.
