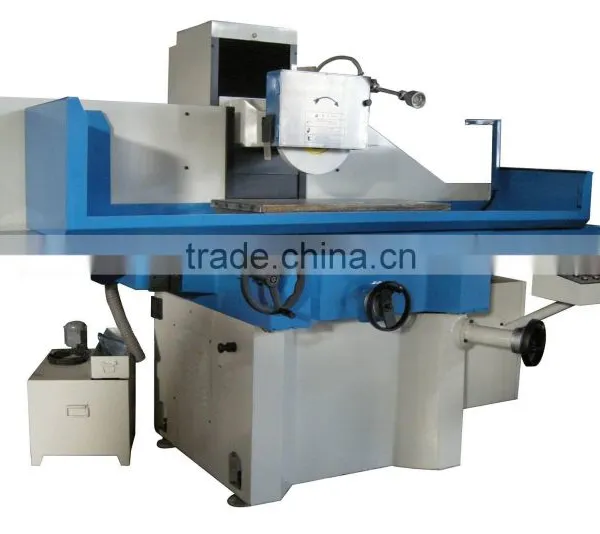

5010AHR Surface Grinding Machine
Features:
1.Taiwan grinding head.
2.CE certificate.
3.Mehanite cast.
4.OEM manufacturer.
5.Twice scraped slide way,which could assure the accuracy of the machine.
6.High quality electric components.
7.Radius tolerance of spindle<=0.002mm,vertical value of ram slide way<=0.005mm,processing accuracy<=0.005mm.
Specification:Grinding machine 618M
| Model | 5010AHR |
| Table size | 1000*500mm |
| Table travel(Longitudinal) | 1150mm |
| Table travel(Cross ward) | 510mm |
| Max.Distance from spindle to table | 600mm |
| Spindle (Rotation speed) | 1450rpm |
| Spindle (Rated power) | 10HP |
| Auto feed of vertical handwheel (1Rev.) | 0.4 |
| Auto feed of vertical handwheel (1Div.) | 0.002 |
| Grinding wheel size | DIA355*(20-45)*127mm |
| Magnet chuck size | 150*350mm |
| Dimension | 2400*4000*2010mm |
| Net weight | 3550kg |
Accessories:
1.Standard accessories:
Coolant system or dust clean
Working light
Tool and toolbox
Operation manual
2.Optional accessories:
5UM DRO
1UM DRO
Magnet chuck

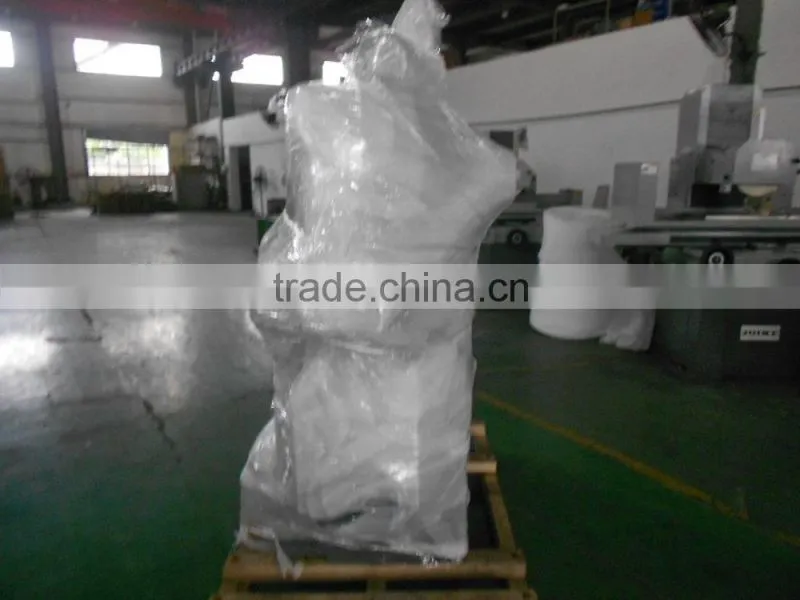

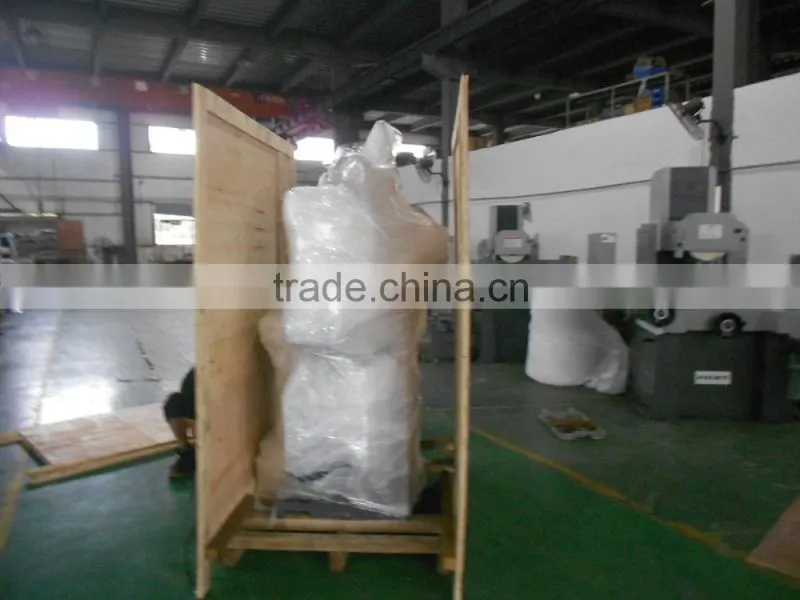

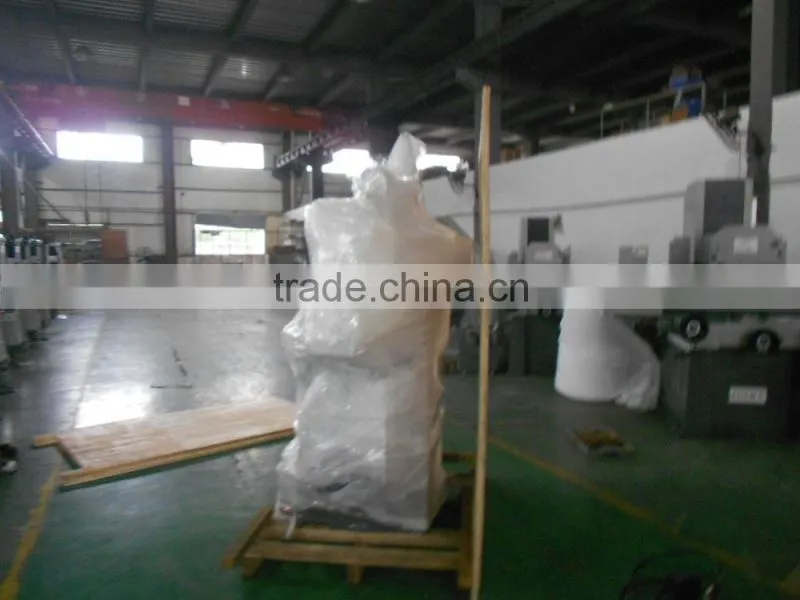

Package Reference Pictures:
After-sales services:
* 1 year guarantee for whole machine, we offer FOC parts for quality problem within guarantee.
* 24 hours technical calling or e-mail service for any technical questions of our machine.
* We offer detailed User Manual for machine installation, operation, and also for Software.
Photos:
1.Workshop:
Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.
2.Research and Development team:
We have a large group of Research and Development team , they own the professional theory knowledge, special technology skills and rich experience in the technical research field.
3.Certificate and Honour:
(1).8 Intellectual property rights and 5 the patents
(2).The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field.
(3).From 2004 to 2007,we have been granted with “Top 100 Metal Cutting Machine Tool Manufacturers” in China.
(4).In 2011,we have been granted as” National Grade HI-Tech Enterprise”.
(5).We have introduced ISO9001:2008 in 2009.
(6).The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS.
4.Accessories for grinding machine:
