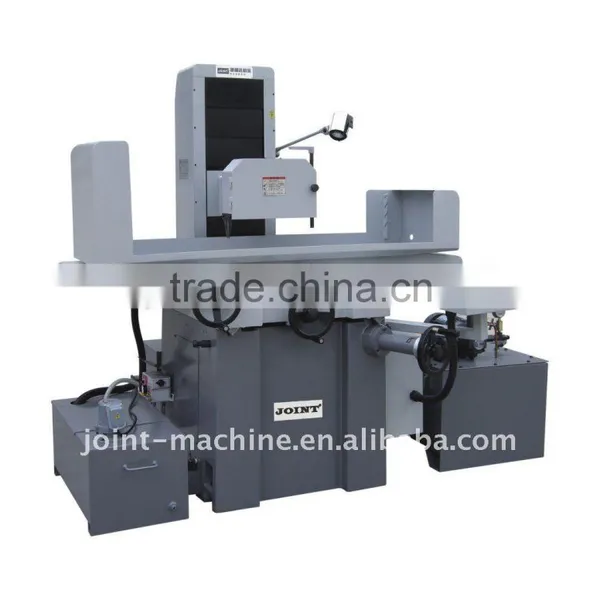

Help CenterPrecise Grinding Machine <306AHR>
Related Products
Specifications
1.Taiwan grinding head;2.Twice scraped slide way;
3.Radius tolerance of spindle<=0.002mm;
cessing accuracy<=0.005.
Features:
1.Taiwan grinding head.
2.Twice scraped slide way.
3.Radius tolerance of spindle<=0.002mm,processing accuracy<=0.005.
4.OEM MANUFACTURER.
5.Twice scraped slide way,which could assure the accuracy of the machine.
6.High quality electric components.
7.Radius tolerance of spindle<=0.002mm,vertical value of ram slide way<=0.005mm,processing accuracy<=0.005mm.
Specification:Grinding machine 306AHR
| Model | 306AHR |
| Table size | 600*300mm |
| Table travel(Longitudinal) | 730mm |
| Table travel(Cross ward) | 350mm |
| Max.Distance from spindle to table | 540mm |
| Spindle (Rotation speed) | 1450rpm |
| Spindle (Rated power) | 5HP |
| Auto feed of vertical handwheel (1Rev.) | 2 |
| Auto feed of vertical handwheel (1Div.) | 0.01 |
| Grinding wheel size | 350*40*127mm |
| Magnet chuck size | 200*400mm |
| Dimension | 1800*2000*2100mm |
| Net weight | 2500kg |
Accessories:
1.Standard accessories:
Coolant system or dust clean
Working light
Tool and toolbox
Operation manual
2.Optional accessories:
5UM DRO
1UM DRO
Magnet chuck
After-sales services:
Warranty is a year, we would offer the parts( quality problem) free of charge during this period. Overseas service need to be charged extra.
Photos:
1.Workshop:
Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.
2.Research and Development team:
We have a large group of Research and Development team , they own the professional theory knowledge, special technology skills and rich experience in the technical research field.
3.Certificate and Honour:
1.8 Intellectual property rights and 5 the patents
2.The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field.
3.From 2004 to 2007,we have been granted with “Top 100 Metal Cutting Machine Tool Manufacturers” in China.
4.In 2011,we have been granted as” National Grade HI-Tech Enterprise”.
5.We have introduced ISO9001:2008 in 2009.
6.The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS.
