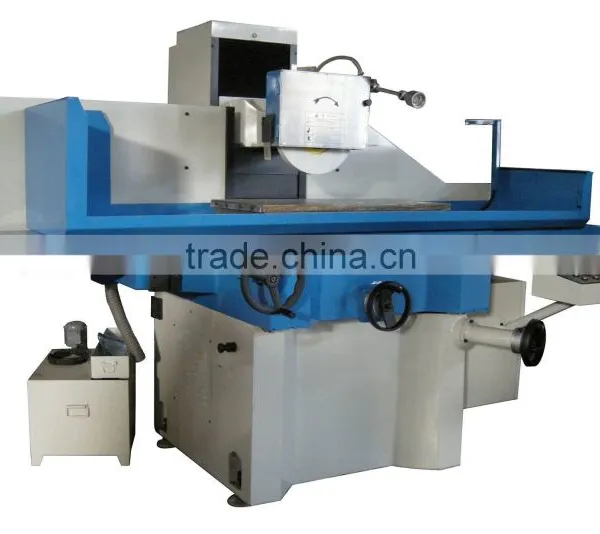

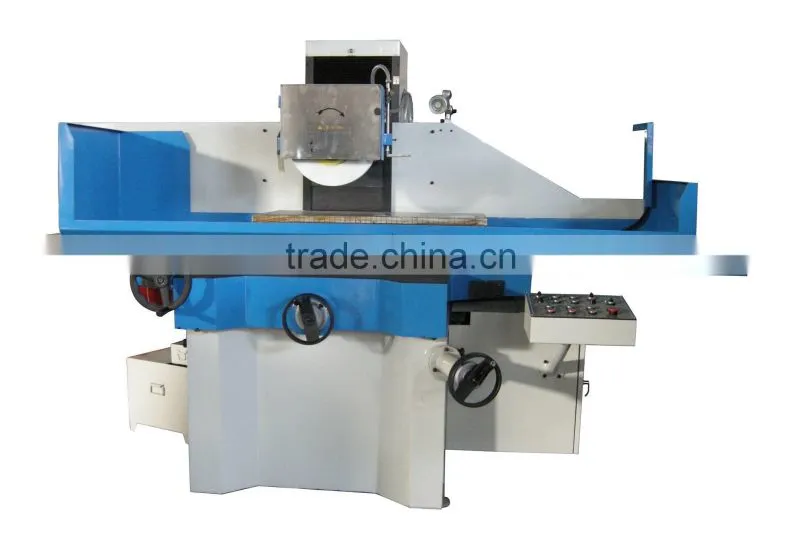

Help CenterPrecise Grinding Machine
Related Products
Specifications
1.Table Size:1000*500mm;Travel:1150*540mm2.Processing accuracy<=0.005mm
3.CE Certification
4.Taiwan grinding head
Detailed Product Description
1.Table Size:1000*500mm;Travel:1150*540mm
2.Processing accuracy<=0.005mm
3.CE Certification
4.Taiwan grinding head
Features
- Twice scraped slide way,which could assure the accuracy of the machine
- High quality electric components
- Radius tolerance of spindle<=0.002mm
- Vertical vertical value of ram slide way <=0.005mm
- Processing accuracy<=0.005
- Long life span, High accuracy
Specification
-
Model 5010AHR/AHD Table size 1000*500mm Travel (Longitudinal) 1150mm Travel (Crossward) 540mm Max.Distance from spindle to table 620mm Spindle (Rotation Speed) 1450mm Spindle (Rated power) 10HP Auto feed of vertical handwheel (1 REV.) 0.2 Auto feed of vertical handwheel (1 DIV.) 0.001 Grinding wheel size φ355*(20-50)*φ127 Magnet chuck size 150*350mm Dimension 2400*4000*2010mm Net weight 3550kgs Standard accessories:
Coolant system or dust clean
Working light
Tool and toolbox
Operation manual
4.Optional accessories:
DRO
Magnet chuck
Balancing stand/bracket
After-sales Service:
Warranty is a year. Parts are free of charge to be offered during this period. Oversea service need to charged extra in and out of warranty.
Our development team
We have a group of development team that they have professional theory profound skills, technical specialization, rich experience in the industry of the first-class technical research
Our production workshop
Our company independent planning and construction of modern vertical machine center production line ,CNC milling machine production line ,Dragon frame CNC machine production line , electric discharge machine production line, milling machine production line, grinder machine production line, precise head assembly workshop etc.
ur development team
We have a group of development team that they have professional theory profound skills, technical specialization, rich experience in the industry of the first-class technical research
Our certificate of honor
- There are 8 Intellectual property rights,5 the patent
- In 2008, Our own brand”JOINT” has been the top quality machine’s signal in domestic sales JOINT also has been recognized as”Guangdong Famous Brand”
- In 2008, Milling machine was recognized as” TOP 10 Famous Brand of Milling Machine “ in China
- ,In 2011,our company has been recognized as” national grade HI-Tech Enterprise”.
- The company set up a ISO9001:2000 quality guarantee system
- our product through “the country machine quality supervision and inspection center “certification testing
