Help CenterCE Quality and High Accuracy Milling Machine 4SB
Related Products

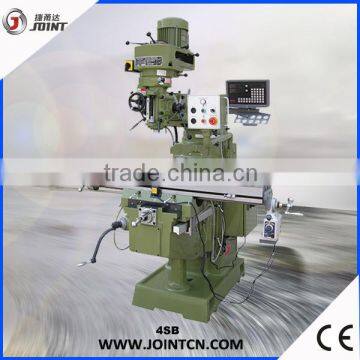

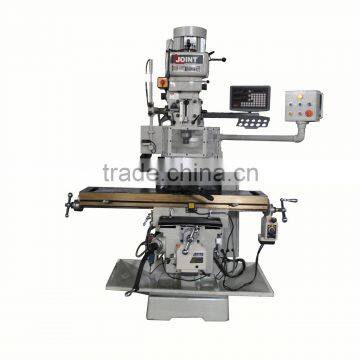

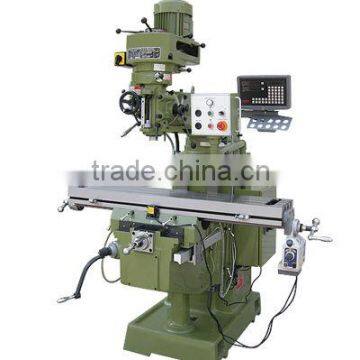

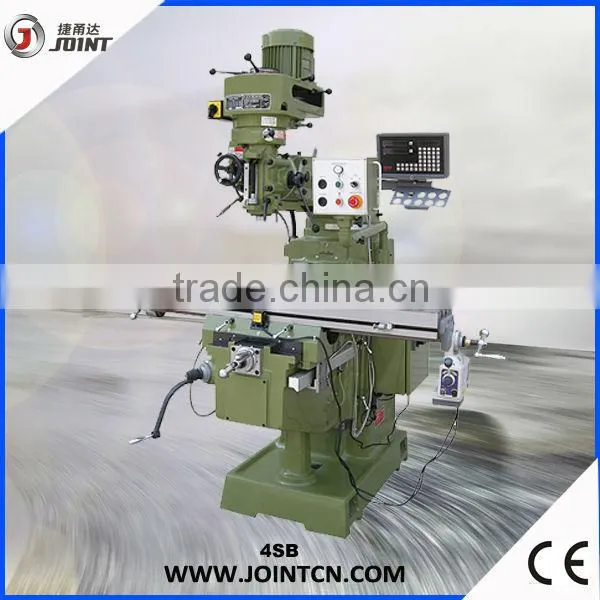

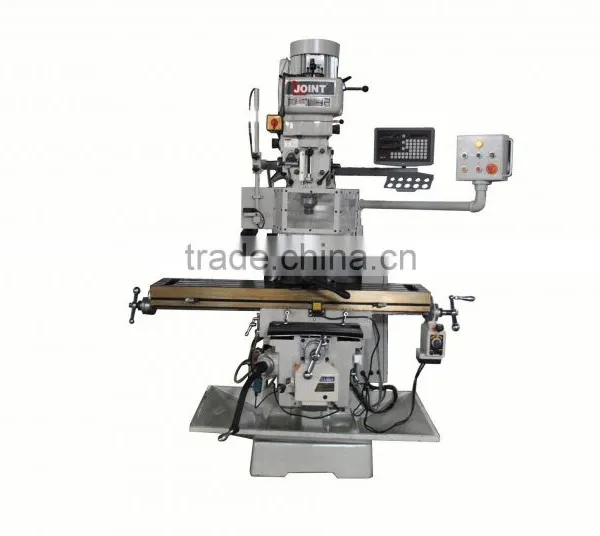

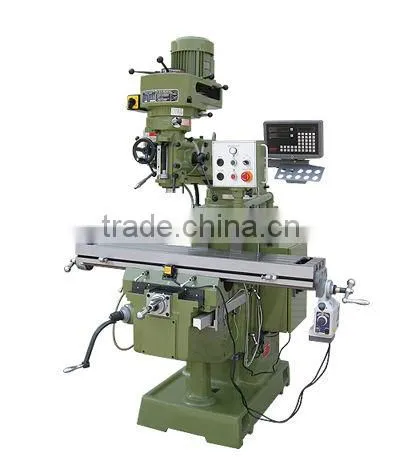

vertical milling machine 4SB
Specifications
1.Taiwan original milling head,NSK P4 spindle bearing;
2.Twice precisely scraping;
3.OEM Manufacturer;
4.Step speed;
5.CE.
Features:
1.Taiwan original milling head,NSK P4 spindle bearing;
2.Twice precisely scraping;
3.Head tilt angle ±45°/±90°;
4.OEM MANUFACTURER;
5.For electric parts, mould and hole, slot and frame processing;
6.Twice precisely scraping Fit for boring, milling, drilling and boring, tolerance is 0.005-0.012mm;
7.Spindle tolerance 0.002mm;
8.Parallel value between tables movement and table: X axis 0.015mm, Middle 0.01mm, Y axis 0.01mm.
Specification:Milling machine 4SB
| Model | 4SB |
| Table size | 1270*254*90mm |
| Travel (Longitude) | 900mm |
| Travel (Cross ward) | 370mm |
| Travel (Vertical) | 360mm |
| Travel of spindle quill | 127mm |
| Max.Distance from the spindle nose to table | 400mm |
| Spindle (Rotation speed) | 80-5440RPM/(16 grades) |
| Spindle (Taper) | R8/NT30 |
| Spindle (Rated power) | 3HP |
| Tilt Angle (Forward and Backward) | ±45° |
| Tilt Angle (Left and Right) | ±90° |
| Dimension | 1500*1700*2150mm |
| Net weight | 1500kg |

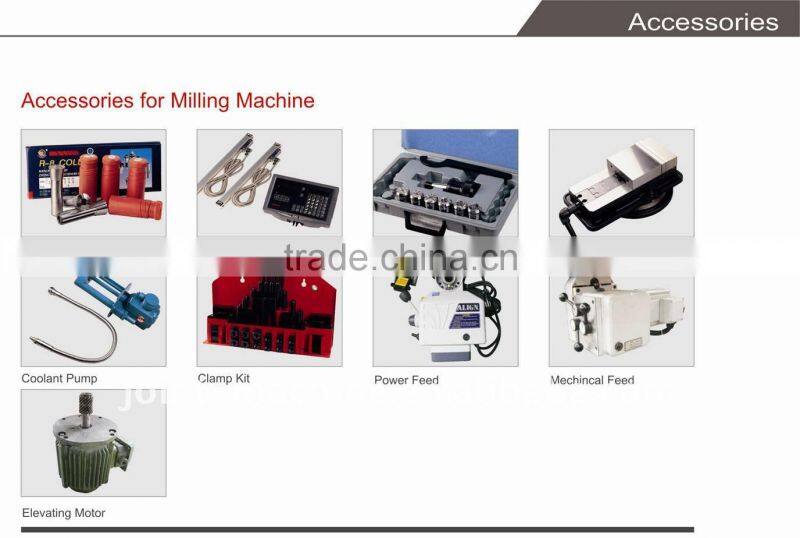

Accessories:
1.Standard accessories:
Oil pump
Working light
Draw bar
Way cover
Operation manual
Tool and toolbox
2.Optional accessories:
R8 collects
Clamping kits
6" vise
Coolant system
DRO
Power feed
Elevating motor
After-sales services:
Warranty is a year, we would offer the parts( quality problem) free of charge during this period. Overseas service need to be charged extra.
After-sales services:
Warranty is a year, we would offer the parts( quality problem) free of charge during this period. Overseas service need to be charged extra.
Our Factory
1.Research and Development team:
We have a large group of Research and Development team , they own the professional theory knowledge, special technology skills and rich experience in the technical research field

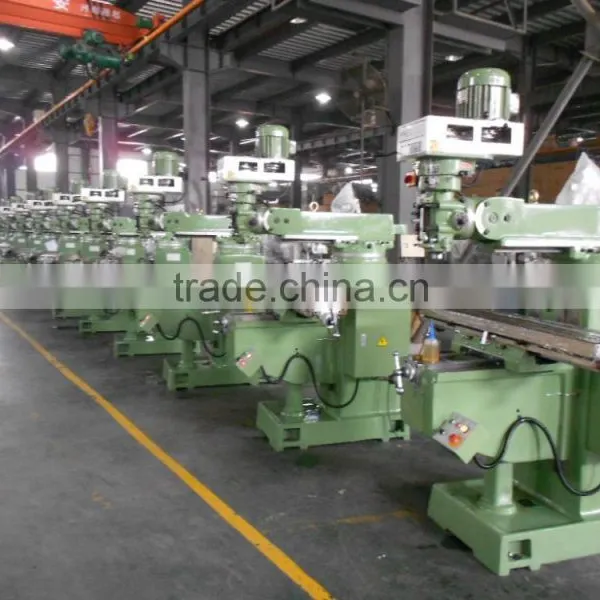

2.Workshop:
Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.
3.Certificate and Honour:
1.8 Intellectual property rights and 5 the patents
2.The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field.
3.From 2004 to 2007,we have been granted with “Top 100 Metal Cutting Machine Tool Manufacturers” in China.
4.In 2011,we have been granted as” National Grade HI-Tech Enterprise”.
5.We have introduced ISO9001:2008 in 2009.
6.The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS.
