Home > Manufacturing & Processing Machinery > Machine Tools > Special Machine Tools > CNC-540 EDM Machine With Good Quality and Reasonable Price

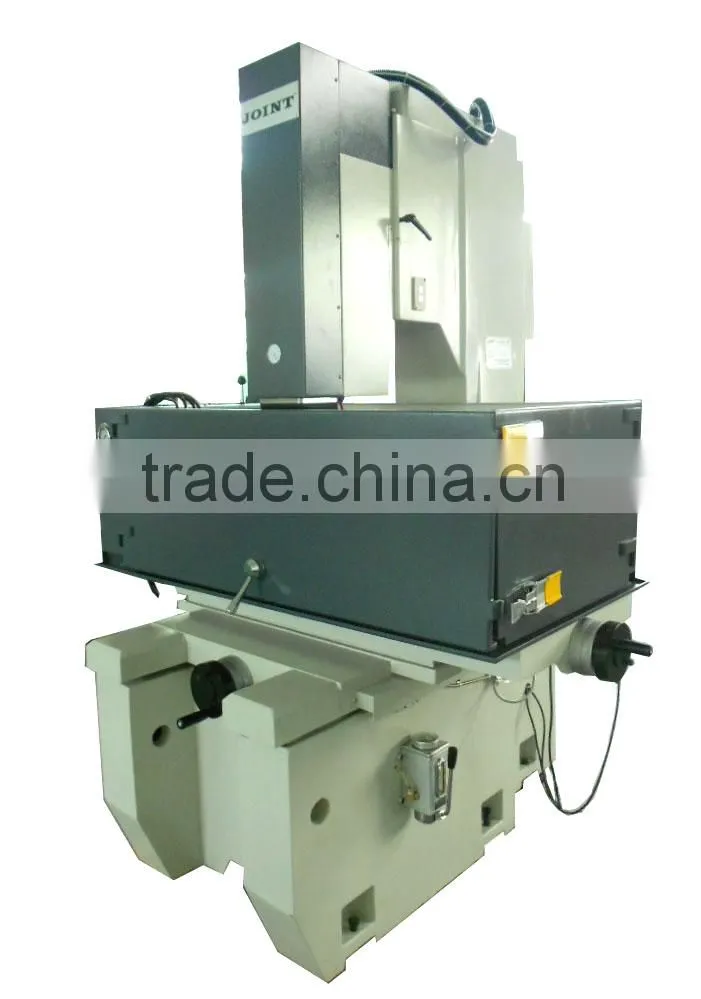

CNC-540 EDM Machine With Good Quality and Reasonable Price

Name: CNC-540 EDM Machine With Good Quality and Reasonable Price
Brand: JOINT
SKU: 132190085
Availability: InStock

CNC-540 EDM Machine With Good Quality and Reasonable Price thumbnail-1

CNC-540 EDM Machine With Good Quality and Reasonable Price photo-1

US$ 15,800 - 16,300 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

CNC or Not:

Normal

Place of Origin:

Guangdong, China

Contact Supplier Request Quote Chat Now

Shenzhen Joint Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

CNC or Not Normal

Place of Origin Guangdong, China

Brand Name JOINT

Model Number CNC-540

Voltage 220V/380V/415V

Power(W) 1.2kw

Dimension(L*W*H) 1640*1460*2140mm

Weight 1740kgs

Certification CE

Warranty one year for quality problems

After-sales Service Provided No overseas service provided

CNC-540 EDM Machine with Good Quality and Reasonable Price

Detailed Product Description

1.Best quality cast,time aging
2.Imported sealed ballscrew
3.Table size: 800*400
4.Table travel: 500*400*200mm
5. Z axis Auto

FEATURES:

1. Taiwan CTEK controller

2. Imported ballscrew and guideway

3. Taiwan electric components

4. One piece machine body

5. Large torque servo motor with fast responding speed.

6. With Fire extiguisher

7.ZNC and CNC and Mirror type are available.

8. Double heads EDM are aslo available.

SPECIFICATIONS:

Model	Size of oil container	Table size	Table travel	Elelctrode head	Max. distance between electrode head and working table	Max. load of electrode head	Max. load of table	Dimension	Net weight	Cubic of Filter container	Net weight of Filter contrainer
CNC-540	1300720475mm	800*400mm	500400200mm	380mm	580mm	150kgs	1500kgs	164014602140mm	1740kgs	460L	180kgs

Model

Control mode & Axis no

Min. setting value

Max. setting value

Coordination system

Screen

Control system

Moving velocity of controller

Procedure in store

Max. curret for processing

Input rated power

Max. cutting processing speed

Consumption of the electrode head

Best surface rough

Dimension

Net weight

ZNC Machine

NC with close circuit / Single Z axis control

0.005(0.001)mm

9999.995(9999.9999)mm

(INC),(ABS)

15"TFT

Industrial PC

0.005mm(per unit) *1,*5,*10

0-999 groups

50A/75A/100A

5KVA/6KVA/10KVA

360/560/700

<0.2%

0.25μmRα

620*860*1850mm

210kgs

CNC Machine

NC with close circuit / X,Y,Z axes control

0.005mm

9999.995mm

(INC),(ABS)

15"TFT

Industrial PC

0.005mm(per unit) *1,*5,*10

0-999 groups

50A/75A/100A

5KVA/6KVA/10KVA

360/560/700 mm2/min

<0.2%

0.25μmRα

620*860*1850mm

215kgs

Optional accessories:

ing light

2.fire extinguisher

3.permanent magnet chuck

AFTER-SALE SERVICE :

Warranty is a year. parts in the warranty would be free of charge due to its quality problem. Overseas service needs to be charged extra.

Photo:

1.Workshop:

Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.

2.Research and Development team:

We have a large group of Research and Development team , they own the professional theory knowledge, special technology skills and rich experience in the technical research field.

3.Certificate and Honour:

1.8 Intellectual property rights and 5 the patents

2.The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field.

3.From 2004 to 2007,we have been granted with “Top 100 Metal Cutting Machine Tool Manufacturers” in China.

4.In 2011,we have been granted as "National Grade HI-Tech Enterprise".

5.We have introduced ISO9001:2008 in 2009.

6.The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS.

Accessories:
