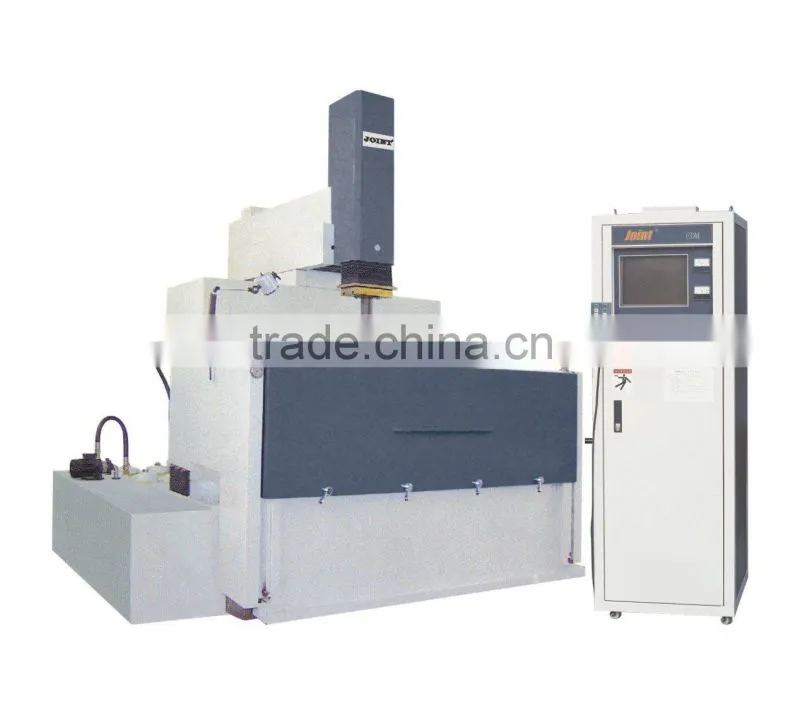

EDM Machines

Name: EDM Machines
Brand: JOINT
SKU: 132189597

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

CNC or Not:

Normal

Place of Origin:

Guangdong, China

Shenzhen Joint Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Place of Origin Guangdong, China

Brand Name JOINT

Model Number ZNC1370N

Voltage 220V/380V/415V

Dimension(L*W*H) 2800*3090*3360mm

Weight 7000kg

Certification CE

Specifications

1.Best quality cast,time aging
2.Imported sealed ballscrew
3.table size 1400*900mm
4.Travel 1300*700*500mm
5.Taiwan contr

A).Features

1.Imported sealed ballscrew and electrode head

2.Japan lineal way and servo motor
3.Taiwan control system
4.OEM manufacturer

5.Best quality,time aging

6.Deep-hole processing without carbon accumulation

B).Specification

Model		ZNC-320 CNC-320	ZNC-450 CNC-450	ZNC-540 CNC-540	CNC-540N	ZNC-1370N
Size of Oil Container		880520330mm	1130710450mm	1300720475mm	1370720450mm	22501300650mm
Table Size		600*300mm	700*400mm	800*400mm	850*450mm	1400*900mm
Travel	Longitude (X)	300mm	450mm	500mm	500mm	1300mm
	Crossward(Y)	200mm	350mm	400mm	400mm	7000mm
	Vertical (Z)	180mm	200mm	200mm	300mm	500mm
Electrode Head		180mm	280mm	380mm	-	400mm
Max Distance between Electrode Head and Working Table		420mm	480mm	580mm	690mm	1150mm
Max Load of Electrode Head		100kg	120kg	150kg	150kg	400kg
Dimension		145013002140mm	147011501980mm	160014002250mm	180020002450mm	280030903360mm
Net Weight		1360kg	1800kg	2100kg	2500kg	7000kg
Filtered Container	Cubic	250L	400L	460L	640L	2800L
Filtered Container	Net Weight	buid-in	150kg	180kg	200KG	500kg

Model				CNC Machine
Control Mode & Axis No				NC with Close circuit/x,y,z Axis control
Min Setting Value mm				0.005
Max Setting Value mm				9999.995
Coordination System				1 NCREMENT,ABSLOUTE
Screen				15" CRT Colorful
Control System				Industrial PC
Moving Velocity of Controller				0.005mm(per unit)15*10
Procedure in Store				0-999 groups
Max. Current for Controller				50 75 100
Input Rated Power				5 6 10
Max. Cutting Processing Speed				360 560 700
Consumption of the Electrode Head				<0.2
Best Surface Rough				0.15
Dimension				6208601850mm
Net weight				215kg
