Help CenterDrilling Machine ZH3045
Related Products
Specifications
1.Table size (Pedestal) 1600*750mm2.Table size (Upper) 1160*750mm
3.Mehanite cast
4.Double slide way
Features:
1.Heavy duty machine,Mehanite cast
2.Double slide way make the operation smooth.
3.Spindle and gears are precisely machined and scraped.
4.OEM Manufacturer.

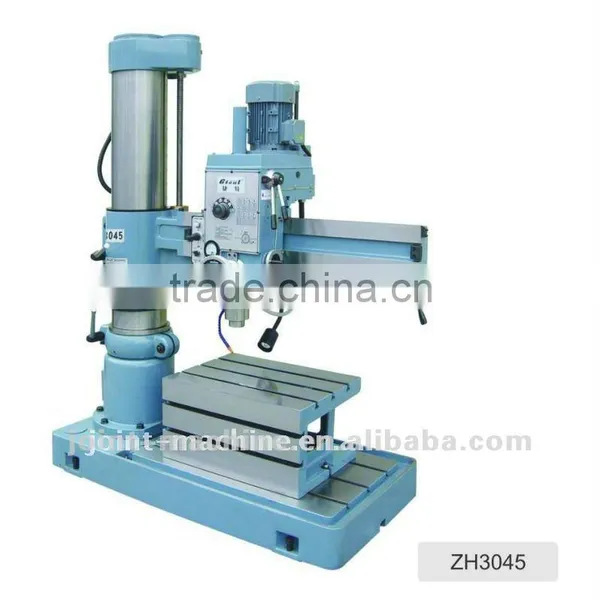

Specification:Drilling machine ZH3045
| Model | ZH3045 |
| Distance from spindle center to ram (MAX./MIN.) | 1100/260mm |
| Distance from spindle nose to pedestal(MAX./MIN.) | 1200/300mm |
| Ram diameter | 270mm |
| Height of Ram | 2055mm |
| Distance from upper spindle to pedestal | 2400mm |
| Table size | 1600*750mm |
| Height of table | 170mm |
| Longitude movement of spindle | 840mm |
| Vertical movement of swing arm | 680mm |
| Vertical travel of spindle | 220mm |
| Spindle diameter/taper | 74mm/NO.4 |
| Table size | 1160*750mm |
| Spindle motor | 3HP*4P |
| Swing arm motor | 1HP*4P |
| Spindle rotation | 72-1263rpm |
| Working capacity(drilling/tapping) | 45/24mm |
| Net weight | 1600kg |
| Gross weight | 1750kg |
| Dimension | 1750*900*2150mm |
Accessories:
Working light
Tool and toolbox
Operation manual
After-sales services:
Warranty is a year, we would offer the parts( quality problem) free of charge during this period. Overseas service need to be charged extra.
Photos:
1.Workshop:
Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.
2.Research and Development team:
We have a large group of Research and Development team , they own the professional theory knowledge, special technology skills and rich experience in the technical research field.
3.Certificate and Honour:
1.8 Intellectual property rights and 5 the patents
2.The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field.
3.From 2004 to 2007,we have been granted with “Top 100 Metal Cutting Machine Tool Manufacturers” in China.
4.In 2011,we have been granted as” National Grade HI-Tech Enterprise”.
5.We have introduced ISO9001:2008 in 2009.
6.The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS.
