Help CenterMINI Rounter 330P
Related Products
Specifications
1. Mini router2.X.Y working size:300mm*300mm
3.Z working size:90mm
Features:
- High-Rigidty-- Cast Iron Body
- High-Accuracy--Hi-Win Linear guideway, Ball screw from Germany, and Bearing from NSK.
- Messive Memory Cpacity: Standard allocation of 32MB inner memory capacity
- Convenient Operation: Power off restoration, broken point re-start, working time antispation
- Three cloros: Red, Bule and Grey.
- 4th axis, transmitting by worm wheel, its accuracy is within 0.04mm
- Spray cooling system can helo you process the material like metal
Specification:
X.Y working size |
300mm×300mm |
Z working size |
90mm- (110mm if u needRotary device) |
The Max width of the workpiece |
400mm |
The Max length of the workpiece |
unlimited |
Speed of working |
0-4000mm/min |
Speed of spindle |
6000-24000RMP |
Spindle power |
1500W (Water-Cooling Motor) |
Taper sleeve |
3.175mm(1/8"), 4mm (1/6") and 6mm (1/4") |
Operating system |
Mach3 / DSP Controller / NCSTUDIO |
Driver |
Leadshine(Chinese famous brand) |
Convertor |
Fuling (Chinese famours brand) |
File form |
It supports G-code, which is compatible with so many CAD/CAM software, such as Artcam / Cascate / Proe / Artgrave / Type3/Artcut, etc. |
Resolution of software |
0.001mm |
Resolution of machine |
0.02mm |
Positioning accuracy |
0.05mm/300mm |
Repeat accuracy |
0.02mm |
Voltage |
220V-50HZ or 110V-60HZ |
Lead screw |
Imported from Germany, with P5 level; It's used for X,Y,Z-axis |
Lead rail |
Imported from Taiwan, P5 level; It's used for X,Y,Z-axis |
Optional devices |
Rotary device; Vacuum hold down table, High precision Vise etc. U can see the next details. |
After-sales Service:
Warranty is a year. Parts are free of charge to be offered during this period. Oversea service need to charged extra in and out of warranty.
Our development team:
We have a group of development team that they have professional theory profound skills, technical specialization, rich experience in the industry of the first-class technical research
Our certificate of honor:
- There are 8 Intellectual property rights,5 the patent
- In 2008, Our own brand”JOINT” has been the top quality machine’s signal in domestic sales JOINT also has been recognized as”Guangdong Famous Brand”
- In 2008, Milling machine was recognized as” TOP 10 Famous Brand of Milling Machine “ in China
- ,In 2011,our company has been recognized as” national grade HI-Tech Enterprise”.
- The company set up a ISO9001:2000 quality guarantee system
- our product through “the country machine quality supervision and inspection center “certification testing

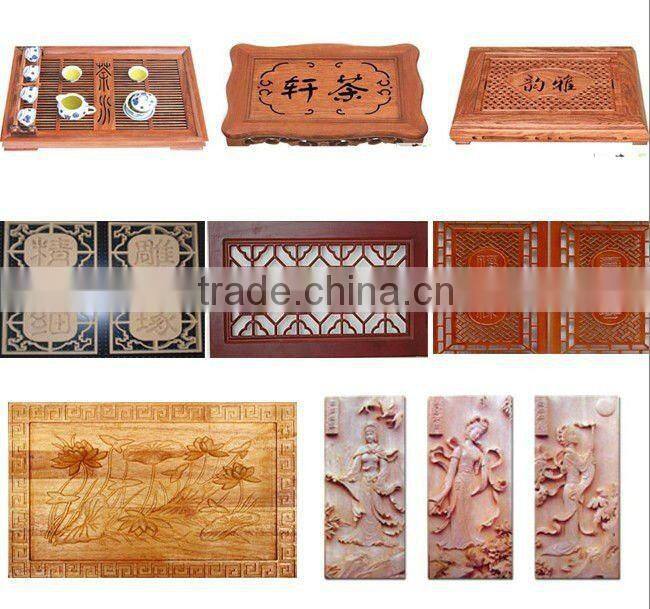

Samples the machine makes:
