CNC Machining

Specifications

CNC Machining
Hardway with small friction embodies quick response
Machine parts are world famous brand
High rigidity

CNC Machining

Features:

1. Mehanite casting,computer analysis facilities are used in its manufacturing,

   wide distance slide way makes outstanding rigidity.

2.Pre-pressed and pre-tense double screw assures feeding high accuracy.

   Special design of slide way and auto lubrication system ensures the accuracy

   long-time of the machine.

3.Precisely scrapped and Turcite B coated slide way makes machines run smoothly.

4.X,Y axis are assembled with linear way, Linear device is closely fixed on the cast

  Who has the features of small touch area,small friction;hence each machine embodies

  Quickly response,good dynamic performance,fast feed rate,and high positioning accuracy.

5.OEM manufacturer
6.CE certificate

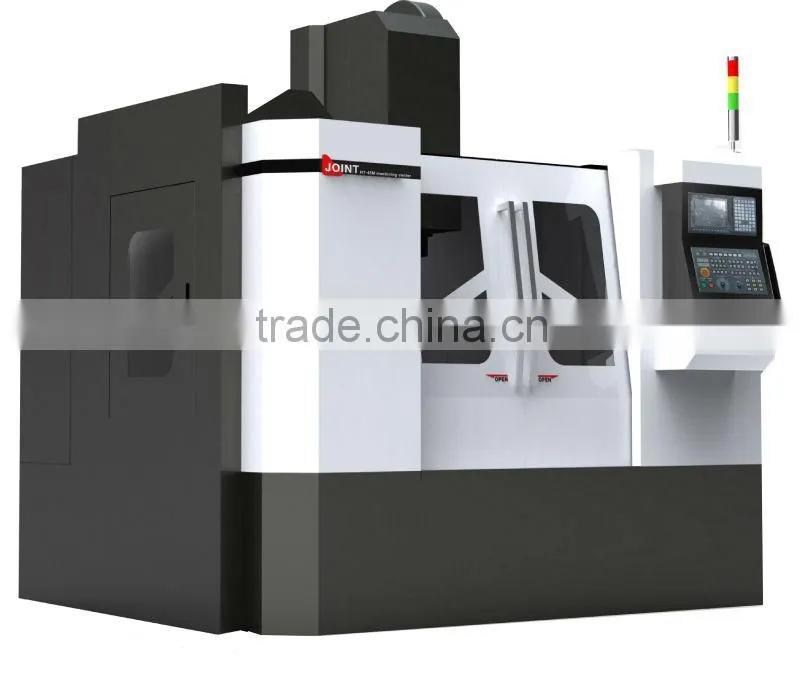

Specification:Vertical machine center VMC850C

Model	VMC850C
Table size	1000*530mm
Table travel	800*500*700mm
Distance between spindle and table	110-810mm
Distance between spindle and column	575mm
Spindle rotation speed	8000/10000rpm
Spindle taper	BT40
Spindle motor	7.5kw
Rapid feed	12*12*10m/min
Cutting feed	8m/min
Positioning accuracy	0.008mm/m
Min Enactment move unit	0.001mm
Dimension(L*W*H)	2750*2500*2500mm
Net weight	5700kgs
Max.Loaded of table	600kgs

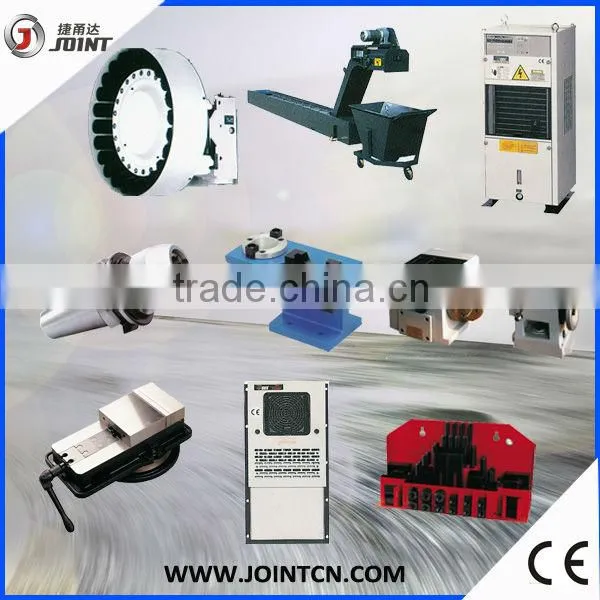

Accessories:





After-sales services:

Warranty is a year, we would offer the parts( quality problem) free of charge  during this period. Overseas service need to be charged extra.





Photo:

1.Plant:

Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.













2.Research and Development team:

We have a large group of Research and Development team , they own the professional theory knowledge, special technology skills and rich experience in the technical research field.







3.Certificate and Honour:

1.8 Intellectual property rights and 5 the patents

2.The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field.

3.From 2004 to 2007,we have been granted with “Top 100 Metal Cutting Machine Tool Manufacturers” in China.

4.In 2011,we have been granted as "National Grade HI-Tech Enterprise".

5.We have introduced ISO9001:2008 in 2009.

6.The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS.
