Chinese NC Milling Machine with Bed Type NCM1470

1. Hard cutting

2.NSK bearing

3.High speed electric spindle

4.PMI/ HIWIN Lead screw ball

5.AMT/HIWIN linear way

6.Germany R+W coupling

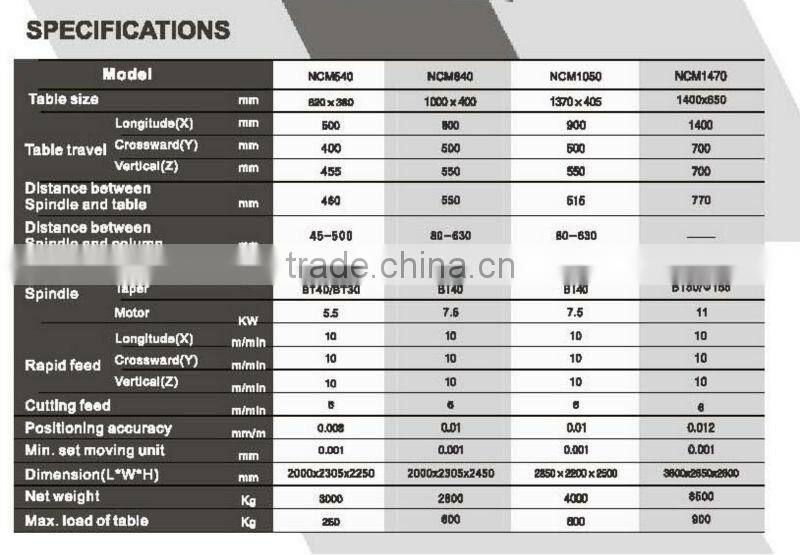

Specification of Bed type NC milling machine NCM1470

Accessories:

1.Standard accessories:

1) Japan FANUC 0i-MD/β Control system

2) Japan FANUC Servo Motor

3) Japan FANUC Drive

4) Automatic Lubrication one set;

5) Cutting fluid system

6) Pneumatic system

7) Electronic hand wheel one set

8)Full Cover or Half full cover one set

9)Working Light one set

10)RS-232 Connectionone set

11)M16 Clamping kit one set

12)8” Vise one set

13) BT40 milling chuck and collect one set

14) Spindle

15)Tool and toolbox one set

16) X Y Z axes hard guide way

Remark: Control system options: Fanuc, Mitsubish, KND, GSK , Simens and TW etc.

2.Optional accessories:

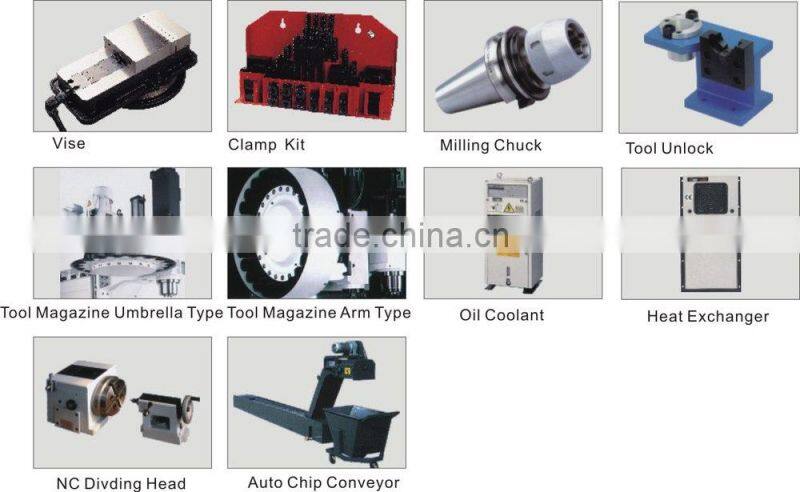

Accessories pictures

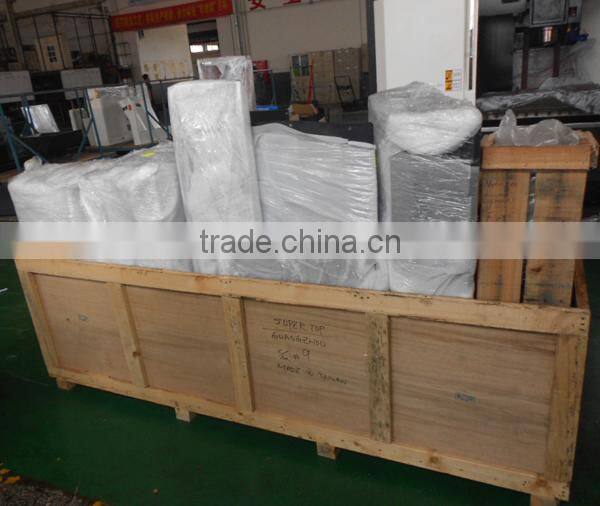

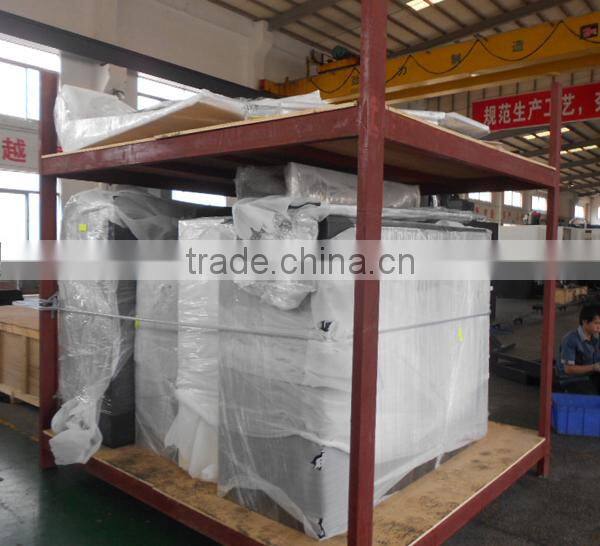

Package Reference Pictures

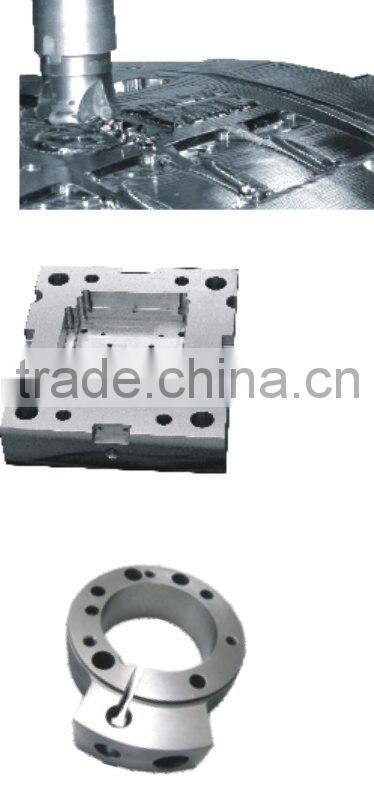

Processed Workpiece Reference Pictures

After-sales services:

Warranty is a year, we would offer the parts( quality problem) free of charge  during this period. Overseas service need to be charged extra.

Photo:

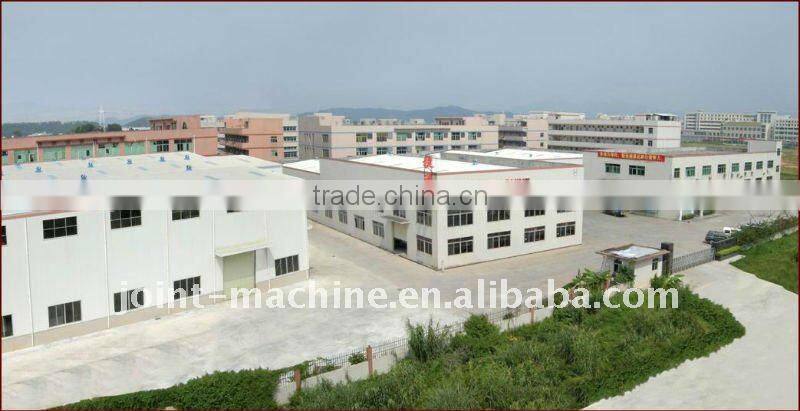

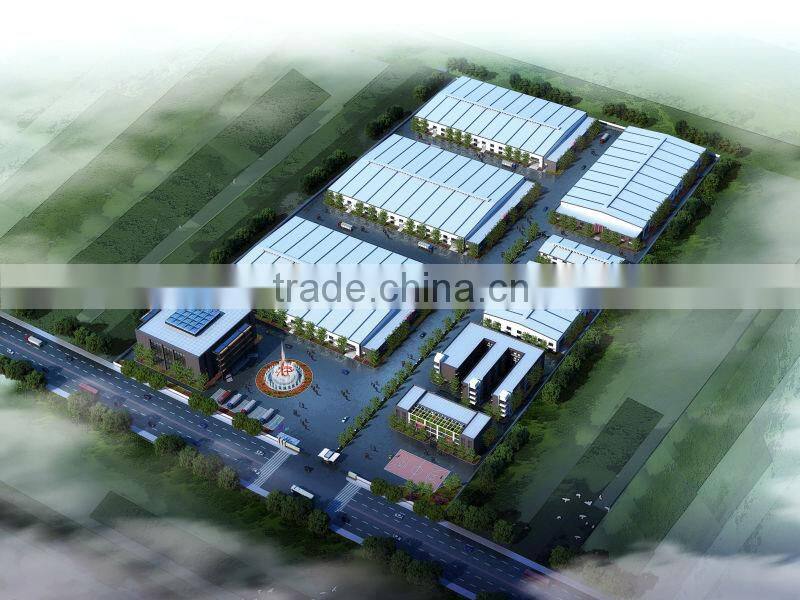

1.Plant:

Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.

2.Research and Development team:

We have a large group of Research and Development team , they own the professional theory knowledge, special technology skills and rich experience in the technical research field.

3.Certificate and Honour:

1.8 Intellectual property rights and 5 the patents

2.The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field.

3.From 2004 to 2007,we have been granted with “Top 100 Metal Cutting Machine Tool Manufacturers” in China.

4.In 2011,we have been granted as "National Grade HI-Tech Enterprise".

5.We have introduced ISO9001:2008 in 2009.

6.The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS.

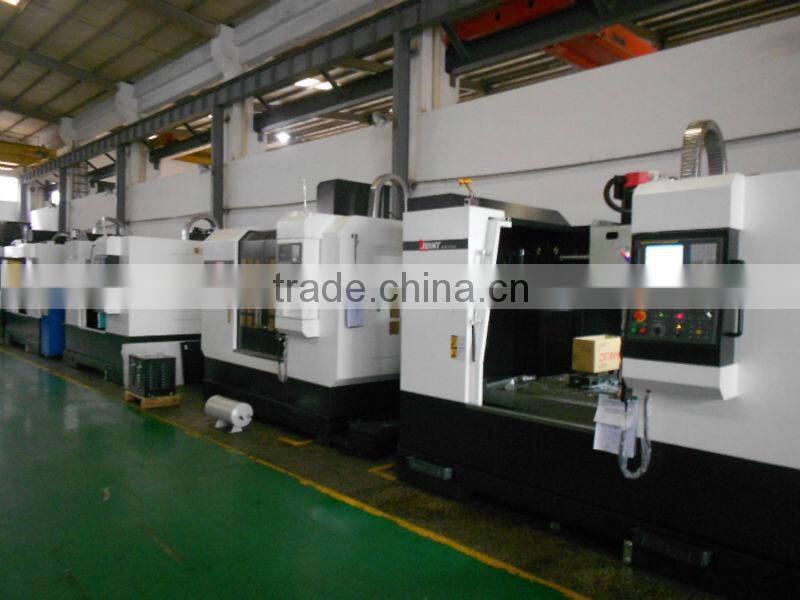

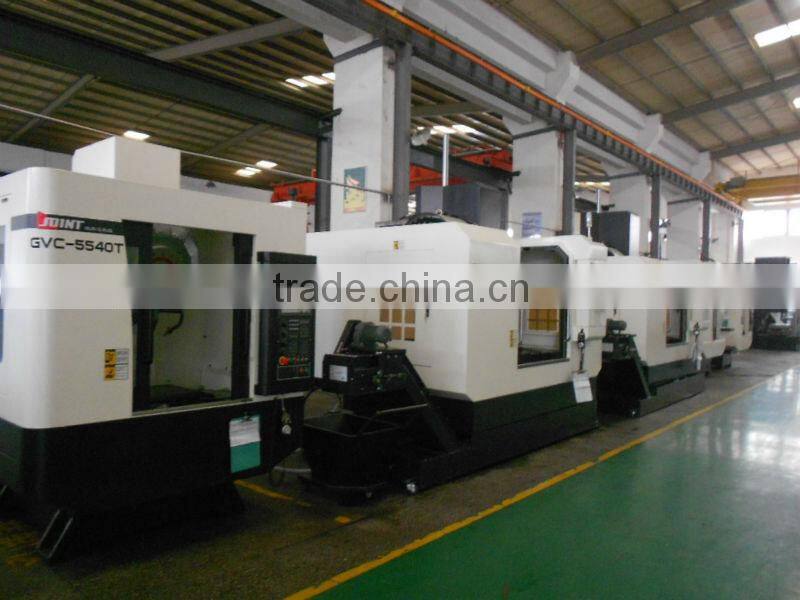

4. Production lines
