Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > Milling and Cutting Metal (CNC IK-451011) Vertical Cnc Milling Head

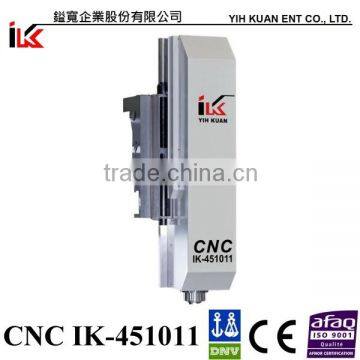

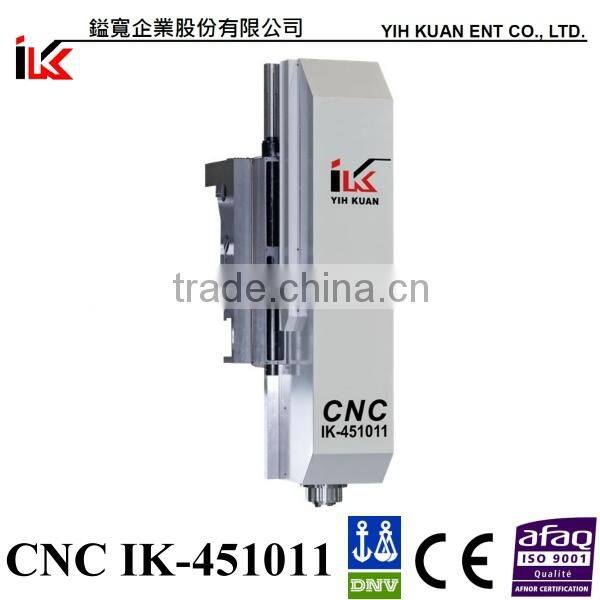

Milling and Cutting Metal (CNC IK-451011) Vertical Cnc Milling Head

Name: Milling and Cutting Metal (CNC IK-451011) Vertical Cnc Milling Head
Brand: YIH KUAN ENT CO., LTD.
SKU: 132187233
Availability: InStock

Milling and Cutting Metal (CNC IK-451011) Vertical Cnc Milling Head thumbnail-1

Milling and Cutting Metal (CNC IK-451011) Vertical Cnc Milling Head photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Taiwan, China

Brand Name:

YIH KUAN ENT CO., LTD.

Contact Supplier Request Quote Chat Now

Yih Kuan Ent Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Taichung Port (TAIWAN)

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Taiwan, China

Brand Name YIH KUAN ENT CO., LTD.

Model Number CNC IK-451011

Type Vertical

CNC or Not CNC

Voltage Depending on the region (Please provide us)

Power(W) 18.5/25 (22/30) KW/HP

Dimension(L*W*H) 2820*1400*1430mm (STANDARD EXPORT WOODEN CRATE)

Weight 2300kg

Warranty 1 year (non artificial mistake)

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.vertical cnc milling head made in Taiwan.
2.Z-axis: 1000mm
3.best precision spindle
4.spindle running low noise
5.durable

. milling and cutting metal (CNC IK-451011) cnc milling machine head milling and cutting metal (CNC IK-451011) vertical cnc milling head.

Product Description

The product is Made in Taiwan.

This provide the best precision spindle, spindle running low noise, and durable when cutting metal workpiece.

Characteristics -------------------------------

made in Taiwan
best precision spindle
spindle running low noise
durable

-----------------------------------------------------

Item	IK-450811	IK-451011
Z-axis traverse	800mm	1000mm
Spindle nose length	90 / 190 mm
Z-axis ball screw specification	Ø50 / P10 mm
Servo motor specification	7/9.4 KW/HP
Spindle taper	ISO 50
Spindle motor	18.5 / 25 (22/30) (Optional)
Spindle speed	4500 / 6000 (Optional)
Type of guide	Y,Z axis Square guide-way
Weight(approximate)	2,100kg	2,300kg

NOTICE:

This product does not contain motors, so be sure to provide motor specifications to us, we will make specific connections seat.

As long as you can offer the MOTOR SPECIFICATION / QUANTITY / VOLTAGE of product, we can quote you the competitive prices or give you some advices if we can’t make it as your request.

ii the purchase of machinery while buying accessories, our company can provide special price for you

We look forward to receiving your specific inquiry to quote you accordingly.

Packaging & Shipping

PACKAGING: BY ORDER OR STANDARD EXPORT WOODEN CRATE.

SHIPPING: FROM TAICHUNG PORT TO SPECIFIED PORT.
