MPEG-4 to MPEG-2 H.264 Transcoder
- 10000 Set / Sets per Month
- Chengdu
- T/T L/C D/P D/A Credit Card PayPal
- MPEG-4/H.264 to MPEG-2 Transcoder IPTV HD/SD MPEG-4 to MPEG-2 Transcoder
- 6 in1 ASI MPEG-2/H.264 Transcoder
- MPEG-1,MPEG-2,MPEG-4,H.264 to HD/SD Transcoder
- 6 in 1 MPEG-2/MPEG-4 IPTV Transcoder from China
- H.264 to Mpeg2 HD SD digital stream transcoder for IPTV and Cable tv system COL5081T
- Digital Tuner to iptv transcoder H.264 to Mpeg2 / Mpeg2 to H.264 COL5081T
Product Details
Place of Origin: | Sichuan, China | Brand Name: | Colable | Model Number: | COL5081T |
Product Description

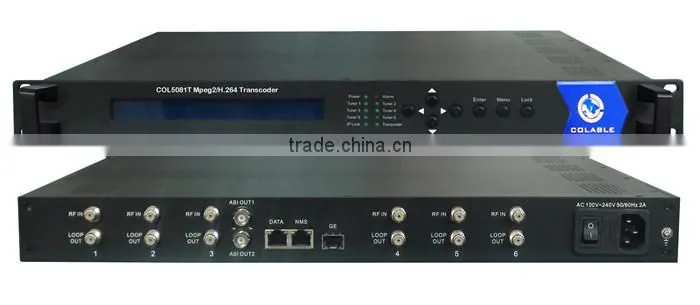

COL5081T Mpeg2/H.264 Transcoder
Skype: yangting965
Outline
COL5081T is a professional bidirectional trans-coder to convert video between H.264 and MPEG-2 format and also to trans-code between HD and SD programs simultaneously. It is equipped with 6 tuner inputs to receive channels directly from satellite, or ASI /IP inputs to receive digital channels. After trans-coding, it outputs MPTS & SPTS through the DATA port or ASI port.
This trans-coder supports advanced re-multiplexing and can effectively provide operators with real-time code rate switch and optimize the video with its high performance.
It can be easily managed through web NMS system, and has become an ideal solution for operator to provide high quality video trans-coding.
Features
ü Support 8 * IP (SPTS/MPTS UDP) input plus 6 tuners input
- Or 8 * IP (SPTS/MPTS UDP) input plus 6 ASI input
ü Support 8*SPTS & 1*MPTS (UDP) output and 1 ASI output
ü Video Trans-coding: MPEG-2 SD/HD and H.264 SD/HD any-to-any
ü Audio Trans-coding: AAC and MPEG-2 any-to-any or pass-through
ü Support maximal 8 SD or 4 HD programs trans-coding
ü Support maximal 8 channel audio trans-coding
ü Supporting 1920x1080I, 1280x720P, 720x576i, and 720x480i resolutions
ü Supporting CBR and VBR rate control
ü Advanced re-multiplexing
ü LCD & Key board local control; web NMS management
Specifications
Stream In | MPTS/SPTS over UDP, 1000Base-T Ethernet Interface/ SFP interface | ||
6 * Tuner (DVB-C/T/S/S2/ISDB-T/ATSC); 6 * ASI (optional) | |||
Video | Resolution | 1920x1080I,1280x720P, 720x576i, 720x480i | |
Trans-coding | 4*MPEG2 HD → 4*MPEG2/H.264 HD ; 4*MPEG2 HD → 4*MPEG2/H.264 SD ; 8 *MPEG2 SD → 8 *MPEG2/H.264 SD | ||
4* H.264 HD → 4*MPEG2/H.264 HD ; 4* H.264 HD → 4*MPEG2/H.264 SD ; 8* H.264 SD → 8 *MPEG2/H.264 SD | |||
Rate Control | CBR/VBR | ||
Audio | Trans-coding | MPEG-1 Layer 2 to AAC any-to-any | |
Sampling rate | 48KHz | ||
Bit Rate | 64Kbps-384Kbps | ||
Stream Out | 8*SPTS & 1*MPTS over UDP, 1000Base-T Ethernet Interface (UDP uni-cast / multicast) /SFP interface | ||
1*ASI (as a copy of one of the 8 SPTS or the MPTS) output, BNC interface | |||
System function | LCD & Key board control; web NMS management | ||
Ethernet software upgrade | |||
General | Dimensions | 430mm×405mm×45mm(WxDxH) | |
Approx weight | 4.8 Kg | ||
Temperature range | 0~45℃(Operation), -20~80℃(Storage) | ||
Power requirements | AC 110V±10%, 50/60Hz or AC 220V±10%,50/60Hz | ||
Power consumption | 20W |
Application
- MMDS digital TV head end
- Satellite digital TV broadcasting
- Terrestrial digital TV
- Image Supervise
- Video-On-Demand (VOD) Long-distance teaching
- Video Conference
Product Equipments
Testing Equipments
Package Process
Our experience: Continuous experienced and reliable Team , Standing in DVB Head-end system solution more than 10 years.
Our product: FTA satellite receiver/decoder, Satellite descrambler (CI slot), Encoder, Multiplexer,Scrambler, Modulator, Transmitter,Antenna,Set top box.
Our service: Life-long Technical support.
Warranty: 1 years.
Lead time: 2-5 working days
