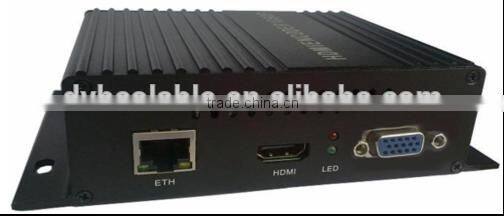

COLD-7101HV Mini Full hd Video ip Decoder ,hd-mi & av Video Iptv Encoder Decoder

COLD-7101HV Mini Full hd Video ip Decoder ,hd-mi & av Video Iptv Encoder Decoder thumbnail-1
COLD-7101HV Mini Full hd Video ip Decoder ,hd-mi & av Video Iptv Encoder Decoder photo-1
US$ 1 - 289 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Colable
Model Number:
COLD-7101HV
Place of Origin:
Sichuan, China
Contact Supplier Request Quote Chat Now
Colable Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Chengdu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Colable
Model Number COLD-7101HV
Place of Origin Sichuan, China

COLD-7101HV mini full hd video ip decoder ,hdmi & av video iptv encoder decoder





                COLD-7101HV mini full hd video ip decoder ,hd-mi & av video iptv encoder decoder





Outline



COL-D7101HV Mini HDMI&VGA IPTV decoder is most competitive cost and easy-to-use video streaming

decoding device. The product support IP input which compliants with RTSP, HTTP, UDP and RTMP protocols,

and 1 channel HDMI & VGA video output with 1080P. The product can be applied to education, health care,

IPTV, conference, remote education, news interview, banking, transportation and other industries.





Features

  •  1 channel HDMI &VGA output,
  •  Providing RTSP/RTP/HTTP/RTMP/UDP/ONVIF2.4 protocol
  •  Support resolution 1920x1080/1280x720/1280x1024/1280x960/704x57
  •  System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN64, LINUX
  •  Supports MP3 and AAC audio format selection
  •  decoding specification: BASELINE PROFILE / MAIN PROFILE/ HIGH PROFILE
  •  Support a click to restore the default configuration
  •  Support multiple devices display at the same time on a computer
  •  Support H.264 Main Profile/H.264 High Profile and AAC audio.
  •  Web control interface
  •  Comply with CBR/VBR 16KBIT/S~12MBIT/S standard
  •  Power less than 24W, low power watts designing.
  •  Support Network interface full-duplex mode 1000M



Technical Specification





Video

output

1 channel HDMI &VGA output, supports HDCP

Resolution

1920x1080/1280x720/1280x1024/1280x960/704x576

decoding

H.264/AVC High Profile Level 4.0(HMDI)

Video Bitrate

0.8Mbps~12Mbps

Bitrate mode

CBR/VBR

GOP type

Adjustable

Video

preprocessing

De-interlacing, noise reduction, sharpening



Audio



decoding

AAC,MP3

Resample Rate

Adaptive output sample rate (option)

32K, 44.1K, 48K, 64K, 96K, 128K, 160K, 192K

Sampling

24 bit

Bitrate

64Kb/s~384Kb/s

System

RJ45

1000M Ethernet port

Protocol

HTTP,UDP,RTSP,RTMP,ONVIF

Configuration

interface

WEB interface

Environment

Dimensions

(W×D×H): 146mm x 100mm x 45mm

Net Weight

0.5KG

Temperature

0~45℃(work), -20~80℃(Storage)

Power

Requirements

12V / DC

Power

consumption

5W







IPTV Encoder Series



Channel

Model No.

Simple Description

1 Channel

COL7101H

Mini 1 Channel H.264 HDMI IPTV Encoder

COL7101S

Mini 1 Channel H.264 HD SDI IPTV Encoder

COL7101HA

Mini 1 Channel H.264 HDMI+AV IPTV Encoder

COL7101HW

Mini 1 Channel H.264 HDMI+AV+WIFI IPTV Encoder

4 Channels

COL7104H

4 Channels H.264 HDMI IPTV Encoder

COL7104S

4 Channels H.264 HD SDI IPTV Encoder

COL7104HA

4 Channels H.264 HDMI+AV IPTV Encoder

COL7104HV

4 Channels H.264 HDMI+VGA IPTV Encoder

8 Channels

COL7108H

8 Channels H.264 HDMI IPTV Encoder

COL7108S

8 Channels H.264 HD SDI IPTV Encoder

16 Channels

COL7116H

16 Channels H.264 HDMI IPTV Encoder

COL7116S

16 Channels H.264 HD SDI IPTV Encoder

COL7116HA

16 Channels H.264 HDMI+AV IPTV Encoder





 ♦ new products ♦



COL7201HA Single Channel H.264 & H.265 HDMI+AV in

COL7201HV Single Channel H.264 & H.265 HDMI+VGA+YPbPr+AV in

All of them support:
RTSP,RTMP,HTTP,UDP,ONVIF IP out, HDCP,MP3 and AAC audio format selection






Our advantages



Products Qulity:  Most of our products get CE approved:set top box have report from State

Administration for Entry Exit Inspection and Quarantine.



Technical Support: Our R&D department is composed br the most experienced engineer with

young university graduate,bring new energy continuously. Customers will be informed at first

time as long as our software upgrade or new management software version come out .



Shipment Speed: All packages of orders will be shipped 2-5 days sfter customer deposit.

Usually we use the speediest DHL/UPS/Fedex for small order delivery,and we have  long

erm cooperated carriers for common air & sea delivery with cheap price and high speed.



Guarantee:All products will have life-long skill support ,head ends for free repair within 3 years.
