Home > Electrical & Electronics > Telecommunication & Broadcasting > Radio & TV Broadcasting > 4ch Tuner Descrambler and Transcoder COL5081TC

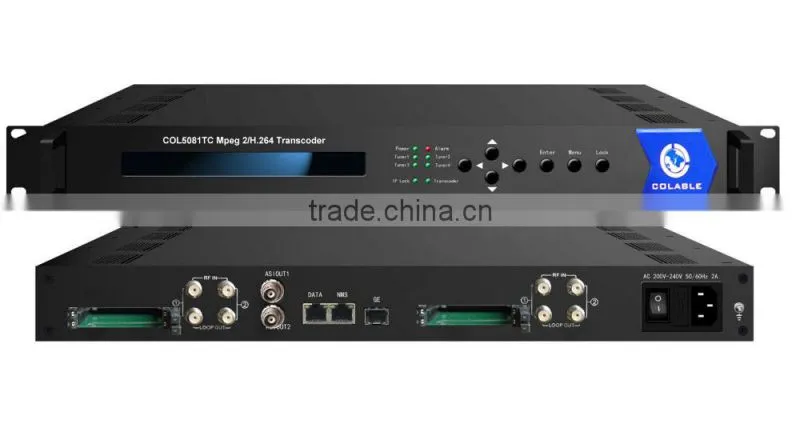

4ch Tuner Descrambler and Transcoder COL5081TC

Name: 4ch Tuner Descrambler and Transcoder COL5081TC
Brand: Colable
SKU: 132186187

4ch Tuner Descrambler and Transcoder COL5081TC thumbnail-1

4ch Tuner Descrambler and Transcoder COL5081TC photo-1

US$ 1 - 3,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Sichuan, China

Brand Name:

Colable

Model Number:

COL5081TC

Contact Supplier Request Quote Chat Now

Colable Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chengdu/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Sichuan, China

Brand Name Colable

Model Number COL5081TC

Model: COL5081TC4ch Tuner descrambler and transcoder

Outline

COL5081TC is a professional bidirectional trans-coder to convert video between H.264 and MPEG-2 format and also to trans-code between HD and SD programs simultaneously. It is equipped with 4 tuner inputs to receive channels directly from satellite. And, each tuner is accompanied with a CAM/CI slot to descramble the encrypt content.

In addition, IP content can also be received and trans-coding processed. COL5081TC will at last output MPTS & SPTS through the DATA port (net port) or ASI port.

This trans-coder supports advanced multiplexing and can effectively provide operators with real-time code rate switch and optimize the video with its high performance.

CC function has been embedded to transport your closed caption (or teletext).

It can be easily managed through web NMS system, and has become an ideal solution for operator to provide high quality video trans-coding.

Feature

Support 8*IP (SPTS/MPTS) input plus 4*tuners input with 4 CAM/CI slots
Support 8*SPTS & 1*MPTS (UDP/RTP/RTSP) output; 1 ASI output
Video Trans-coding: MPEG-2 SD/HD and H.264 SD/HD any-to-any
Audio Trans-coding: AAC and MP2 any-to-any or pass-through; AC3 pass through
Support maximal 8 SD or 4 HD programs trans-coding
Support maximal 8 channel audio trans-coding
Support HD and SD resolutions
Support CBR and VBR rate control
Support CC (closed caption)
Support BISS descrambling (Under Development)
Support IP out with null packet filtered
Advanced de-multiplexing
LCD & Key board local control; web-based NMS management

Specifications

Stream In	MPTS/SPTS over UDP/RTP, 1000M Base-T Ethernet Interface/SFP interface
	4 * (DVB-S/S2/C/T/ISDB-T/ATSC Optional) Tuners
BISS Descramble	8 programs (Under Development)
Video	Resolution	1920x1080P,1920x1080i,1280x720P, 720x576i, 720x480i 480x576, 544x576, 640x576, 704x576
	Trans-coding	4MPEG2 HD → 4MPEG2/H.264 HD ; 4MPEG2 HD → 4MPEG2/H.264 SD ; 8 MPEG2 SD → 8 MPEG2/H.264 SD
		4* H.264 HD → 4MPEG2/H.264 HD ; 4 H.264 HD → 4MPEG2/H.264 SD ; 8 H.264 SD → 8 *MPEG2/H.264 SD
	Rate Control	CBR/VBR
Audio	Trans-coding	MPEG-1 Layer 2 to AAC any-to-any; AC3 pass through
	Sampling rate	48KHz
	Bit Rate	64Kbps-384Kbps
Stream Out	8SPTS & 1MPTS over UDP/RTP/RTSP, 1000M Base-T Ethernet Interface (UDP/RTP uni-cast / multicast) /SFP interface
	1*ASI (as a copy of one of the 8 SPTS or the MPTS) output, BNC interface
System Function	LCD & Key board control; web-based NMS management
	Ethernet software upgrade
General	Dimensions		430mm×405mm×45mm (WxDxH)
	Approx weight		4.8 Kg
	Temperature range		0~45℃(Operation), -20~80℃(Storage)
	Power requirements		AC 200V-240V, 50/60Hz, 2A
	Power consumption		20W

Transcoding Mode Example:

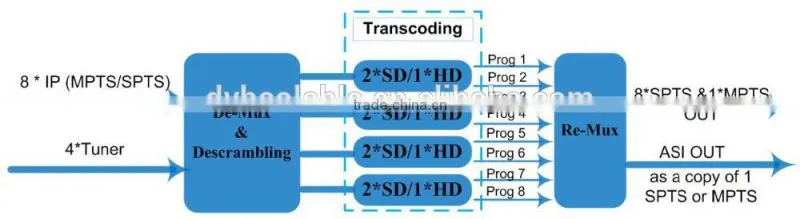

Principle Chart :

Application system:

-DVB-C cable tv system

-DVB-C IP networking system

-Terrestrial Broadcasting system

-IPTV stream Encoder (LAN)

Asking for more information? please feel free to directly chat with Betty.Li

Or move your finger and send an inquiry to Supplier on the right side.

We Colable Electronics co.,ltd

specialize in Digital TV broadcasting equipment for more than 10 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!

Our experience: Continuous experienced and reliable Team , Standing in DVB Head-end system solution more than 10 years.
Our product: FTA satellite receiver/decoder, Satellite descrambler (CI slot), Encoder, Multiplexer,Scrambler, Modulator, Transmitter,Antenna,Set top box.
Our service: Life-long Technical support.
Warranty: 1 years.
Lead time: 2-5 working days
