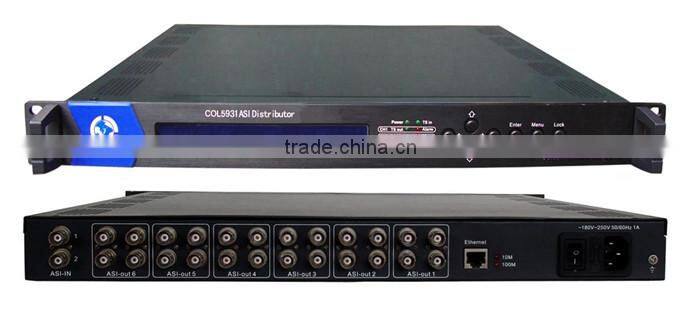

COL5931 TS distributor
Skype ID: yangting965
Outline
COL5931 TS distributor can process high-speed data of various interfaces and distribute them in order to establish the connections among digital TV head-end equipments.
distributor is used for distribution of DVB ASI interfaces.
Features
ü 2 ASI input
ü 6 groups TS output, including 4 channels per group
ü Status monitoring and alarming.
ü LCD display, keyboard and network management
ü NMS operation
Specifications
|
Interface |
Input interface |
DVB ASI |
|
Input interface number |
2 |
||
Output interface |
DVB ASI |
||
Output interface number |
24 |
||
Interface Specification |
ASI |
DVB Standard |
|
Code rate |
1-216Mbps |
||
Miscellaneous |
Dimension |
44mm x 482mm x 410mm |
|
Temperature |
0-45℃(Operation); -20 – 80℃ (Storage) |
||
Power |
220VAC± 10%, 50Hz, 10W |
||
Application
- MMDS digital TV head end
- Satellite digital TV broadcasting
- Terrestrial digital TV
- Image Supervise
- Video-On-Demand (VOD) Long-distance teaching
- Video Conference
Product Equipments
Testing Equipments
Package Process
Our experience: Plenty of practical experiences in building IPTV and DVB systems in many different countries
Our product: Satellite receiver/ Demodulator Decoder IRD, Encoder, Multiplexer, Scrambler, Modulator, Transmitter, Antenna, Set top box, IP Gateway, Transcoder, TS Analyzer, TS Distributor etc.
Our service: Life-long Technical support
Warranty: 1 years
Lead time: 2-5 working days
