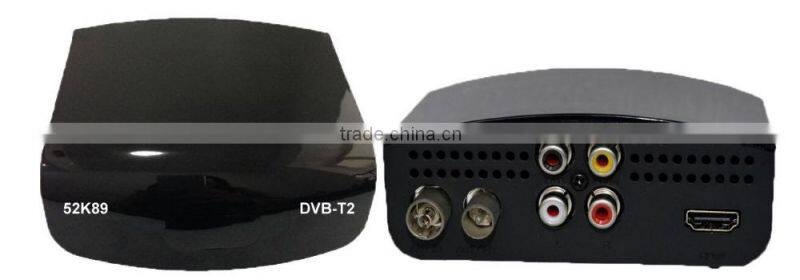

COL52K89 The Cheapest HD FTA DVB-T2 Set Top Box
Feature
- Video decoder: MPEG-4/H.264-L4.1, MPEG-2 MP-HL
- Audio decoder: AAC/HE-AAC/AC3,DD+(Optional)/PCM Compliant with DVB-T2 standard
- Full HD and HDMI 1.3/HDCP 1.1 Copy protection
- Media playback (AVI, WMA, Divx 4/5, MP3, JPEG and BMP)
- DVB Subtiling-ETSI 300473 Compliant and VBI/OSD teletext
- Favorite channel list edition
- EPG (Electronic Program Guide) with now & next and 7 days events ready
- Channel search with automatic/manual scan
- Logic Channel Number
- Low power consumption
- MHEG-5 support (Optional)
Specification
Tuner |
IF input frequency |
VHF: 174MHz - 230MHz UHF: 474MHz - 860MHz |
Bandwith |
7/8MHz |
|
Input level |
-83dBm |
|
Signal input |
IEC-type female |
|
|
Mpeg transport stream and A/V decoding |
Video standard |
MPEG-4 AVC/H.264 HP-L4 |
SCART video model CVBS/RGB (for Europe | ||
Aspect ratio |
4:3, 16:9 |
|
Video resolution |
576i, 576p, 720p and 1080i |
|
Audio standard |
ISO/IEC 14.496-3, AC3, AAC, AAC+ |
|
Audio mode |
mono, dual-channel, stereo |
|
Multimedia format |
Picture |
JPEG |
Audi |
MP3 |
|
Video |
DivX |
|
Front panel |
Display LED display USB firmware upgrade PVR and multimedia playback Channel decoding |
|
Standard |
DVB-T |
|
Demodulation |
QPSK, 16QAM, 64QAM |
|
FEC |
1/2, 2/3, 3/4, 5/6, 7/8, automatic |
|
Guard |
1/4,1/8,1/16,1/32 |
|
Mode |
2K, 8K |
|
Demultiplexer |
Standard ISO/IEC 13818-1 |
ARIB STB-B10 |
Input max. bit stream rate |
120Mbps (serial)/15MBps (parallel) |
|
Rear panel output |
HDMI output (576P/720P/1080P/AUTO) Loop through output: IEC-type, connector, single tuner (TV Scart, S-Video)optional, USB 2.0, CVBS L/R audio RCA Digital Coaxial Audio |
|
Our advantages
Products Qulity: Most of our products get CE approved:set top box have report from State
Administration for Entry Exit Inspection and Quarantine.
Technical Support:Our R&D department is composed br the most experienced engineer with
young university graduate,bring new energy continuously. Customers will be informed at first
time as long as our software upgrade or new management software version come out .
Shipment Speed: All packages of orders will be shipped 2-5 days sfter customer deposit.
Usually we use the speediest DHL/UPS/Fedex for small order delivery,and we have long
erm cooperated carriers for common air & sea delivery with cheap price and high speed.
Guarantee:All products will have life-long skill support ,head ends for free repair within 3 years.

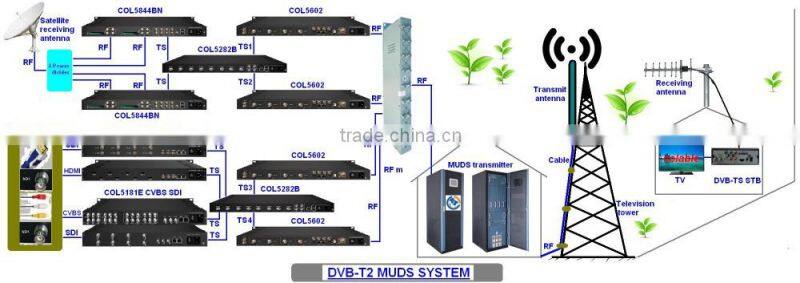

Some applications for reference
