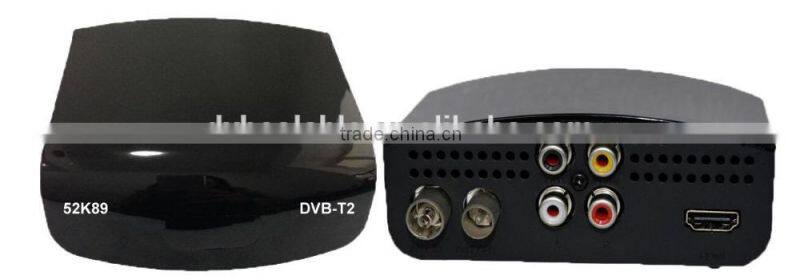

DVB-T2 Set Top Box Small Cheap Box COL52K89
Model: COL52K89 DVB-T2 set top box
Features
- Video decoder: MPEG-4/H.264_L4.1, MPEG-2 MP_HL
- Audio decoder: AAC/HE-AAC/AC3,DD+(Optional)/PCM Compliant with DVB-T2 standard
- Full HD and HDMI 1.3/HDCP 1.1 Copy protection
- Media playback (AVI, WMA, Divx 4/5, MP3, JPEG and BMP)
- DVB Subtiling-ETSI 300473 Compliant and VBI/OSD teletext
- Favorite channel list edition
- EPG (Electronic Program Guide) with now & next and 7 days events ready
- Channel search with automatic/manual scan
- Logic Channel Number
- Low power consumption
- MHEG-5 support (Optional)
Specification
Tuner |
IF input frequency |
VHF: 174MHz - 230MHz UHF: 474MHz - 860MHz |
Bandwith |
7/8MHz |
|
Input level |
-83dBm |
|
Signal input |
IEC-type female |
|
|
Mpeg transport stream and A/V decoding |
Video standard |
MPEG-4 AVC/H.264 HP_L4 |
SCART video model CVBS/RGB (for Europe | ||
Aspect ratio |
4:3, 16:9 |
|
Video resolution |
576i, 576p, 720p and 1080i |
|
Audio standard |
ISO/IEC 14.496-3, AC3, AAC, AAC+ |
|
Audio mode |
mono, dual-channel, stereo |
|
Multimedia format |
Picture |
JPEG |
Audi |
MP3 |
|
Video |
DivX |
|
Front panel |
Display LED display USB firmware upgrade PVR and multimedia playback Channel decoding |
|
Standard |
DVB-T |
|
Demodulation |
QPSK, 16QAM, 64QAM |
|
FEC |
1/2, 2/3, 3/4, 5/6, 7/8, automatic |
|
Guard |
1/4,1/8,1/16,1/32 |
|
Mode |
2K, 8K |
|
Demultiplexer |
Standard ISO/IEC 13818-1 |
ARIB STB-B10 |
Input max. bit stream rate |
120Mbps (serial)/15MBps (parallel) |
|
Rear panel output |
HDMI output (576P/720P/1080P/AUTO) Loop through output: IEC-type, connector, single tuner (TV Scart, S-Video)optional, USB 2.0, CVBS L/R audio RCA Digital Coaxial Audio |
|
Asking for more information? please feel free to directly chat with Betty.Li:
Or move your finger and send an inquiry to Supplier on the right side.
We Colable Electronics co.,ltd
specialize in Digital TV broadcasting equipment for more than 10 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!
Our experience: Continuous experienced and reliable Team , Standing in DVB Head-end system solution more than 10 years.
Our product: FTA satellite receiver/decoder, Satellite descrambler (CI slot), Encoder, Multiplexer,Scrambler, Modulator, Transmitter,Antenna,Set top box.
Our service: Life-long Technical support.
Warranty: 1 years.
Lead time: 2-5 working days
