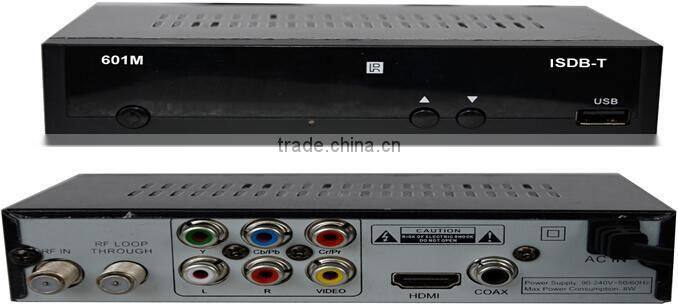

COFDM TV Receiver Box,FTA ISDB-T Set Top Box ,FTA STB COL601M

Name: COFDM TV Receiver Box,FTA ISDB-T Set Top Box ,FTA STB COL601M
Brand: Colable
SKU: 132184945
Availability: InStock

US$ 1 - 23 MOQ: 500 Pieces

Key Specifications

Brand Name:

Colable

Model Number:

COL601M

Place of Origin:

Sichuan, China

Colable Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chengdu

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Colable

Model Number COL601M

Place of Origin Sichuan, China

COL601M COFDM TV Receiver Box,FTA ISDB-T Set Top Box ,FTA STB

Feature

Supports all ISDB-T broadcast (1, 3, 13 segment), MPEG-2/MPEG-4 AVC/H.264 HD/SD Video , DiVX compliant
Compatible with 576i/576p/720p/1080i/1080p video formats
Auto and manually scan all available TV and radio channels
Aspect ratio 16:9 and 4:3, 1000 channels memory, parental control
HDMI, YPbPr, coaxial outputEPG (Electronic Program Guide) with now & next and 7 days events ready
Teletext/ Bit Map subtitle, compliant with ETS1
Supported 7-Day EPG function, VBI Teletext
Support 6MHz software setting Auto/Manual Program search, Multi-language
USB 2.0 for PVR, Software upgrade, Multimeida Playback
Demodulation: QPSK / 16QAM / 64QAM/QPSK or DQPSK;OFDM Reception Channel:: 13CH-62CH
Digital reception covers VHF & UHF band

Specification

Tuner(MXL)	IF input frequency	7-68 Ch (470mHz~806mHz)
	Bandwith	6MHz
	Input level	-90 ~ -5dBm
	Input impedance	50 Ω
Channel Decoding	Wave form	COFDM
	Demodulation	QPSK,16QAM,64QAM, QPSK or DQPSK
	FEC	1/ 2, 2/3, 3/4, 5/6, 7/8 Automatic
	Mode	2K, 4K, 8K
	Guard	1/4, 1/8, 1/16, 1/32
Demultiplexer	Standard	ISO/IEC13818-1, MPEG-4HE AAC
Demultiplexer	Input Max. TS	23.420Mbps
Video Decoding	Video resolution:1080i/720p/576p/576i(PAL),1080p720p/480p/480i(NTSC)
	Standard	ISO/IEC 13818-2, MPEG-2 MP@ML, H.264
	Aspect ratio	4:3, 16:9
	Video format	PAL / NTSC/ AUTO
Audio Decoding	Standard	ISO/IEC 13818-3
Audio Decoding	Decoding	MPEG-1 Layer I and II, MPEG-2, MPEG-4 AAC, MP3
Processor and Memory	CPU	Mstar 7816
	Frequency	216 MHz
	DDR RAM	512MB
	Flash Memory	32MB
	Video de-emphasis	CCIR REC.405-1, 1080i
AV Output	Video bandwidth	5.5 MHz
	Video output impedance	75 Ω
	Video output level	1.0Vp-p
	Audio output	Coaxial, L/R, HDMI
	Audio output frequency	20Hz ~ 20KHz
	Audio output impedance	Low
	Audio output level:	A 1.0Vrms ± 2dB into 10K
Hardware Interface	Indicators	Power, signal lock
	IR Receive	38KHz
	AV output	YUV, HDMI, Composite Video
	RF Input	EC-type IEC169-2 Female
	Loop Through Out	IEC-type IEC169-24 Male
	USB	USB1.1- USB2.0
	Power input Spec	90—260V AC 8W max
