Model: COL5844BN

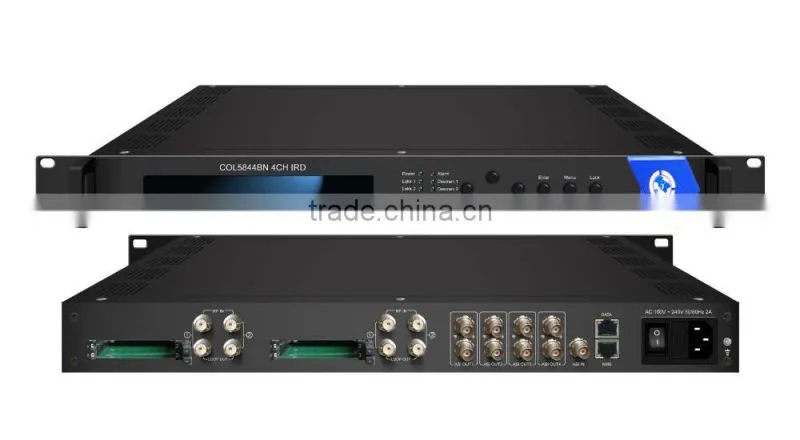

Digital Headend IP to ASI Gigabits IP gateway 4 IP in, 4 asi out
Outline
COL5844BN IRD is our new design which integrates demodulation (DVB-C, T/T2, S/S2 optional), de-scrambler and multiplexing in one case to convert RF signals into TS output.
It is a 1-U case which supports 4 tuner inputs, 1 ASI and IP. The 4 CAMs/CIs accompanied can descramble the programs input from encrypted RF, ASI and IP. The CAM requires NO unsightly external power cords, cables, or additional remote control device.
To meet customers’ various requirements, COL5844BN is also designed to de-mux programs from any input, and output TS over 48 SPTS UDP. & 4 MPTS UDP, RTP/RTSP
Feature
- 4 Tuner inputs (DVB-C, T/T2, S/S2 Optional)
- 1 ASI & 4 IP (UDP) input for de-mux
- One CAM can decrypt multiple programs from Tuners/ASI/IP
- IP (48 SPTS) over UDP and RTP/RTSP output;
- 4 groups of independent ASI out for tuner/IP passthrough (one-to-one)
- Support maximum 128 PID mapping per input
- LCD display, Remote control and Firmware, web NMS management
- Updates via web
- Best quality and breakthrough price
Specifications
Input |
4x RF (DVB-C, S/S2 optional), F type |
||
1×ASI input for de-mux, BNC interface | |||
|
4xIP input for de-mux (UDP) |
||
Tuner Section |
|
||
|
Standard |
J.83A(DVB-C), J.83B, J.83C |
|
DVB-C |
Input Frequency |
47 MHz~860 MHz |
|
Constellation |
16/32/64/128/256 QAM |
||
DVB-S |
Input Frequency |
950-2150MHz |
|
Symbol rate |
2-45Msps |
||
Signal Strength |
- 65- -25dBm |
||
Constellation |
1/2, 2/3, 3/4, 5/6, 7/8 QPSK |
||
DVB-S2 |
Input Frequency |
950-2150MHz |
|
Symbol rate |
QPSK 1~45Mbauds; 8PSK 2~30Mbauds |
||
Code rate |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
||
Constellation |
QPSK, 8PSK |
||
|
DVB-T/T2
|
Input Frequency |
44-1002 MHz |
|
Bandwidth |
6M, 7M, 8M |
||
Output |
IP |
48*SPTS over UDP, RTP/RTSP. 1000M Base-T Ethernet interface (unicast / multicast) 4*MPTS over UDP, RTP/RTSP. 1000M Base-T Ethernet interface, for RF in passthrough (one-to-one) |
|
ASI |
4 groups BNC interface, for RF or IP in passthrough (one-to-one) |
||
System |
Local interface |
LCD + control buttons |
|
Remote management |
Web NMS Management |
||
Language |
English |
||
General |
Power supply |
AC 100V~240V |
|
Dimensions |
482*400*44.5mm |
||
Weight |
3 kgs |
||
Operation temperature |
0~45℃ |
||
Typical application system:
To provide mpts ip stream source in IPTV headend
Asking for more information? please feel free to directly chat with Betty.Li:
Or move your finger and send an inquiry to Supplier on the right side.
We Colable Electronics co.,ltd
specialize in Digital TV broadcasting equipment for more than 10 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!
Our experience: Continuous experienced and reliable Team , Standing in DVB Head-end system solution more than 10 years.
Our product: FTA satellite receiver/decoder, Satellite descrambler (CI slot), Encoder, Multiplexer,Scrambler, Modulator, Transmitter,Antenna,Set top box.
Our service: Life-long Technical support.
Warranty: 1 years.
Lead time: 2-5 working days
