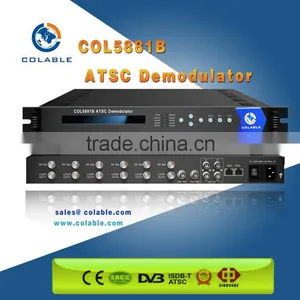

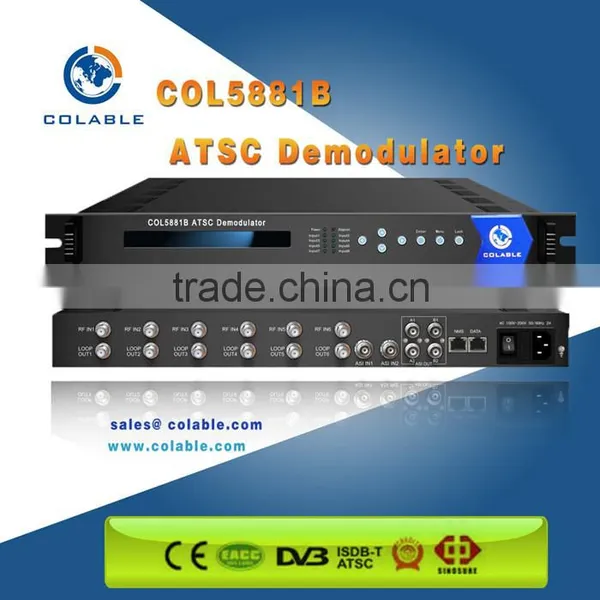

COL5881B FTA QPSK Demodulator(ATSC/ISDB tuner)
Skype ID: yangting965
We are providing complete solution for DVB-C/S/S2/T/T2 system, IPTV system.
Please add my Skype ID or send an inquiry, let's talk more details.
Outline
COL5881B FTA QPSK Demodulator has all the functions of normal TS multiplexer, including programs multiplexing, PSI/SI editing, PID re-mapping, service filtering etc. Also the device can insert EPG (Electronic Program Guide), CA (Conditional Access) and data casting information into each output stream. This device has 2 separate ASI output ports and one GE port for two separate gigabit IP outputs. Therefore, the bit rate of output stream can be up to 216Mbps.
Features
ü Fully complying with ISO13818 and EN300 468 standard
ü Integrated demodulating and multiplexing functions
ü 6 Tuners (DVB-C/DVB-S/DVB-S2 /DVB-T/T2/ISDB-T/ATSC Optional) input
ü Support BISS descrambling (IN DEVELOPING)
ü 2 channels TS input for re-multiplexing
ü SPTS and MPTS code stream multiplexing
ü Support accurate PCR adjusting
ü Support PID filtering, re-mapping
ü Two groups (each group has 2 channels)separate TS outputs
ü Support TS over UDP output as mirror of ASI output (RJ45), GE Port
ü Support PSI/SI rebuilding and editing
ü Huge buffer memory for saving the overflowing code stream
ü Supporting to multiplex one program to all outputs
ü Alarming function
ü Network long-distance upgraded
ü With high reliability design and stability operation
ü LCD/keyboard and net management, support NMS/SNMP
Specifications
Input interface |
2ASI+6 tuners (ISDB-T /ATSC /DVB-C /DVB-S /DVB-S2 /DVB-T / DVB-T2) |
|
8 ASI | ||
Re-multiplex |
2 channels TS re-multiplex |
|
PID re-mapping ( auto/manual optional) | ||
PCR accurate adjusting | ||
Automatic generating PSI/SI table | ||
Input |
Packet format |
204/188 self-adaption |
Output port |
ASI |
2 groups separate outputs (each group has 2 channels) |
IP |
TS over UDP output as mirror of ASI output (RJ45) |
|
PID |
Output range |
0x0000—0x1FFF |
PID transparent |
Any PID transparent and mapping achievable |
|
Amount of output PID per input |
64 |
|
NMS port |
Ethernet port |
10/100M |
General |
Demission(WxLxH) |
482mm×410mm×44mm |
Weight |
6kg |
|
Temperature |
0~45℃(operation),-20~80℃(storage) |
|
Power supply |
AC 110V±10%,50/60Hz Or AC 220V±10%,50/60Hz |
|
Consumption |
18W |
|
Application
- MMDS digital TV head end
- Satellite digital TV broadcasting
- Terrestrial digital TV
- Image Supervise
- Video-On-Demand (VOD) Long-distance teaching
- Video Conference
Product Equipments
Testing Equipments
Package Process
Our experience: Plenty of practical experiences in building IPTV and DVB systems in many different countries
Our product: Satellite receiver/ Demodulator Decoder IRD, Encoder, Multiplexer, Scrambler, Modulator, Transmitter, Antenna, Set top box, IP Gateway, Transcoder, TS Analyzer, TS Distributor etc.
Our service: Life-long technical support
Warranty: 1 year, basically our headend equipments can work as long as 10 years
Lead time: 2-5 working days
