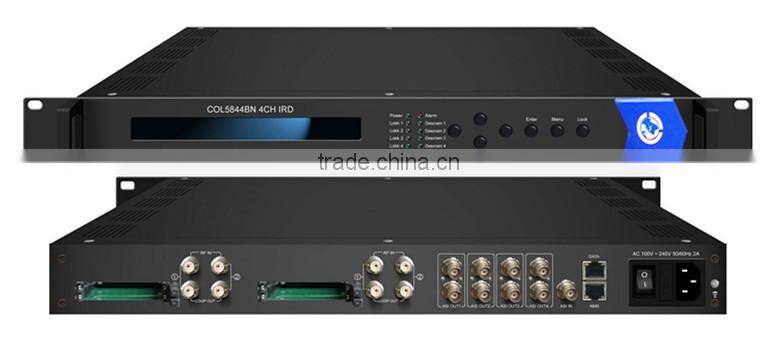

COL5844BN 4 Channels IP RF TV demodulator
Outline
COL5844BN IRD is our new design which integrates demodulation (DVB-C, T/T2, S/S2 optional), de-scrambler
and multiplexing in one case to convert RF signal into TS output.It is a 1U case which supports 4 tuner inputs,
1 ASI and IP.The 4 CAMs/CIs accompanied can descramble the programs input from encrypted RF,ASI and IP.
The CAM requires NO unsightly external power cords, cables, or additional remote control device. To meet
customers’ various requirements,COL5844BN is also designed to de-mux programs from any input,and output
TS over 48 SPTS UDP. & 4 MPTS UDP, RTP/RTSP.
Feature
- 4 Tuner inputs (DVB-C, T/T2, S/S2 Optional)
- 1 ASI & 4 IP (UDP) input for de-mux
- One CAM can decrypt multiple programs from Tuners/ASI/IP
- IP (48 SPTS) over UDP and RTP/RTSP output;
- 4 groups of independent ASI out for tuner/IP passthrough (one-to-one)
- Support maximum 128 PID mapping per input
- LCD display, Remote control and Firmware, web NMS management
- Updates via web
- Best quality and breakthrough price
Principle Chart
Specifications
|
Input
|
4x RF (DVB-C, S/S2 optional), F type |
||
1×ASI input for de-mux, BNC interface | |||
4xIP input for de-mux (UDP) | |||
Tuner Section |
|
||
DVB-C |
Standard |
J.83A(DVB-C), J.83B, J.83C |
|
|
Input Frequency |
47 MHz~860 MHz |
|
Constellation |
16/32/64/128/256 QAM |
||
DVB-S |
Input Frequency |
950-2150MHz |
|
Symbol rate |
2-45Msps |
||
Signal Strength |
- 65- -25dBm |
||
Constellation |
1/2, 2/3, 3/4, 5/6, 7/8 QPSK |
||
|
DVB-S2
|
Input Frequency |
950-2150MHz |
|
Symbol rate |
QPSK 1~45Mbauds; 8PSK 2~30Mbauds |
||
Code rate |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
||
Constellation |
QPSK, 8PSK |
||
DVB-T/T2 |
Input Frequency |
44-1002 MHz |
|
Bandwidth |
6M, 7M, 8M |
||
Output |
IP |
48*SPTS over UDP, RTP/RTSP. 1000M Base-T Ethernet interface (unicast / multicast) 4*MPTS over UDP, RTP/RTSP. 1000M Base-T Ethernet interface, for RF in passthrough (one-to-one) |
|
ASI |
4 groups BNC interface, for RF or IP in passthrough (one-to-one) |
||
System |
Local interface |
LCD + control buttons |
|
Remote management |
Web NMS Management |
||
Language |
English |
||
|
General
|
Power supply |
AC 100V~240V |
|
Dimensions |
482*400*44.5mm |
||
Weight |
3 kgs |
||
Operation temperature |
0~45℃ |
||
Our advantages
Products Qulity: Most of our products get CE approved:set top box have report from State
Administrationfor Entry Exit Inspection and Quarantine.
Technical Support: Our R&D department is composed br the most experienced engineer with
young university graduate,bring new energy continuously. Customers will be informed at first time
as long as our software upgrade or new management software version come out .
Shipment Speed: All packages of orders will be shipped 2-5 days sfter customer deposit. Usually
we use the speediest DHL/UPS/Fedex for small order delivery,and we have longerm cooperated
carriers for commonair & sea delivery with cheap price and high speed.
Guarantee: All products will have life-long skill support ,head ends for free repair within 3 years.
Some applications for reference
