ASI output dvb-t hd ird COL5811DN
(Skype ID: colable.sales008)
Outline

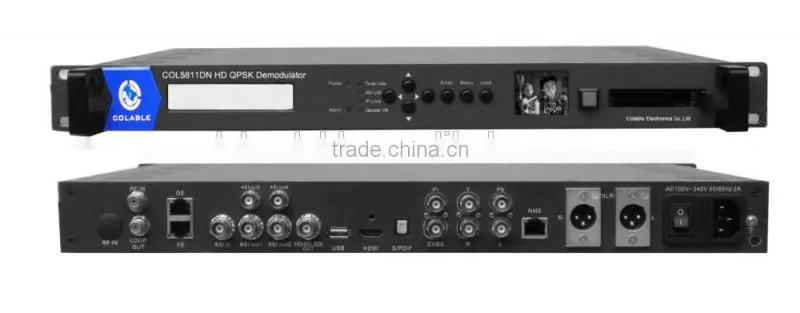

COL5811DN HD QPSK demodulator is our new design IRD with LCD video monitor equipped on the front panel. It can receive signals from tuner (DVB-C, DVB-T/T2, DVB-S/S2, DMB-T, ISDB-T, and ATSC-T optional), ASI and IP sources. After multiplexing and de-encryption with CAM module, it gives content out through ASI, IP as well as various video/audio interfaces. Its video/audio outputs support professional HD/SD-SDI, YPbPr, HDMI, stereo balanced audio, stereo unbalanced audio and S/PDIF digital audio and CVBS, which can greatly satisfy the professional users’ needs. With the CAM slot (CI) support, The COL5811DN can support one channel (Tuner, ASI or IP) de-scrambling and give transparent signal output. User can operate the device by using front panel LCD or NMS/SNMP software or Webpage-based NMS. Moreover, users can choose to have an optional ASI output which can pass through the encryption data source directly from tuner.
Features
- Support DVB-C, DVB-T/T2, DVB-S/S2, DMB-T, ISDB-T, and ATSC-T RF Input
- Support LCD display for decoding video
- Various tuner standard available
- Support MPEG-2 & MPEG-4 video decoding
- Support AC3 pass through
- Re-multiplexer embedded
- Support Tuner, IP, ASI Input at the same time
- Support IP, ASI, Decoding output at the same time
- Support 8xSPTS/32xSPTS and1 IP MPTS output
- Support CAM card insert (CI)
- Support BISS descrambling
- Support CC (Closed Caption)
- Support Front Panel and NMS/SNMP network management and Web management
Specifications
Input Interface |
Tuner |
1 Tuner (DVB-C/DVB-S/ DMB-T/DVB-T/ DVB-S2/ ISDB-T/ATSC-T / DVB-T2 optional) DVB-C: 47 MHz~860 MHz, 16/32/64/128/256 QAM DVB-S: 950 MHz~2150 MHz, symbol rate: 2~45Mbauds DMB-T: 146MHz ~862 MHz, 6/7/8 M bandwidth DVB-T: 146MHz ~862 MHz, 6/7/8 M bandwidth DVB-S2: 950 MHz~2150 MHz, symbol rate: QPSK 1~45Mbauds, 8PSK 2~30Mbauds ISDB-T: 153 MHz ~862 MHz, 6/7/8M bandwidth ATSC-T: 54MHz~858MHz, 6M bandwidth DVB-T2: 44MHz ~1002 MHz, 6/7/8 M bandwidth |
||
ASI |
1 ASI IN(support 188/204 package format) |
|||
IP |
1 IP over UDP, RTP/RTSP (100M, RJ45 Port) |
|||
Output |
ASI Output |
2 ASI output(after multiplexer) |
||
2 ASI output(tuner input pass through) | ||||
|
IP output (UDP, RTP/RTSP) |
1 MPTS output |
|||
8 SPTS output | ||||
Video Output |
1xCVBS(BNC): 576i 25fps, 480i 29.97fps |
|||
1xYPbPr(BNC): 1080i 25, 29.97, 30fps; 720p 50, 59.94fps | ||||
1xHD/SD-SDI(BNC): 1080i 25, 29.97, 30fps; 720p 50, 59.94fps; 576i 25fps; 480i 29.97fps | ||||
1 x HDMI: 1080i 25, 29.97, 30fps; 720p 50, 59.94fps | ||||
Audio Output |
Stereo unbalanced audio: BNC interface Stereo balanced audio: XLR interface Digital audio: SPDIF |
|||
Video Decoding |
MPEG-2, MPEG-4 (4:2:0) |
|||
Audio Decoding |
MPEG1 layer 2, AC3, HE-AAC(v2), LC-AAC |
|||
NMS Port |
Ethernet Port |
10/100M |
||
Protocols |
TS Over IP: UDP NMS: TCP/IP |
|||
System |
Management: front panel (LCD + Keyboard); Network (NMS/SNMP); Web Management |
|||
English and Chinese interface conversion | ||||
|
Ethernet port for CPU/FPGA upgrade USB port for decoder upgrade | ||||
LCD Monitor for decoding video | ||||
Miscellaneous |
Dimensions |
482mm*455mm*44.5mm ( L×W×H) |
||
Approx weight |
3.2kg |
|||
Power |
<20W(Max) |
|||
Temperature |
0~45℃(Operating), -20~80℃(Storage) |
|||

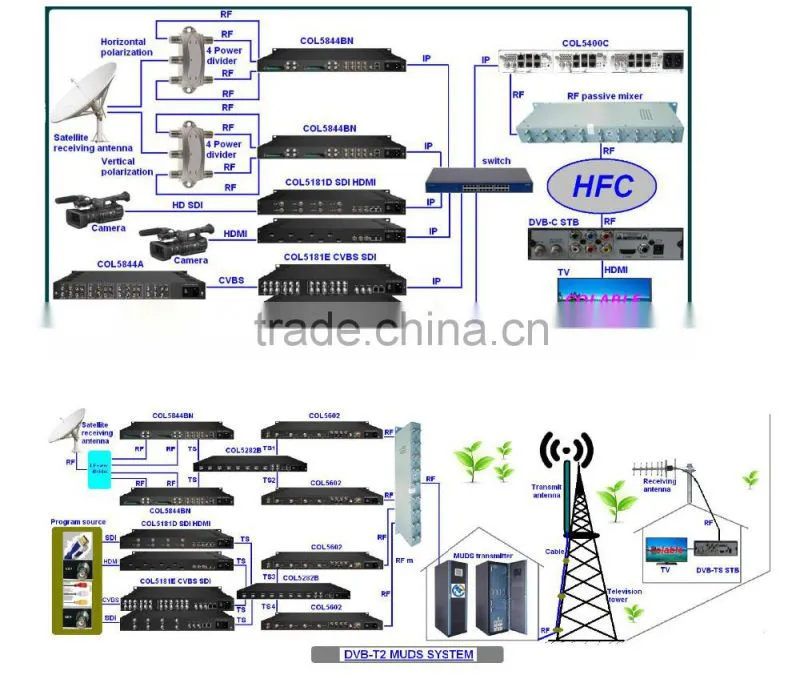

Typical application system:
Asking for more information? please feel free to directly chat with Betty.Li:
Or move your finger and send an inquiry to Supplier on the right side.
We Colable Electronics co.,ltd
specialize in Digital TV broadcasting equipment for more than 10 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!
Our experience: Continuous experienced and reliable Team , Standing in DVB Head-end system solution more than 10 years.
Our product: FTA satellite receiver/decoder, Satellite descrambler (CI slot), Encoder, Multiplexer,Scrambler, Modulator, Transmitter,Antenna,Set top box.
Our service: Life-long Technical support.
Warranty: 1 years.
Lead time: 2-5 working days
