IP multiplexer
*IP Multiplexer with 512 channels ip input and 2 asi ip output*
Skype ID: colable.sales008 Whatsapp: +8615928631862
Outline

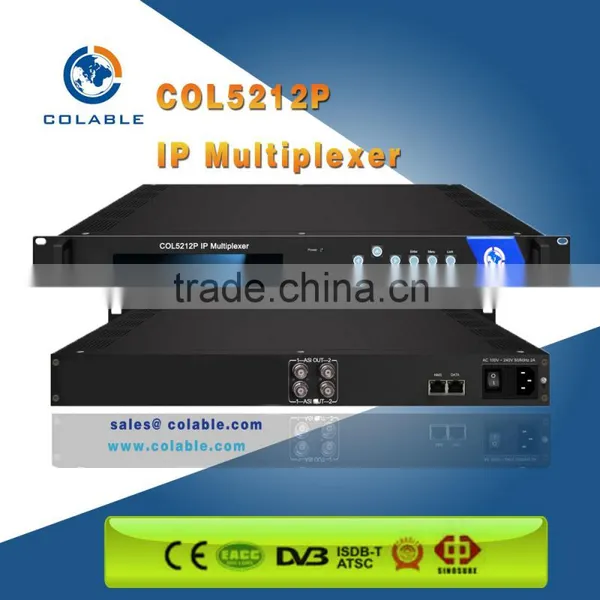

COL5212P IP multiplexer is a professional TS processor used in digital TV broadcasting head-end system. It receives up to 512 IP (SPTS/MPTS) channels and multiplexes the input programs into 2 TS stream output inserted with EPG (electronic program guide), CA (conditional access), data broadcasting and etc.
It can be controlled and upgraded via web management in addition to front panel keyboard.
Features
- Fully complying with ISO13818 and EN300 468 standard
- 512 IP (SPTS/MPTS) input over UDP
- 2 independent groups of ASI output (each group has 2 ports)
- 2 IP output over UDP
- Support accurate PCR adjusting
- Support PID passthrough, re-mapping, multiplex up to 2048 PIDs per out channel
- Support PSI/SI rebuilding and editing
- Huge buffer memory for saving the overflowing code stream
- LCD/keyboard and Web-based NMS management
Working Principle:
Specifications
Input |
IP (RJ45,GE) |
512 x MPTS/SPTS, Unitcast/Multicast, UDP Protocol IGMP V2/V3 |
Re-multiplex |
PID re-mapping (auto or manually available) |
|
PCR accurate adjusting | ||
Automatic generating PSI/SI table | ||
PID passthrough | ||
Support multiplex maximum 2048 PIDs each output channel | ||
Output port |
ASI |
2 x independent channels of ASI output (each channel has 2 ports) (up to 210Mbps) |
IP(RJ45,GE) |
2 x IP (Unitcast/Multicast), UDP Protocol (up to 230Mbps) |
|
NMS port |
Ethernet port |
GE |
General |
Demission |
482mmx410mmx44mm(WxLxH) |
Weight |
2.0kg |
|
Temperature |
0~45℃(operation), -20~80℃(storage) |
|
Power supply |
110VAC±10%,50/60Hz; 220VAC±10%,50/60Hz |
|
Consumption |
<25w |
|
Application system:
-DVB-C cable tv system
-DVB-C IP networking system
-Terrestrial Broadcasting system
Asking for more information? please feel free to directly chat with Betty.Li:
Or move your finger and send an inquiry to Supplier on the right side.
