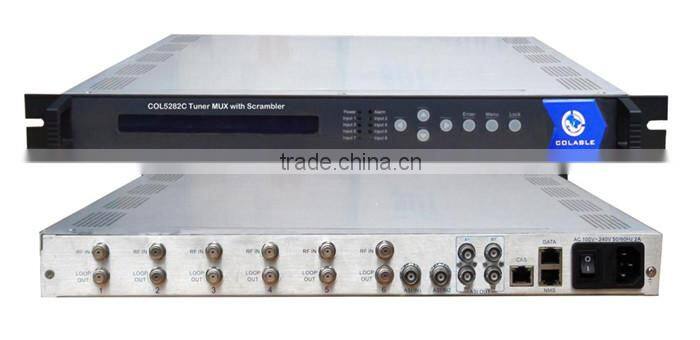

Help CenterTS Multiplexer Scrambler, Two Separate Gigabit IP Outputs 6 Tuner+2 ASI Input or 8 ASI Input 4 CA
Related Products
-
ASI Multiplexer Built-in Scrambler With Up to 8 ASI Inputs, ASI and IP OutputUS$ 1 - 999MOQ: 1 Set -
8 Channels Multiplexer Digital tv Scrambler With Up to 4 CASUS$ 1 - 999MOQ: 1 Set
-
ASI to IP Multiplexer Simulcrypt Scrambler(8*ASI In,1*MPTS IP/Gigabit Out)US$ 1 - 999MOQ: 1 Set
-
IP TS Multiplexer and Scrambler Support 4 Simulcrypt CAUS$ 1 - 999MOQ: 1 Set
-
Digital TV HeadEnd Equipment 8-input 2-output IP Multiplexer and ScramblerUS$ 1 - 999MOQ: 1 Set

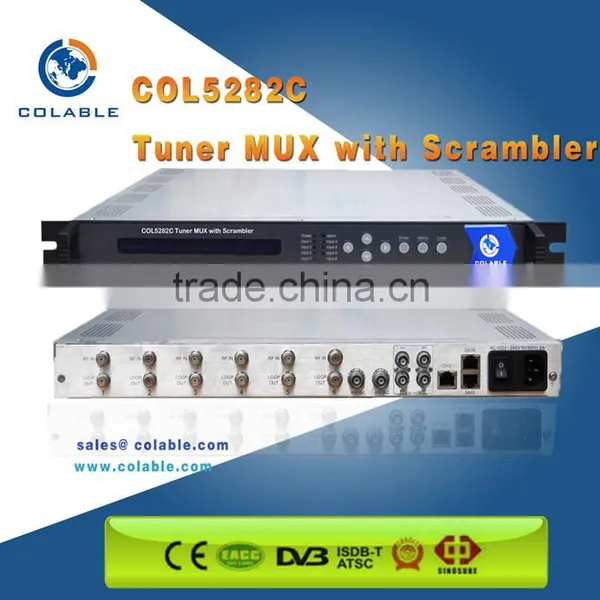

COL5282C Tuner Mux with scrambler
Skype ID: yangting965
Outline
COL5282C Tuner Mux with scrambler is the latest multiplexing and scrambling device for digital TV broadcasting head-end system. The mux-scrambler 2 groups of ASI output and 2 corresponding IP output (share one megabits DATA port, RJ45 interface). In conclusion, its high integration and cost effective design make this device widely used in the Next Generation of CATV Broadcasting system.
Features
ü Fully comply with ISO13818 and EN300468 standard
ü Integrated multiplexing and scrambling functions
ü 6 tuner inputs ( tuner can be DVB-S/DVB-S2/DVB-C/ISDB-T)+2 ASI inputs or 8ASI input
ü Support 2 channels TS re-multiplexing
ü SPTS and MPTS code stream multiplexing
ü Supports accurate PCR adjusting
ü Support PID filtering, re-mapping
ü Two groups( each group has 2 channels) separate TS output
ü TS over UDP output as mirrors of ASI outputs(RJ45)
ü Supports PSI/SI rebuilding, editing
ü Supports DVB general scrambling system (ETR289), simulcrypt standards ETSI 101 197 and ETSI 103 197
ü Support 4 different simulcrypt CAS
ü Supports CAS remote connection scrambling
ü Supports huge buffer memory and resists unexpected code stream
ü Supports multiplexing the same program to all the output channels
ü Alarming function
ü Supports network remote upgrading
ü LCD/keyboard and net management, support NMS/SNMP
Specifications
Input interface |
Tuner |
6 tuners (DVB-S/ DVB-C / DVB-S2/ISDB-T optional) |
COL5282C |
ASI |
2 ASI |
||
8ASI |
COL5282CA |
||
Re-multiplex |
2 channels TS re-multiplex |
||
PID re-mapping ( auto/manual optional) | |||
PCR accurate adjusting | |||
Automatically generating PSI/SI table | |||
Input |
Packet format |
204/188 self-adaption |
|
Scrambling |
Simul-crypt CA |
4 |
|
Standard |
ETR289, ETSI 101 197, ETSI 103 197 |
||
Connection |
Local/Remote connect |
||
Output port |
ASI |
2 groups separate outputs (each group has 2 channels) |
|
IP |
TS over UDP output as mirror of ASI output (RJ45) |
||
PID |
Output range |
0x0000—0x1FFF |
|
Amount of output PID per input |
64 |
||
NMS port |
Ethernet port |
10/100M |
|
Miscellaneous |
Demission(LxWxH) |
482mm×410mm×44mm |
|
Weight |
4kg |
||
Temperature |
0~45℃(operation),-20~80℃(storage) |
||
Power supply |
AC 110V±10%,50/60Hz Or AC 220V±10%,50/60Hz |
||
Consumption |
≈18W |
||
Application
- MMDS digital TV head end
- Satellite digital TV broadcasting
- Terrestrial digital TV
- Image Supervise
- Video-On-Demand (VOD) Long-distance teaching
- Video Conference
Product Equipments
Testing Equipments
Package Process
Our experience: Plenty of practical experiences in building IPTV and DVB systems in many different countries
Our product: Satellite receiver/ Demodulator Decoder IRD, Encoder, Multiplexer, Scrambler, Modulator, Transmitter, Antenna, Set top box, IP Gateway, Transcoder, TS Analyzer, TS Distributor etc.
Our service: Life-long Technical support
Warranty: 1 years
Lead time: 3-5 working days
