Digital TV Headend TS Tuner Multiplexer With Scrambler COL5282C

Name: Digital TV Headend TS Tuner Multiplexer With Scrambler COL5282C
Brand: Colable
SKU: 132183239
Availability: InStock

US$ 1 - 1,499 MOQ: 1 Set

Key Specifications

Brand Name:

Colable

Model Number:

COL5282C

Place of Origin:

Sichuan, China

Colable Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chengdu

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Colable

Model Number COL5282C

Place of Origin Sichuan, China

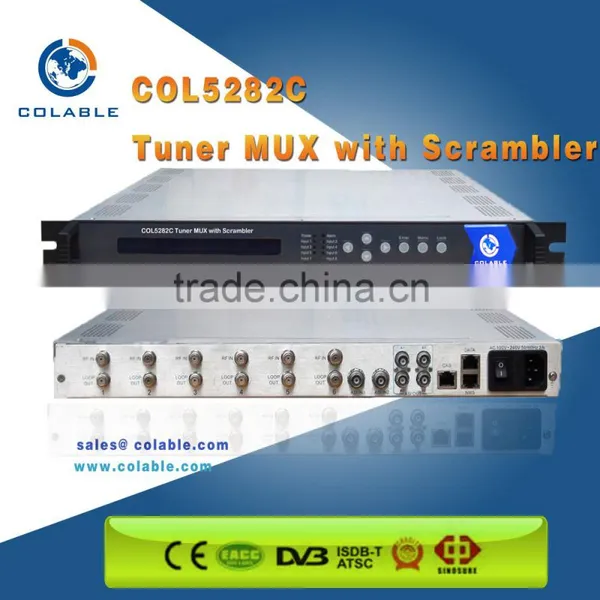

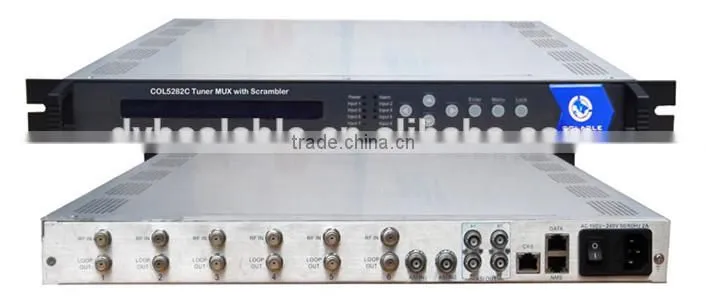

COL5282C Digital TV Headend TS Tuner Multiplexer with Scrambler

Outline

COL5282C Tuner Mux with scrambler is the latest multiplexing and scrambling device for digital TV

broadcasting head-end system. The mux-scrambler 2 groups of ASI output and 2 corresponding

IP output (share one megabits DATA port, RJ45 interface). In conclusion, its high integration and

cost effective design make this device widely used in the Next Generation of CATV Broadcasting system.

Features

Fully comply with ISO13818 and EN300468 standard
Integrated multiplexing and scrambling functions
6 tuner inputs ( tuner can be DVB-S/DVB-S2/DVB-C/ISDB-T)+2 ASI inputs or 8ASI input
Support 2 channels TS re-multiplexing
SPTS and MPTS code stream multiplexing
Supports accurate PCR adjusting
Support PID filtering, re-mapping
Two groups( each group has 2 channels) separate TS output
TS over UDP output as mirrors of ASI outputs(RJ45)
Supports PSI/SI rebuilding, editing
Supports DVB general scrambling system (ETR289),simulcrypt standards ETSI101197 & ETSI103197
Support 4 different simulcrypt CAS
Supports CAS remote connection scrambling
Supports huge buffer memory and resists unexpected code stream
Supports multiplexing the same program to all the output channels
Alarming function
Supports network remote upgrading
LCD/keyboard and net management, support NMS/SNMP

Specifications

Input interface	Tuner	6 tuners (DVB-S/ DVB-C / DVB-S2/ISDB-T optional)	COL5282C
	ASI	2 ASI
		8ASI	COL5282CA
Re-multiplex		2 channels TS re-multiplex
		PID re-mapping ( auto/manual optional)
		PCR accurate adjusting
		Automatically generating PSI/SI table
Input	Packet format	204/188 self-adaption
Scrambling	Simul-crypt CA	4
	Standard	ETR289, ETSI 101 197, ETSI 103 197
	Connection	Local/Remote connect
Output port	ASI	2 groups separate outputs (each group has 2 channels)
	IP	TS over UDP output as mirror of ASI output (RJ45)
PID	Output range	0x0000—0x1FFF
	Amount of output PID per input	64
NMS port	Ethernet port	10/100M
Miscellaneous	Demission(LxWxH)	482mm×410mm×44mm
	Weight	4kg
	Temperature	0~45℃(operation),-20~80℃(storage)
	Power supply	AC 110V±10%,50/60Hz Or AC 220V±10%,50/60Hz
	Consumption	≈18W
