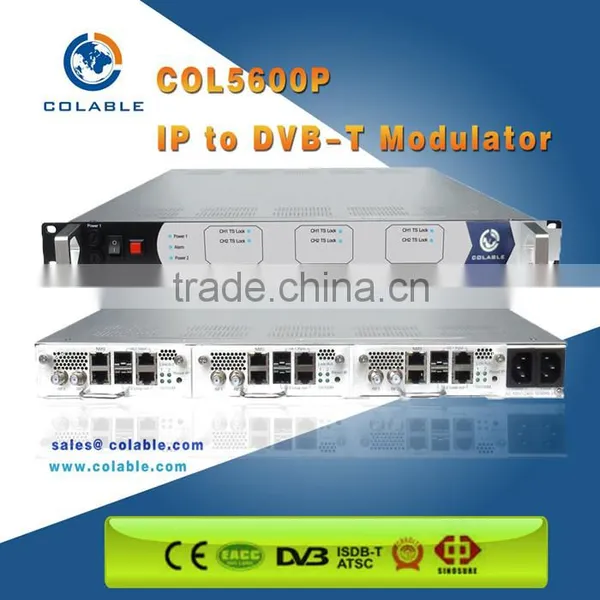

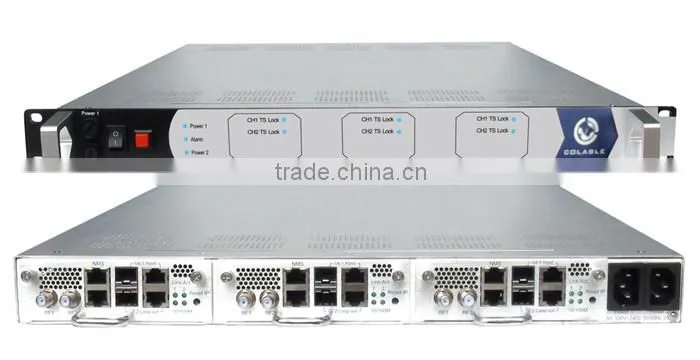

COL5600P IP to DVB-T Modulator
Skype ID: yangting965
We are providing the total solution for Digital cable TV system, Digital MMDS TV station, Wireless DVB-T/T2 System, IPTV system, welcome to contact with us for more further information.
Outline
COL5600P IP to DVB-T Modulator is one of the latest generation mux-modulating all-in-one device. The modular design of this device makes each of its daughter cards stand-alone when operating. Each daughter card can receive the UDP format TS through GE port, and support up to 256 different input address (IP address and port number). It’s like the all-in-one device combined with 4 multiplexers, (256 channels inputs) and 4 DVB-T modulators, which can output 4 carriers (30M~860M) through the two RF output interfaces. Additionally, 1U chassis supports up to 3 modules (12 channels mux-modulation) while the 4U chassis supports up to 12 modules (48 channels mux-modulation). This COL5600P IP Mux and modulating module has excellent integrated level, powerful performance and low cost, which is especially adequate for the new generation IP CATV system.
Features
- Dual power supply
- Max 840Mbps for all input
- Supports 4 channels multiplexing
- 1 GE input, RJ45interface or SFP
- Supports up to 256 channels TS input over UDP, MPTS or SPTS
- Supports unicast and multicast, supports IGMP v2v3
- Supports accurate PCR adjusting
- Supports PID filtering, remapping and PSI/SI editing
- Supports up to 180 PIDS remapping per channel
- 4 DVB-T carriers output ,compliant to ETSI EN300 744 standard
- RF output frequency range: 30~860Mhz, 1Khz stepping
- RF output level: -16~0dbm (per DVB-T carrier), 0.5db stepping
- Excellent RF performance, MER≥40db
- Modular design,1U chassis support 3 modules , 4U chassis support 12 modules
Specifications
Input |
Interface |
1GE(RJ45) or 1 SFP input port, hot backup |
Transport Protocol |
TS over UDP, unicast and multicast, IGMP V2/V3 |
|
Transmission Code |
Max 840Mbps for all channels |
|
MUX |
Input Channel |
256 |
Output Channel |
4 |
|
Max PIDs |
180 per channel |
|
Functions |
PID remapping (auto/manually optional) |
|
PCR accurate adjusting | ||
PSI/SI table automatically generating | ||
|
Modulation Parameters |
Channel |
4 |
Modulation Standard |
ETSI EN300 744 |
|
Constellation |
QPSK/16QAM/64QAM |
|
Trans mode |
2K/4K/8K |
|
FEC |
1/2,2/3,3/4,5/6,7/8 |
|
RF Output |
Interface |
2 F typed output port (per port 2 adjacent carriers) |
RF Range |
30~860MHz, 1kHz stepping |
|
Output Level |
-16~0dbm (per DVB-T carrier), 0.5db stepping |
|
MER |
≥ 40dB |
|
ACLR |
-55 dBc |
|
System |
Network management software (SNMP) supporting |
|
General |
Demission (WxLxH) |
630mm*440mm*44.5mm |
Weight |
9kg |
|
Temperature |
0~45℃(operation),-20~80℃(storage) |
|
Power Supply |
AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz |
|
Consumption |
15.4W |
|
Application
- MMDS digital TV head end
- Satellite digital TV broadcasting
- Terrestrial digital TV
- Image Supervise
- Video-On-Demand (VOD) Long-distance teaching
- Video Conference
Product Equipments
Testing Equipments
Package Process
Our experience: Plenty of practical experiences in building IPTV and DVB systems in many different countries
Our product: Satellite receiver/ Demodulator Decoder IRD, Encoder, Multiplexer, Scrambler, Modulator, Transmitter, Antenna, Set top box, IP Gateway, Transcoder, TS Analyzer, TS Distributor etc.
Our service: Life-long Technical support
Warranty: 1 years
Lead time: 2-5 working days
