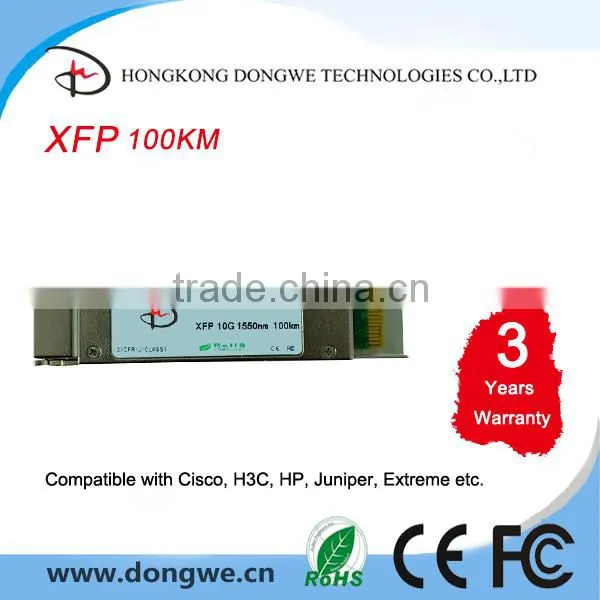

10Gbps XFP 1550nm 100km Module Transceiver Compatible With Cisco H3C Juniper Etc.

10Gbps XFP 1550nm 100km Module Transceiver Compatible With Cisco H3C Juniper Etc. thumbnail-1
10Gbps XFP 1550nm 100km Module Transceiver Compatible With Cisco H3C Juniper Etc. photo-1
US$ 600 - 1,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
DONGWE
Model Number:
DW-D9655-100CX
Contact Supplier Request Quote Chat Now
Shenzhen Dongwe Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DONGWE
Model Number DW-D9655-100CX



10Gbps XFP 1550nm 100km Module transceiver compatible with Cisco H3C Juniper etc.



Product Description

 Features

  • XFP MSA Rev 4.5 Compliant
  • Data rate from 9.95Gbps to 11.3Gbps
  • No Reference Clock required
  • Cooled 1550 nm EML and APD receiver
  • link length up to 100km
  • +1.8V,+3.3V,+5V Supply Voltage
  • Low Power Dissipation 2W Maximum
  • XFI and lineside loopback Mode Supported
  • -5ºC to 70ºC Operating Case Temperature
  • -40ºC to 85ºC Industrial Temperature
  • Diagnostic Performance Monitoring of module temperature, Supply Voltages, laser bias current, transmit optical power, and receive optical power
  • RoHS6 compliant (lead free)

Applications

¨       SONET OC-192&SDH STM 64 (with/with out FEC)

¨       10GBASE ZR/ZW (with/with out FEC)

¨       10G Fiber Channel



Detail Description

DONGWE 100km XFP Transceiver exhibits excellent wavelength stability, Designed for 10G SDH/SONET, 10GBASE-ZR and 10G Fiber- Channel applications.



The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. DONGWE XFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.



Ordering Information
Part Number Product Description
 DW-D9685-03CX  XFP, 10G, 850nm, 300m,  0ºC ~ +70ºC, with DDM/DOM
 DW-D9631-02CX  XFP, 10G, 1310nm, 2km,  0ºC ~ +70ºC, with DDM/DOM
 DW-D9631-10CX

 XFP, 10G, 1310nm, 10km,  0ºC ~ +70ºC, with DDM/DOM
 DW-D9655-40CX  XFP, 10G, 1550nm, 40km,  0ºC ~ +70ºC, with DDM/DOM
 DW-D9655-80CX  XFP, 10G, 1550nm, 80km,  0ºC ~ +70ºC, with DDM/DOM
 DW-D9655-100CX  XFP, 10G, 1550nm, 100km,  0ºC ~ +70ºC, with DDM/DOM
BIDI XFP
 DW-S9623-10CX   BIDI XFP, 10G, 1270TX/1330RX, 10km,  0ºC ~ +70ºC, with DDM/DOM
 DW-S9632-10CX   BIDI XFP, 10G, 1330TX/1270RX, 10km,  0ºC ~ +70ºC, with DDM/DOM

 DW-S9623-20CX   BIDI XFP, 10G, 1270TX/1330RX, 20km,  0ºC ~ +70ºC, with DDM/DOM
 DW-S9632-20CX   BIDI XFP, 10G, 1330TX/1270RX, 20km,  0ºC ~ +70ºC, with DDM/DOM

 DW-S9623-40CX   BIDI XFP, 10G, 1270TX/1330RX, 40km,  0ºC ~ +70ºC, with DDM/DOM
 DW-S9632-40CX   BIDI XFP, 10G, 1330TX/1270RX, 40km,  0ºC ~ +70ºC, with DDM/DOM

 DW-S9623-60CX   BIDI XFP, 10G, 1270TX/1330RX, 60km,  0ºC ~ +70ºC, with DDM/DOM
 DW-S9632-60CX   BIDI XFP, 10G, 1330TX/1270RX, 60km,  0ºC ~ +70ºC, with DDM/DOM
CWDM XFP

 DW-D96CXX-10CX

 (XX=27/29/31/33)

  CWDM XFP, 10G, 1270~1330nm, 10km,  0ºC ~ +70ºC, with DDM/DOM


 DW-D96CXX-40CX

 (XX=47~61)

  CWDM XFP, 10G, 1470~1610nm, 40km,  0ºC ~ +70ºC, with DDM/DOM


 DW-D96CXX-80CX

 (XX=47~61)

  CWDM XFP, 10G, 1470~1610nm, 80km,  -5ºC ~ +70ºC, with DDM/DOM
DWDM XFP

 DW-D96DXX-40CX

 (XX=17~61)



DWDM XFP, 10G, 1528.77~1563.86nm, 40km,  -5ºC ~ +70ºC, with DDM/DOM





 DW-D96DXX-80CX

 (XX=17~61)

   DWDM XFP, 10G, 1528.77~1563.86nm, 80km,  -5ºC ~ +70ºC, with DDM/DOM


 DW-D96DXX-12CX

 (XX=17~61)

   DWDM XFP, 10G, 1528.77~1563.86nm, 120km,  -5ºC ~ +70ºC, with DDM/DOM
Compatible Brands

10Gbps XFP 1550nm 100km Module transceiver compatible with Cisco H3C Juniper etc.

Product Serial

10Gbps XFP 1550nm 100km Module transceiver compatible with Cisco H3C Juniper etc.

           GBIC



10Gbps XFP 1550nm 100km Module transceiver compatible with Cisco H3C Juniper etc.

SFP

10Gbps XFP 1550nm 100km Module transceiver compatible with Cisco H3C Juniper etc.

                      SFP+

10Gbps XFP 1550nm 100km Module transceiver compatible with Cisco H3C Juniper etc.

                  XFP

10Gbps XFP 1550nm 100km Module transceiver compatible with Cisco H3C Juniper etc.

                    X2

10Gbps XFP 1550nm 100km Module transceiver compatible with Cisco H3C Juniper etc.

                 Xenpak

10Gbps XFP 1550nm 100km Module transceiver compatible with Cisco H3C Juniper etc.

                QSFP

10Gbps XFP 1550nm 100km Module transceiver compatible with Cisco H3C Juniper etc.

  SFP GPON ONU/OLT

10Gbps XFP 1550nm 100km Module transceiver compatible with Cisco H3C Juniper etc.

          10G Converter



10Gbps XFP 1550nm 100km Module transceiver compatible with Cisco H3C Juniper etc.

               CSFP

10Gbps XFP 1550nm 100km Module transceiver compatible with Cisco H3C Juniper etc.

   Direct Attach Cable


Package and Shipment

10Gbps XFP 1550nm 100km Module transceiver compatible with Cisco H3C Juniper etc.

Shipment:

International  Express: DHL, FedEx, UPS, TNT and EMS optional

Factory Show

10Gbps XFP 1550nm 100km Module transceiver compatible with Cisco H3C Juniper etc.

Our Service

      1.  Competitive price

      2.  3 years warranty
        3.  Reply your inquiry within 2 hours
      4.  Have large quantity modules in stock, delivery fast
      5.  Label can be customized, also ODM and OEM service offered
      6.  100% new material and good quality
      7.  Can be compatible with a lot of brands like Cisco, HP, H3C, Extreme, Juniper etc.
      8.  Capacity: 10,000pcs/day
      9.  Certificates below:

      10Gbps XFP 1550nm 100km Module transceiver compatible with Cisco H3C Juniper etc.
