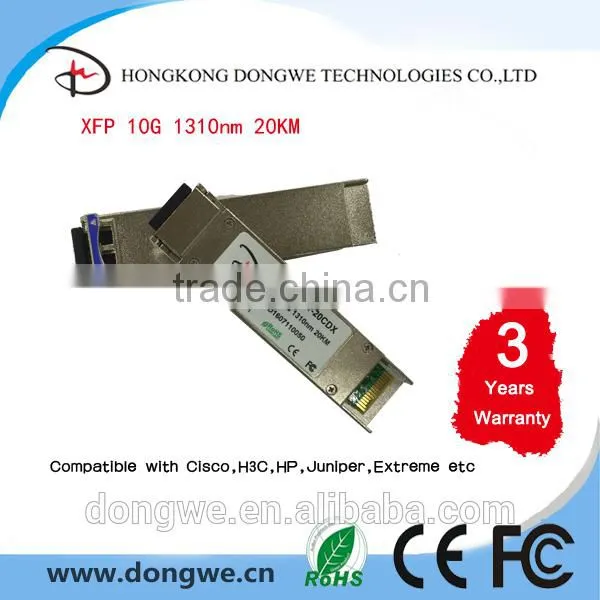

Optic Module Transceiver 10GBase 1310nm XFP-LR for H3C JD108B
Features of XFP-LR
¨ Supports 9.95Gb/s to 11.1Gb/s bit rates
¨ Hot-pluggable XFP footprint
¨ Maximum link length of 20km with SMF
¨ 1310nm Uncooled DFB laser
¨ XFP MSA package with duplex LC connector
¨ No reference clock required
¨ +1.8V,+3.3V Supply Voltage
¨ XFI and lineside loopback Mode Supported
¨ -5ºC to 70ºC Operating Case Temperature
¨ Diagnostic Performance Monitoring of module temperature,
Supply Voltages, laser bias current, transmit optical power, and receive optical power
¨ RoHS6 compliant (lead free)
Applications of XFP-LR
¨ 10GBASE-LR at 10.3125Gbps
¨ Other optical links,up to 11.1Gbps
¨ 10GBASE-LR Ethernet with FEC
Detail Description of XFP-LR
DONGWE DW-D9631-20CX is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 10.3125Gbps(10GBASE-LR) or 9.953Gbps 10GBASE-LW), and transmission distance up to 20km on SMF.
The transceiver module comprises a transmitter with 1310nm Uncooled DFB laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.
Ordering Information of XFP-LR
| Part Number | Product Description |

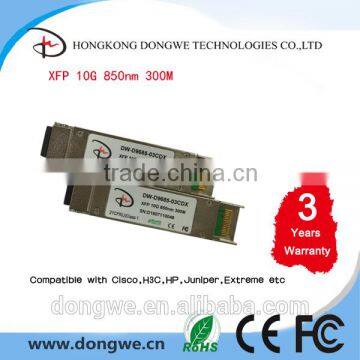

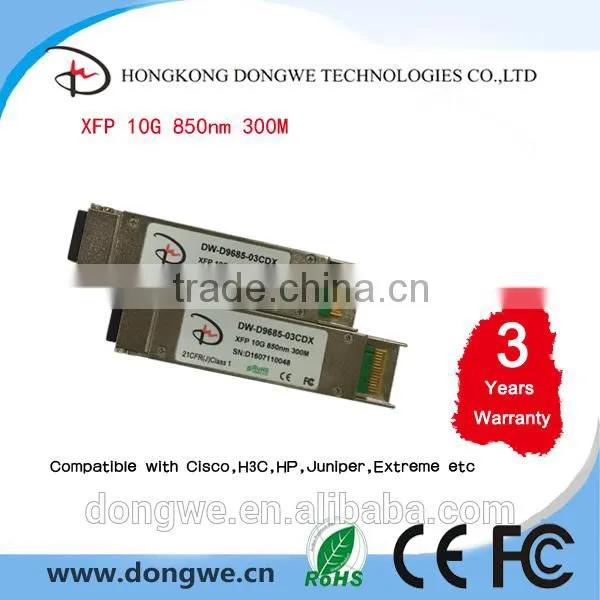

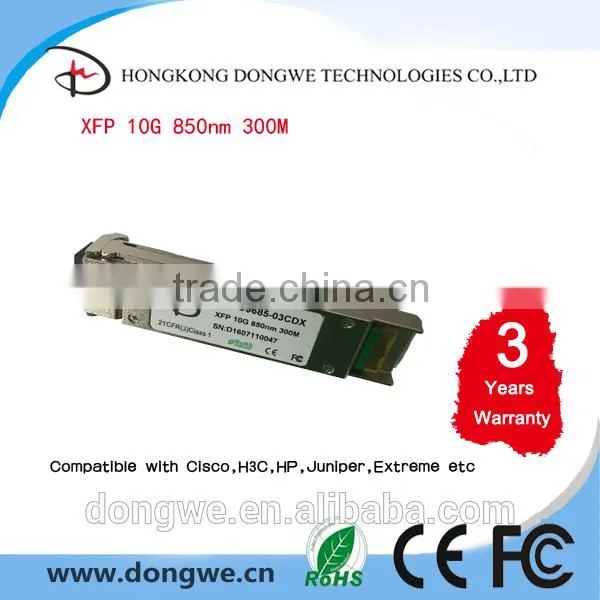

| DW-D9685-03CX | XFP, 10G, 850nm, 300m, 0ºC ~ +70ºC, with DDM/DOM |
| DW-D9631-02CX | XFP, 10G, 1310nm, 2km, 0ºC ~ +70ºC, with DDM/DOM |
| DW-D9631-10CX | XFP, 10G, 1310nm, 10km, 0ºC ~ +70ºC, with DDM/DOM |
| DW-D9655-40CX | XFP, 10G, 1550nm, 40km, 0ºC ~ +70ºC, with DDM/DOM |

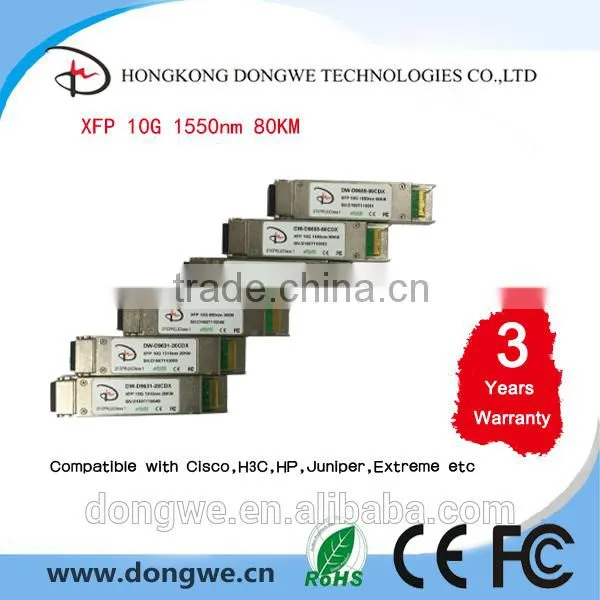

| DW-D9655-80CX | XFP, 10G, 1550nm, 80km, 0ºC ~ +70ºC, with DDM/DOM |
| DW-D9655-12CX | XFP, 10G, 1550nm, 120km, 0ºC ~ +70ºC, with DDM/DOM |
| BIDI XFP | |
| DW-S9623-10CX | BIDI XFP, 10G, 1270TX/1330RX, 10km, 0ºC ~ +70ºC, with DDM/DOM |
| DW-S9632-10CX | BIDI XFP, 10G, 1330TX/1270RX, 10km, 0ºC ~ +70ºC, with DDM/DOM |
| DW-S9623-20CX | BIDI XFP, 10G, 1270TX/1330RX, 20km, 0ºC ~ +70ºC, with DDM/DOM |
| DW-S9632-20CX | BIDI XFP, 10G, 1330TX/1270RX, 20km, 0ºC ~ +70ºC, with DDM/DOM |
| DW-S9623-40CX | BIDI XFP, 10G, 1270TX/1330RX, 40km, 0ºC ~ +70ºC, with DDM/DOM |
| DW-S9632-40CX | BIDI XFP, 10G, 1330TX/1270RX, 40km, 0ºC ~ +70ºC, with DDM/DOM |
| DW-S9623-60CX | BIDI XFP, 10G, 1270TX/1330RX, 60km, 0ºC ~ +70ºC, with DDM/DOM |
| DW-S9632-60CX | BIDI XFP, 10G, 1330TX/1270RX, 60km, 0ºC ~ +70ºC, with DDM/DOM |
| CWDM XFP | |
|
DW-D96CXX-10CX (XX=27/29/31/33) |
CWDM XFP, 10G, 1270~1330nm, 10km, 0ºC ~ +70ºC, with DDM/DOM |
|
DW-D96CXX-40CX (XX=47~61) |
CWDM XFP, 10G, 1470~1610nm, 40km, 0ºC ~ +70ºC, with DDM/DOM |
|
DW-D96CXX-80CX (XX=47~61) |
CWDM XFP, 10G, 1470~1610nm, 80km, -5ºC ~ +70ºC, with DDM/DOM |
| DWDM XFP | |
|
DW-D96DXX-40CX (XX=17~61) |
DWDM XFP, 10G, 1528.77~1563.86nm, 40km, -5ºC ~ +70ºC, with DDM/DOM |
|
|
|
DW-D96DXX-80CX (XX=17~61) |
DWDM XFP, 10G, 1528.77~1563.86nm, 80km, -5ºC ~ +70ºC, with DDM/DOM |
|
DW-D96DXX-12CX (XX=17~61) |
DWDM XFP, 10G, 1528.77~1563.86nm, 120km, -5ºC ~ +70ºC, with DDM/DOM |
|
|
|
|
|---|---|---|---|
|
|
|
|
|
|
|
|
Shipment of Cisco XFP Module :
International Express: DHL, FedEx, UPS, TNT and EMS optional
1. Competitive price
