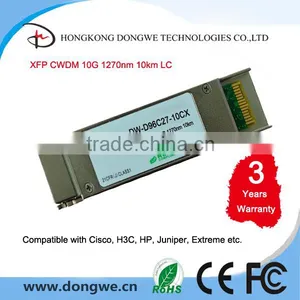

CWDM XFP 10km Fiber Optic Module Transceiver for 10G 10km 1270~1330nm
Features
¨ 4-Wavelengths Uncooled CWDM DFB laser from1270nm to 1330nm, with Step 20nm
¨ Supports 9.95Gbps to 11.3Gbps bit rates
¨ XFP MSA Rev 4.5 Compliant
¨ Maximum link length of 10km with SMF
¨ No reference clock required
¨ +1.8V,+3.3V Supply Voltage
¨ Low Power Dissipation 2W Maximum
¨ XFI and lineside loopback Mode Supported
¨ 0ºC to 70ºC Operating Case Temperature
¨ Diagnostic Performance Monitoring of module temperature,
Supply Voltages, laser bias current, transmit optical power, and receive optical power
¨ RoHS6 compliant (lead free)
Applications
¨ SDH STM I-64.1 at 9.953Gbps
¨ 10GBASE-LR/LW 10G Ethernet
¨ 10G Fiber Channel
¨ 10GBASE-LR/LW 10G Ethernet with FEC
Detail Description
DONGWE DW-D96C27-10CX is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 10.3125Gbps(10GBASE-LR) or 9.953Gbps 10GBASE-LW), and transmission distance up to 10km on SMF.
The transceiver module comprises a transmitter with uncooled CWDM DFB laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.
Ordering Information
| Part Number | Product Description |
| DW-D9685-03CX | XFP, 10G, 850nm, 300m, 0ºC ~ +70ºC, with DDM/DOM |
| DW-D9631-02CX | XFP, 10G, 1310nm, 2km, 0ºC ~ +70ºC, with DDM/DOM |
| DW-D9631-10CX | XFP, 10G, 1310nm, 10km, 0ºC ~ +70ºC, with DDM/DOM |
| DW-D9655-40CX | XFP, 10G, 1550nm, 40km, 0ºC ~ +70ºC, with DDM/DOM |
| DW-D9655-80CX | XFP, 10G, 1550nm, 80km, 0ºC ~ +70ºC, with DDM/DOM |
| DW-D9655-12CX | XFP, 10G, 1550nm, 120km, 0ºC ~ +70ºC, with DDM/DOM |
| BIDI XFP | |
| DW-S9623-10CX | BIDI XFP, 10G, 1270TX/1330RX, 10km, 0ºC ~ +70ºC, with DDM/DOM |
| DW-S9632-10CX | BIDI XFP, 10G, 1330TX/1270RX, 10km, 0ºC ~ +70ºC, with DDM/DOM |
| DW-S9623-20CX | BIDI XFP, 10G, 1270TX/1330RX, 20km, 0ºC ~ +70ºC, with DDM/DOM |
| DW-S9632-20CX | BIDI XFP, 10G, 1330TX/1270RX, 20km, 0ºC ~ +70ºC, with DDM/DOM |
| DW-S9623-40CX | BIDI XFP, 10G, 1270TX/1330RX, 40km, 0ºC ~ +70ºC, with DDM/DOM |
| DW-S9632-40CX | BIDI XFP, 10G, 1330TX/1270RX, 40km, 0ºC ~ +70ºC, with DDM/DOM |
| DW-S9623-60CX | BIDI XFP, 10G, 1270TX/1330RX, 60km, 0ºC ~ +70ºC, with DDM/DOM |
| DW-S9632-60CX | BIDI XFP, 10G, 1330TX/1270RX, 60km, 0ºC ~ +70ºC, with DDM/DOM |
| CWDM XFP | |
|
DW-D96CXX-10CX (XX=27/29/31/33) |
CWDM XFP, 10G, 1270~1330nm, 10km, 0ºC ~ +70ºC, with DDM/DOM |
|
DW-D96CXX-40CX (XX=47~61) |
CWDM XFP, 10G, 1470~1610nm, 40km, 0ºC ~ +70ºC, with DDM/DOM |
|
DW-D96CXX-80CX (XX=47~61) |
CWDM XFP, 10G, 1470~1610nm, 80km, -5ºC ~ +70ºC, with DDM/DOM |
| DWDM XFP | |
|
DW-D96DXX-40CX (XX=17~61) |
DWDM XFP, 10G, 1528.77~1563.86nm, 40km, -5ºC ~ +70ºC |
|
|
|
DW-D96DXX-80CX (XX=17~61) |
DWDM XFP, 10G, 1528.77~1563.86nm, 80km, -5ºC ~ +70ºC |
|
DW-D96DXX-12CX (XX=17~61) |
DWDM XFP, 10G, 1528.77~1563.86nm, 120km, -5ºC ~ +70ºC |
|
|
|
|
|---|---|---|---|
|
|
|
|
|
|
|
|
Shipment:
International Express: DHL, FedEx, UPS, TNT and EMS optional
