F Male to F Female Right Angle Coaxial Connector
US$ 0.01 - 0.2
MOQ: 2000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
xuntong
Model Number:
F073
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai . ningbo . shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Gold Plated RCA Female To RCA Female Connector With NutsUS$ 0.1 - 2MOQ: 2000 Pieces -
Factory Price Male or Female Microphone Jack to Rca PlugUS$ 0.1 - 2MOQ: 2000 Pieces
-
3.5mm Plug to 2 RCA Connectors Y Splitter Female Audio AdapterUS$ 0.1 - 2MOQ: 2000 Pieces
-
Gold Plated Top Quality 3.5mm Jack to 2 RCA AdaptorUS$ 0.1 - 2MOQ: 2000 Pieces
-
BNC Female to Female Connector Jack to Jack BulkheadUS$ 0.1 - 2MOQ: 2000 Pieces
Place of Origin
Jiangsu, China
Brand Name
xuntong
Model Number
F073
Type
F
Application
RF
Gender
Female

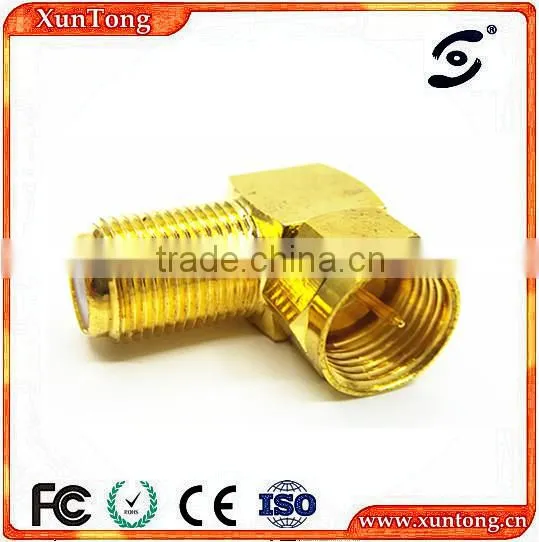

F male to F female right angle coaxial connector
Product Description
Product Spec
| Characteristic impedance | 75Ω | Temperature range | -65~+165°C | ||
| Frequency range | DC~1GHz | Working Voltage | ≤170V | ||
| Center conductor retention force | ≥0.2 N | Vibration | 100m/s2 (10~500Hz) | ||
| Conductor resistance | Center Conductor | ≤ 10 mΩ | |||
| Outer Conductor | ≤ 5 mΩ | ||||
| Durability | Mating cycles | ≥500 | |||
| Withstanding voltage | ≤500V rms | ||||
| Voltage Standing Wave Ratio | Straight | ≤1.20 | |||
| Right angle | ≤1.30 | ||||
| Parts Name | Material | Plating | |||
| Material And Plating | Body | Brass | Nickel plated | ||
| Pin contact | Brass | Gold or silver plated | |||
| Resilient contact | Tin bronze | Gold or silver plated | |||
| Insulators | PTFE | — | |||
| Gaskets | Silicon rubber | — | |||
| Crimp ferrules | Copper alloy | Nickel or gold plated | |||
| Applicable standard | IEC 60169-24 | ||||
Production Process
Show Information

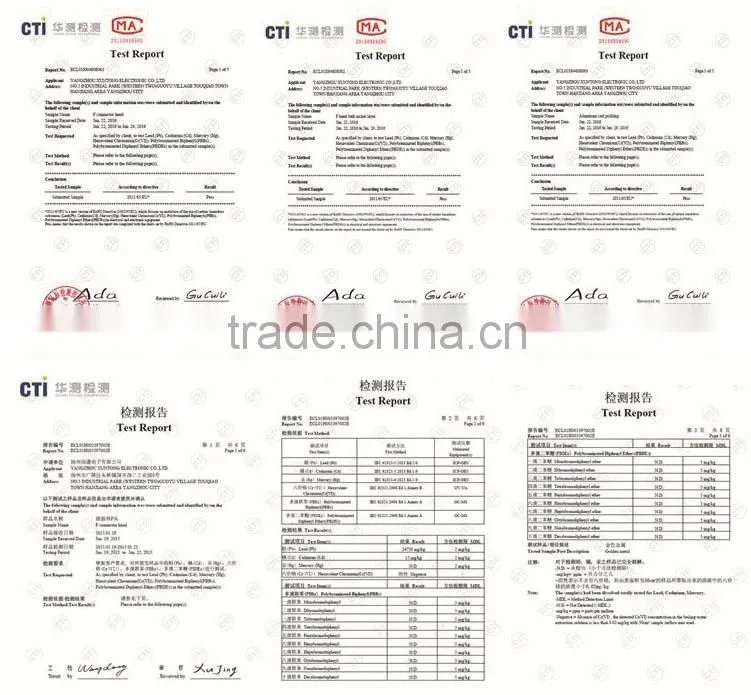

Certifications
Our Service

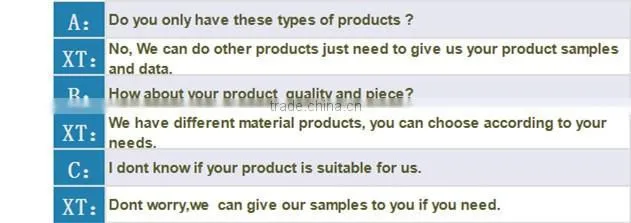

F A Q
