Home > Electrical & Electronics > Telecommunication & Broadcasting > Radio & TV Broadcasting > Single Channel hd mi & av Encoder and H.265 Iptv Streaming Encoder COL7201HA

Single Channel hd mi & av Encoder and H.265 Iptv Streaming Encoder COL7201HA

Single Channel hd mi & av Encoder and H.265 Iptv Streaming Encoder COL7201HA thumbnail-1
Single Channel hd mi & av Encoder and H.265 Iptv Streaming Encoder COL7201HA photo-1
US$ 1 - 300 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
Colable
Model Number:
COL7201HA
Contact Supplier Request Quote Chat Now
Colable Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Chengdu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Sichuan, China
Brand Name Colable
Model Number COL7201HA

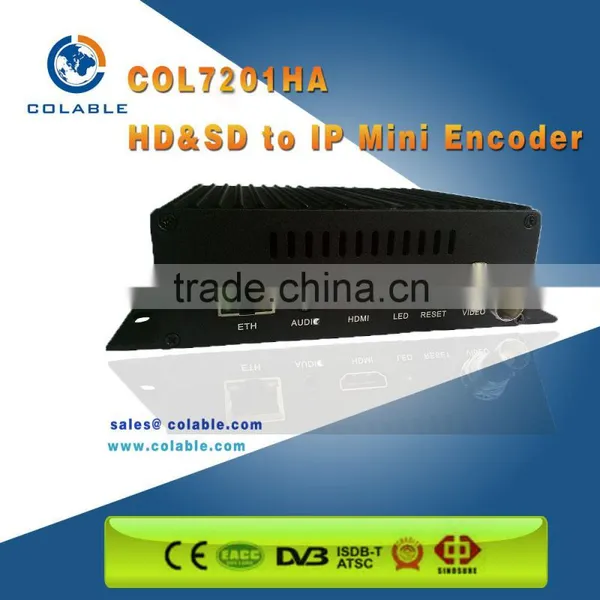

Model: COL7201HA  Single h.265 iptv stream encoder

( integrated h.265 /h.264)







Outline



COL-7201HA Mini H.265/H.264 IPTV encoder is most competitive cost and easy-to-use video streaming appliance designed for professional video producers. The product support 1 channel HDMI & AV generating dual stream of h.264/H.265 encoding output and the AAC,Mp3 audio format. From any HDMI &AV input source such as a camera or switcher or DVD, it generates an H.264/H.265-encoded stream compliant with RTSP, HTTP, UDP and RTMP protocols. The product can be applied to education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries.







Features



  1. 1 channel HDMI &AV input,
  2. Up to 720P, 1080P HD video input
  3. Support non-video encoding
  4. Support OSD rolling and logo inserting
  5. System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN764, LINUX
  6. Support MP3 and AAC audio format selection
  7. Encoding specification: BASELINE PROFILE / MAIN PROFILE/ HIGH PROFILE
  8. Support a click to restore the default configuration
  9. Support STB decoding
  10. Support Main TS stream and the sub TS stream can use different network protocols for transmission (Multi-rate multi-protocol support)
  11. Support multiple devices display at the same time on a computer
  12. Support network directly connected, don’t need match HD collection card.
  13. Providing RTSP/RTP/HTTP/RTMP/UDP protocol
  14. Support H.264 Main Profile/H.264 High Profile and AAC audio.
  15. Web control interface
  16. Comply with CBR/VBR 16KBIT/S~12MBIT/S standard
  17. Power less than 24W, low power watts designing.
  18. Support Network interface full-duplex mode 1000M







Technical Specification











Video

Input

1 channel HDMI & AV input, supports HDCP

Resolution

1920x1080/1280x720/1280x1024/1280x960/704x576

Encoding

H.264/H.265 AVC High Profile Level 4.0(HMDI)

Video Bitrate

0.8Mbps~12Mbps

Bitrate mode

CBR/VBR

GOP type

Adjustable

Video

preprocessing

De-interlacing, noise reduction, sharpening



Audio



Encoding

AAC,MP3

Resample Rate

Adaptive output sample rate (option)

32K, 44.1K, 48K, 64K, 96K, 128K, 160K, 192K

Sampling

24 bit

Bitrate

64Kb/s~384Kb/s



System

RJ45

1000M Ethernet port

Protocol

HTTP,UDP,RTSP,RTMP,ONVIF

Configuration

interface

WEB interface

Upgrade

Software upgrades can be carried out through a network





Environment

Dimensions

(W×D×H): 146mm x 100mm x 45mm

Net Weight

0.5KG

Temperature

0~45℃(work), -20~80℃(Storage)

Power

Requirements

12V / DC

Power

consumption

5W


Application:





  • IPTV digital headend
  • Point to Point system
  • Internet conferencing system video capture
  • Hospital, Bank, transport agency system





Asking for more information? please feel free to directly chat with Kitty.Lee:

Skype: colable.sales008;      Whatsapp:+8615928631862;  Or easily click upon your right side to contact us online!







We Colable Electronics co.,ltd

specialize in Digital TV broadcasting equipment for more than 10 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!



  • Our experience: Continuous experienced and reliable Team ,  Standing in DVB Head-end system solution more than 10 years.

  • Our product: FTA satellite receiver/decoder, Satellite descrambler (CI slot), Encoder, Multiplexer,Scrambler,  Modulator, Transmitter,Antenna,Set top box.

  • Our service: Life-long Technical support.

  • Warranty: 1 years.

  • Lead time: 2-5 working days
