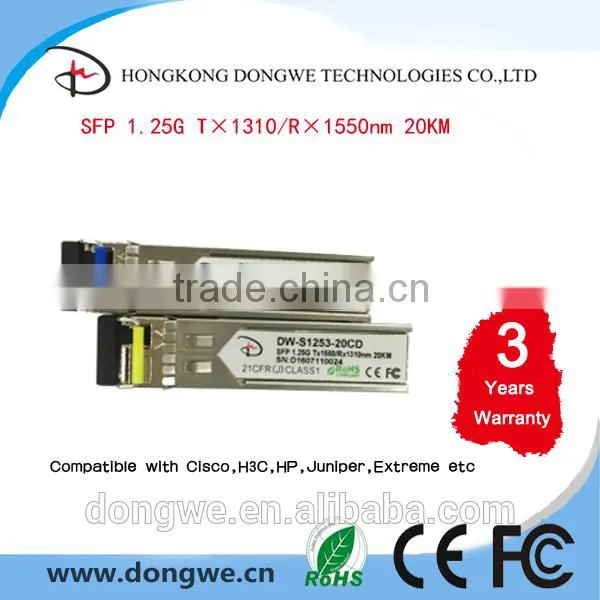

Cisco Compatible BIDI SFP Module GLC-BX-U 1.25G 1310/1550nm 20km Reach

Name: Cisco Compatible BIDI SFP Module GLC-BX-U 1.25G 1310/1550nm 20km Reach
Brand: DONGWE
Availability: InStock

FOB Price

US$ 7 - 15 / Piece

1 Piece(Min. Order)

Port Shenzhen Shanghai Ningbo
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

DONGWE

Model Number

DW-S1235-20C

Product Description

Cisco Compatible BIDI SFP Module GLC-BX-U 1.25G 1310/1550nm 20km Reach

Product Description

Features of SFP Module price

¨ Dual data-rate of 1.25Gbps/1.063Gbps operation

¨ 1550nm DFB laser and PIN photodetector for 20km transmission

¨ Compliant with SFP MSA and SFF-8472 with simplex LC or SC receptacle

¨ Digital Diagnostic Monitoring: Internal Calibrationor External Calibration

¨ Compatible with SONET OC-24-LR-1

¨ Compatible with RoHS

¨ +3.3V single power supply

¨ Operating case temperature range of 0°C to +70°C (Commercial) or -40°C to +85°C (Industrial)

Applications of SFP Module price

¨ Gigabit Ethernet

¨ Fiber Channel

¨ Switch to Switch interface

¨ Switched backplane applications

¨ Router/Server interface

¨ Other optical transmission systems

Description of SFP Module price

The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further

information, please refer to SFP MSA.

Ordering Information

Part Number	Product Description
Copper SFP
DW-T1110	Copper SFP, 10/100/1000M, RJ45, 0°C to +70°C
DW-T1000	Copper SFP, 1000M, RJ45, 0°C to +70°C
155M SFP
DW-D0385-02C	SFP, 155M, 850nm, 2km, 0°C to +70°C
DW-D0331-10C	SFP, 155M, 1310nm, 10km, 0°C to +70°C
DW-D0331-20C	SFP, 155M, 1310nm, 20km, 0°C to +70°C
DW-D0331-40C	SFP, 155M, 1310nm, 40km, 0°C to +70°C
DW-D0355-60C	SFP, 155M, 1550nm, 60km, 0°C to +70°C
DW-D0355-80C	SFP, 155M, 1550nm, 80km, 0°C to +70°C
DW-D0355-12C	SFP, 155M, 1550nm, 120km, 0°C to +70°C
DW-D0355-15C	SFP, 155M, 1550nm, 150km, 0°C to +70°C
1.25G SFP
DW-D1285-05C	SFP, 1.25G, 850nm, 550m, 0°C to +70°C
DW-D1231-10C	SFP, 1.25G, 1310nm, 10km, 0°C to +70°C
DW-D1231-20C	SFP, 1.25G, 1310nm, 20km, 0°C to +70°C
DW-D1231-40C	SFP, 1.25G, 1310nm, 40km, 0°C to +70°C
DW-D1255-40C	SFP, 1.25G, 1550nm, 40km, 0°C to +70°C
DW-D1255-60C	SFP, 1.25G, 1550nm, 60km, 0°C to +70°C
DW-D1255-80C	SFP, 1.25G, 1550nm, 80km, 0°C to +70°C
DW-D1255-12C	SFP, 1.25G, 1550nm, 120km, 0°C to +70°C
2.125G/2.5G SFP
DW-D2485-03C	SFP, 2.125G/2.5G, 850nm, 300m, 0°C to +70°C
DW-D2431-10C	SFP, 2.125G/2.5G, 1310nm, 10km, 0°C to +70°C
DW-D2431-20C	SFP, 2.125G/2.5G, 1310nm, 20km, 0°C to +70°C
DW-D2431-40C	SFP, 2.125G/2.5G, 1310nm, 40km, 0°C to +70°C
DW-D2455-40C	SFP, 2.125G/2.5G, 1550nm, 40km, 0°C to +70°C
DW-D2455-60C	SFP, 2.125G/2.5G, 1550nm, 60km, 0°C to +70°C
DW-D2455-80C	SFP, 2.125G/2.5G, 1550nm, 80km, 0°C to +70°C
4.25G
DW-D4885-03C	SFP, 4.25G, 850nm, 300m, 0°C to +70°C
DW-D4831-20C	SFP, 4.25G, 1310nm, 20km, 0°C to +70°C
BIDI SFP
155M
DW-S0335-10C DW-S0353-10C	BIDI SFP, 155M, 1310/1550, 1550/1310, 10km, 0°C to +70°C

DW-S0335-20C DW-S0353-20C	BIDI SFP, 155M, 1310/1550, 1550/1310, 20km, 0°C to +70°C

DW-S0334-20C DW-S0343-20C	BIDI SFP, 155M, 1310/1490, 1490/1310, 20km, 0°C to +70°C

DW-S0335-40C DW-S0353-40C	BIDI SFP, 155M, 1310/1550, 1550/1310, 40km, 0°C to +70°C

DW-S0334-40C DW-S0343-40C	BIDI SFP, 155M, 1310/1490, 1490/1310, 40km, 0°C to +70°C

DW-S0335-60C DW-S0353-60C	BIDI SFP, 155M, 1310/1550, 1550/1310, 60km, 0°C to +70°C

DW-S0334-60C DW-S0343-60C	BIDI SFP, 155M, 1310/1490, 1490/1310, 60km, 0°C to +70°C

DW-S0345-80C DW-S0354-80C	BIDI SFP, 155M, 1490/1550, 1550/1490, 80km, 0°C to +70°C

DW-S0345-12C DW-S0354-12C	BIDI SFP, 155M, 1490/1550, 1550/1490, 120km, 0°C to +70°C
1.25G
DW-S1235-03C DW-S1253-03C	BIDI SFP, 1.25G, 1310/1550, 1550/1310, 3km, 0°C to +70°C

DW-S1235-10C DW-S1253-10C	BIDI SFP, 1.25G, 1310/1550, 1550/1310, 10km, 0°C to +70°C

DW-S1235-20C DW-S1253-20C	BIDI SFP, 1.25G, 1310/1550, 1550/1310, 20km, 0°C to +70°C

DW-S1234-20C DW-S1243-20C	BIDI SFP, 1.25G, 1310/1490, 1490/1310, 20km, 0°C to +70°C

DW-S1235-40C DW-S1253-40C	BIDI SFP, 1.25G, 1310/1550, 1550/1310, 40km, 0°C to +70°C

DW-S1234-40C DW-S1243-40C	BIDI SFP, 1.25G, 1310/1490, 1490/1310, 40km, 0°C to +70°C

DW-S1235-80C DW-S1253-80C	BIDI SFP, 1.25G, 1310/1550, 1550/1310, 80km, 0°C to +70°C

DW-S1245-80C DW-S1254-80C	BIDI SFP, 1.25G, 1490/1550, 1550/1490, 80km, 0°C to +70°C

Compatible Brands

Product Serial

Package and Shipment

Shipment of SFP Module price

International Express: DHL, FedEx, UPS, TNT and EMS optional

Factory Show

Our Service

1. Competitive price

2. 3 years warranty

3. Reply your inquiry within 2 hours

4. Have large quantity modules in stock, delivery fast

5. Label can be customized, also ODM and OEM service offered

6. 100% new material and good quality

7. Can be compatible with a lot of brands like Cisco, HP, H3C, Extreme, Juniper etc.

8. Capacity: 10,000pcs/day

9. Certificates below:
