1ch H-d-m-i/av/sdi/vga to ip Stream Encoder Udp/rtmp/http Protocol COL7101

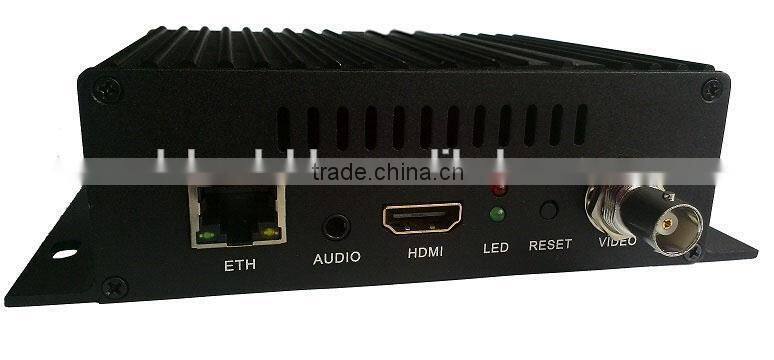

1ch H-d-m-i/av/sdi/vga to ip Stream Encoder Udp/rtmp/http Protocol COL7101 photo-1
US$ 1 - 1,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
Colable
Model Number:
COL7101
Payment & Shipping
Payment Methods:
Port of Shipment:
Chengdu
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Sichuan, China
Brand Name Colable
Model Number COL7101

1ch h-d-m-i/av/sdi/vga to ip stream encoder udp/rtmp/http protocol COL7101 series





1ch h-d-m-i/av/sdi/vga to ip stream encoder udp/rtmp/http protocol COL7101





1ch mini hdmi series encoder input option:

-HDMI input

-HDMI +AV input

-HDMI +VGA input

-HDMI+WIFI

-SDI input

 IP protocol output: HTTP,UDP,RTSP,RTMP,ONVIF




 Outline

COL-7101HA single channel HD &SD IPTV encoder is most competitive cost and easy-to use video streaming



appliance designed for professional video producers. The product support 1 channel HDMI & AV video capture



generating dual stream of h.264 encoding output and the AAC audio format. From any HDMI &AV input source



such as a camera or switcher or DVD, it generates an H.264-encoded stream compliant with RTSP, HTTP,



UDP and RTMP protocols. The product can be applied to education, health care, IPTV, conference, remote



education, news interview, banking, transportation and other industries.







Features

  • 1 channel HDMI &AV input,
  • Up to 720P, 1080P HD video input
  • System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN764, LINUX
  • Supports MP3 and AAC audio format selection
  • Encoding specification: BASELINE PROFILE / MAIN PROFILE/ HIGH PROFILE
  • Support a click to restore the default configuration
  • Support STB decoding
  • Support Main TS stream and the sub TS stream can use different network protocols for transmission (Multi-rate multi-protocol support)
  • Support multiple devices display at the same time on a computer
  • Support network directly connected, don’t need match HD collection card.
  • Providing RTSP/RTP/HTTP/RTMP/UDP protocol
  • Support H.264 Main Profile/H.264 High Profile and AAC audio.
  • Web control interface
  • Comply with CBR/VBR 16KBIT/S~12MBIT/S standard
  • Power less than 24W, low power watts designing.
  • Support Network interface full-duplex mode 1000M





Application



  • IPTV digital headend
  • Accessed NVR for DVR
  • Internet conferencing system video capture
  • remote education video system
  • Hotel TV System
  • Hospital, Bank, transport agency system







Specifications





    Video

Input

1 channel HDMI & AV input, supports HDCP

Resolution

1920x1080/1280x720/1280x1024/1280x960/704x576

Encoding

H.264/AVC High Profile Level 4.0(HMDI)

Video Bitrate

0.8Mbps~12Mbps

Bitrate mode

CBR/VBR

GOP type

Adjustable

Video

preprocessing

De-interlacing, noise reduction, sharpening



    Audio



Encoding

AAC,MP3

Resample Rate

Adaptive output sample rate (option)

32K, 44.1K, 48K, 64K, 96K, 128K, 160K, 192K

Sampling

24 bit

Bitrate

64Kb/s~384Kb/s



    System

RJ45

1000M Ethernet port

Protocol

HTTP,UDP,RTSP,RTMP,ONVIF

Configuration

interface

WEB interface

Upgrade

Software upgrades can be carried out through a network





Environment

Dimensions

(W×D×H): 146mm x 100mm x 45mm

Net Weight

0.5KG

Temperature

0~45℃(work), -20~80(Storage)

Power

Requirements

12V / DC

Power

consumption

5W















 Application system:



 -IPTV stream Encoder (LAN and Public internet)



1ch h-d-m-i/av/sdi/vga to ip stream encoder udp/rtmp/http protocol COL7101







Asking for more information? please feel free to directly chat with Betty.Li:



Or move your finger and send an inquiry to Supplier on the right side.










We Colable Electronics co.,ltd



specialize in Digital TV broadcasting equipment for more than 10 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!



  • Our experience: Continuous experienced and reliable Team ,  Standing in DVB Head-end system solution more than 10 years.

  • Our product: FTA satellite receiver/decoder, Satellite descrambler (CI slot), Encoder, Multiplexer,Scrambler,  Modulator, Transmitter,Antenna,Set top box.

  • Our service: Life-long Technical support.

  • Warranty: 1 years.

  • Lead time: 2-5 working days
