HD Live Streaming Vieo Encoder Iptv 4 in 1 COL7104H

Name: HD Live Streaming Vieo Encoder Iptv 4 in 1 COL7104H
Brand: Colable
SKU: 132180901
Availability: InStock

US$ 1 - 980 MOQ: 1 Piece

Key Specifications

Brand Name:

Colable

Model Number:

COL7104H

Place of Origin:

Sichuan, China

Colable Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chengdu

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Colable

Model Number COL7104H

Place of Origin Sichuan, China

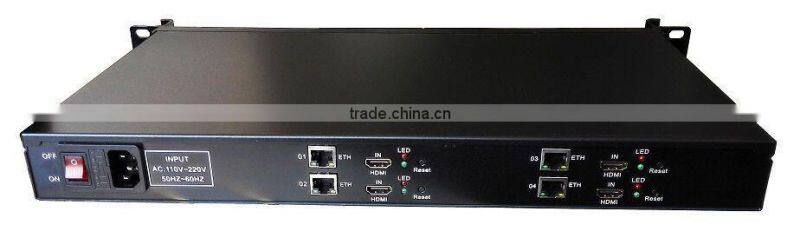

COL7104H 4 Channels HDMI IPTV Encoder

Outline

COL-7104H 4 channel HDMI IPTV encoder is most competitive cost and easy-to-use video streaming

appliance designed for professional video producers . The product support 4 channel HDMI video capture

generating dual stream of h.264 encoding output and the AAC audio format. From any HDMI input source

such as a camera or switcher, it generates an H.264-encoded stream compliant with RTSP, HTTP, UDP

and RTMP protocols. The product can be applied to education, health care, IPTV, conference, remote

education, news interview, banking, transportation and other industries.

Features

4 channel HDMI input,
Up to 720P, 1080P HD video input
System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN764, LINUX
Supports MP3 and AAC audio format selection
Encoding specification: BASELINE PROFILE / MAIN PROFILE/ HIGH PROFILE
Support a click to restore the default configuration
Support STB decoding
Support Main TS stream and the sub TS stream can use different network protocols for transmission (Multi-rate multi-protocol support)
Support multiple equipments display at the same time on a computer
Support network directly connected, don’t need match HD collection card.
Providing RTSP/RTP/HTTP/RTMP/UDP protocol
Support H.264 Main Profile/H.264 High Profile and AAC audio.
Web control interface
Comply with CBR/VBR 16KBIT/S~12MBIT/S standard
Power less than 24W, low power watts designing.
Support Network interface full-duplex mode 1000M

Application

Technical Specification

Video	Input	4 channel HDMI input, supports HDCP
	Resolution	1920x1080/1280x720/1280x1024/1280x960/704x576
	Encoding	H.264/AVC High Profile Level 4.0(HMDI)
	Video Bitrate	0.8Mbps~12Mbps
	Bitrate mode	CBR/VBR
	GOP type	Adjustable
	Video preprocessing	De-interlacing, noise reduction, sharpening
Audio	Encoding	AAC,MP3
	Resample Rate	Adaptive output sample rate (option)
	Sampling	24 bit
	Bitrate	64Kb/s~384Kb/s
System	RJ45	1000M Ethernet port
	Protocol	HTTP,UDP,RTSP,RTMP,ONVIF
	Configuration interface	WEB interface
	Upgrade	Software upgrades can be carried out through a network
Environment	Dimensions	(W×D×H): 425mm x 220mm x 45mm (1U)
	Net Weight	3KG
	Temperature	0~45℃(work), -20~80℃(Storage)
	Power Requirements	12V / DC ; 50/60 HZ
	Power consumption	20W
