Live streaming iptv encoder with hdmi and vga input COL7101HV
Skype ID: colable.sales008
1ch mini hdmi series encoder input option:
-HDMI input
-HDMI +AV input
-HDMI +VGA input
-HDMI+WIFI
-SDI input
IP protocol output: HTTP,UDP,RTSP,RTMP,ONVIF
Outline
COL-7101HV single channel HDMI&VGA IPTV encoder is most competitive cost and easy-to-use video streaming
appliance designed for professional video producer. The product support 1 channel HDMI & VGA video capture
generating dual stream of h.264 encoding output and the AAC audio format. From any HDMI or VGA input
source such as a camera or switcher, it generates an H.264-encoded stream compliant with RTSP, HTTP, UDP
and RTMP protocols. The product can be applied to education, health care, IPTV, conference, remote education,
news interview, banking, transportation and other industries.
Features
- 1 channel HDMI &VGA input,
- Up to 720P, 1080P HD video input
- System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN764, LINUX
- Supports MP3 and AAC audio format selection
- Encoding specification: BASELINE PROFILE / MAIN PROFILE/ HIGH PROFILE
- Support a click to restore the default configuration
- Support STB decoding
- Support Main TS stream and the sub TS stream can use different network protocols for transmission (Multi-rate multi-protocol support)
- Support multiple devices display at the same time on a computer
- Support network directly connected, don’t need match HD collection card.
- Providing RTSP/RTP/HTTP/RTMP/UDP protocol
- Support H.264 Main Profile/H.264 High Profile and AAC audio.
- Web control interface
- Comply with CBR/VBR 16KBIT/S~12MBIT/S standard
- Power less than 24W, low power watts designing.
- Support Network interface full-duplex mode 1000M
Specification
|
Video |
Input |
1 channel HDMI &VGA input, supports HDCP |
Resolution |
1920x1080/1280x720/1280x1024/1280x960/704x576 |
|
Encoding |
H.264/AVC High Profile Level 4.0(HMDI) |
|
Video Bitrate |
0.8Mbps~12Mbps |
|
Bitrate mode |
CBR/VBR |
|
GOP type |
Adjustable |
|
|
Video preprocessing |
De-interlacing, noise reduction, sharpening |
|
|
Audio
|
Encoding |
AAC,MP3 |
Resample Rate |
Adaptive output sample rate (option) 32K, 44.1K, 48K, 64K, 96K, 128K, 160K, 192K |
|
Sampling |
24 bit |
|
Bitrate |
64Kb/s~384Kb/s |
|
|
System |
RJ45 |
1000M Ethernet port |
Protocol |
HTTP,UDP,RTSP,RTMP,ONVIF |
|
|
Configuration interface |
WEB interface |
|
Upgrade |
Software upgrades can be carried out through a network |
|
|
Environment |
Dimensions |
(W×D×H): 146mm x 100mm x 45mm |
Net Weight |
0.5KG |
|
Temperature |
0~45℃(work), -20~80℃(Storage) |
|
|
Power Requirements |
12V / DC |
|
|
Power consumption |
5W |
Application
- IPTV digital headend
- Accessed NVR for DVR
- Internet conferencing system video capture
- remote education video system
- Hotel TV System
- Hospital, Bank, transport agency system

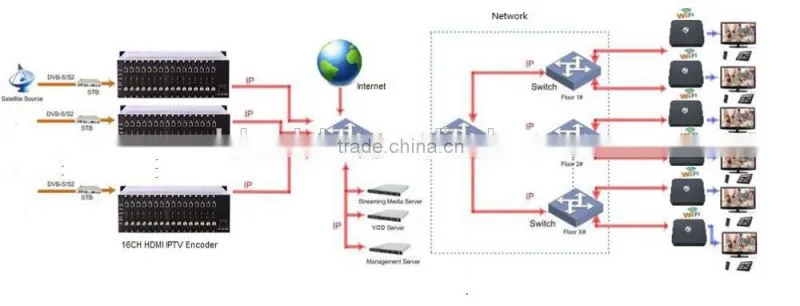

Application system:
Asking for more information? please feel free to directly chat with Betty.Li:
Or move your finger and send an inquiry to Supplier on the right side.
We Colable Electronics co.,ltd
specialize in Digital TV broadcasting equipment for more than 10 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!
Our experience: Continuous experienced and reliable Team , Standing in DVB Head-end system solution more than 10 years.
Our product: FTA satellite receiver/decoder, Satellite descrambler (CI slot), Encoder, Multiplexer,Scrambler, Modulator, Transmitter,Antenna,Set top box.
Our service: Life-long Technical support.
Warranty: 1 years.
Lead time: 2-5 working days
