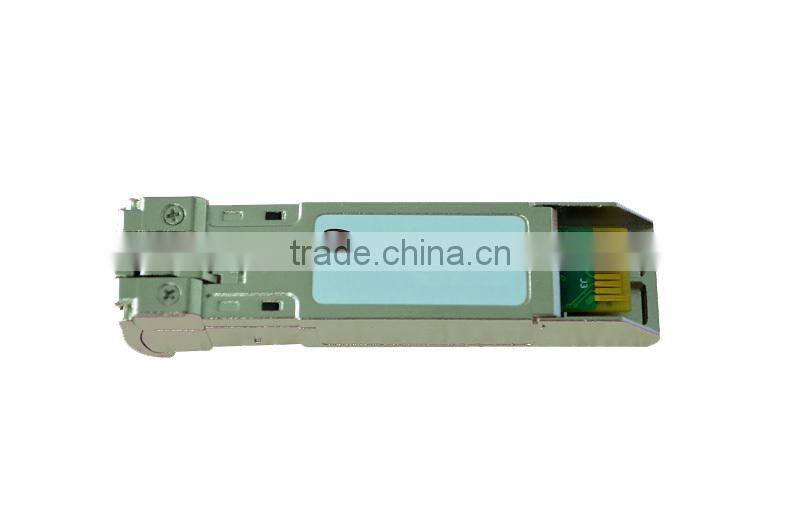

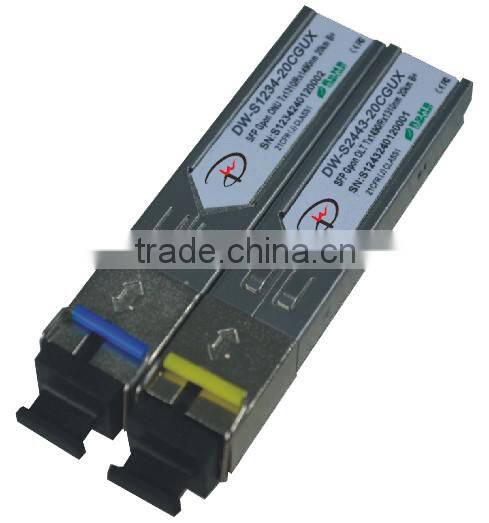

GLC-FE-100BX-D, 100Base-BX10-D BIDI SFP 1490TX/1310RX--20km, Fiber Optic Transceiver
Features
¨ Up to 155Mbps data-rate
¨ 1490nm FP laser and PIN photodetector for 20km transmission
¨ Compliant with SFP MSA and SFF-8472 with simplex LC or SC receptable
¨ Digital Diagnostic Monitoring: Internal Calibrationor External Calibration
¨ Compatible with RoHS
¨ +3.3V single power supply
¨ Operating case temperature range of 0°C to +70°C (Commercial) or -40°C to +85°C (Industrial)
Applications
¨ SDH STM-1, S-1.1,L-1.1, L-1.2
¨ SONET OC-3 IR1,LR1,LR2
¨ Other optical links
Detail Description
The SFP-BIDI transceivers are high performance, cost effective modules supporting data-rate of 155Mbps and 20km transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
| Part Number | Product Description |
| Copper SFP | |
| DW-T1110 | Copper SFP, 10/100/1000M, RJ45, 0°C to +70°C |
| DW-T1000 | Copper SFP, 1000M, RJ45, 0°C to +70°C |
| 155M SFP | |
| DW-D0385-02C | SFP, 155M, 850nm, 2km, 0°C to +70°C |
| DW-D0331-10C | SFP, 155M, 1310nm, 10km, 0°C to +70°C |
| DW-D0331-20C | SFP, 155M, 1310nm, 20km, 0°C to +70°C |
| DW-D0331-40C | SFP, 155M, 1310nm, 40km, 0°C to +70°C |
| DW-D0355-60C | SFP, 155M, 1550nm, 60km, 0°C to +70°C |
| DW-D0355-80C | SFP, 155M, 1550nm, 80km, 0°C to +70°C |
| DW-D0355-12C | SFP, 155M, 1550nm, 120km, 0°C to +70°C |
| DW-D0355-15C | SFP, 155M, 1550nm, 150km, 0°C to +70°C |
| 1.25G SFP | |
| DW-D1285-05C | SFP, 1.25G, 850nm, 550m, 0°C to +70°C |

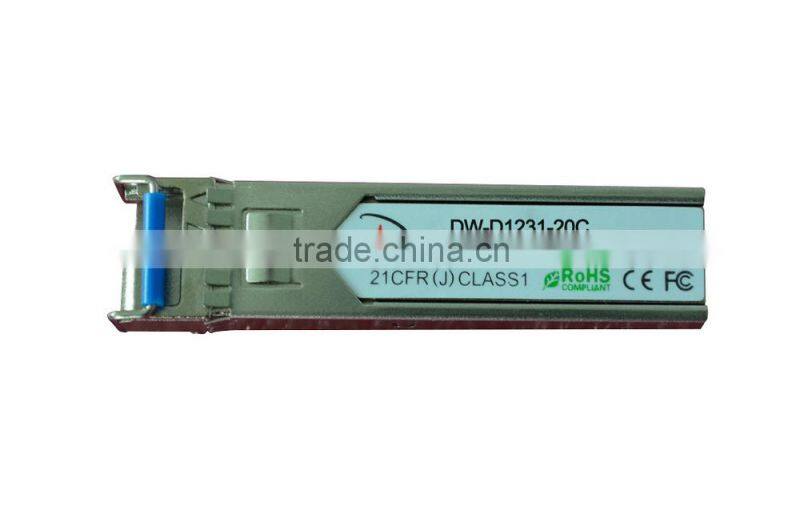

| DW-D1231-10C | SFP, 1.25G, 1310nm, 10km, 0°C to +70°C |
| DW-D1231-20C | SFP, 1.25G, 1310nm, 20km, 0°C to +70°C |
| DW-D1231-40C | SFP, 1.25G, 1310nm, 40km, 0°C to +70°C |
| DW-D1255-40C | SFP, 1.25G, 1550nm, 40km, 0°C to +70°C |
| DW-D1255-60C | SFP, 1.25G, 1550nm, 60km, 0°C to +70°C |
| DW-D1255-80C | SFP, 1.25G, 1550nm, 80km, 0°C to +70°C |
| DW-D1255-12C | SFP, 1.25G, 1550nm, 120km, 0°C to +70°C |
| 2.125G/2.5G SFP | |
| DW-D2485-03C | SFP, 2.125G/2.5G, 850nm, 300m, 0°C to +70°C |
| DW-D2431-10C | SFP, 2.125G/2.5G, 1310nm, 10km, 0°C to +70°C |
| DW-D2431-20C | SFP, 2.125G/2.5G, 1310nm, 20km, 0°C to +70°C |
| DW-D2431-40C | SFP, 2.125G/2.5G, 1310nm, 40km, 0°C to +70°C |
| DW-D2455-40C | SFP, 2.125G/2.5G, 1550nm, 40km, 0°C to +70°C |
| DW-D2455-60C | SFP, 2.125G/2.5G, 1550nm, 60km, 0°C to +70°C |
| DW-D2455-80C | SFP, 2.125G/2.5G, 1550nm, 80km, 0°C to +70°C |
| 4.25G | |
| DW-D4885-03C | SFP, 4.25G, 850nm, 300m, 0°C to +70°C |
| DW-D4831-20C | SFP, 4.25G, 1310nm, 20km, 0°C to +70°C |
| BIDI SFP | |
| 155M | |
|
DW-S0335-10C DW-S0353-10C |
BIDI SFP, 155M, 1310/1550, 1550/1310, 10km, 0°C to +70°C |
|
DW-S0335-20C DW-S0353-20C |
BIDI SFP, 155M, 1310/1550, 1550/1310, 20km, 0°C to +70°C |
|
DW-S0334-20C DW-S0343-20C |

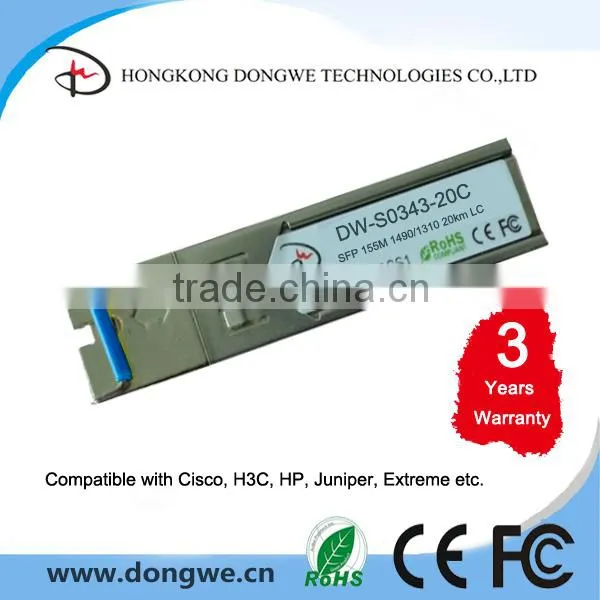

BIDI SFP, 155M, 1310/1490, 1490/1310, 20km, 0°C to +70°C |
|
DW-S0335-40C DW-S0353-40C |
BIDI SFP, 155M, 1310/1550, 1550/1310, 40km, 0°C to +70°C |
|
DW-S0334-40C DW-S0343-40C |
BIDI SFP, 155M, 1310/1490, 1490/1310, 40km, 0°C to +70°C |
|
DW-S0335-60C DW-S0353-60C |
BIDI SFP, 155M, 1310/1550, 1550/1310, 60km, 0°C to +70°C |
|
DW-S0334-60C DW-S0343-60C |
BIDI SFP, 155M, 1310/1490, 1490/1310, 60km, 0°C to +70°C |
|
DW-S0345-80C DW-S0354-80C |
BIDI SFP, 155M, 1490/1550, 1550/1490, 80km, 0°C to +70°C |
|
DW-S0345-12C DW-S0354-12C |
BIDI SFP, 155M, 1490/1550, 1550/1490, 120km, 0°C to +70°C |
| 1.25G | |
|
DW-S1235-03C DW-S1253-03C |
BIDI SFP, 1.25G, 1310/1550, 1550/1310, 3km, 0°C to +70°C |
|
DW-S1235-10C DW-S1253-10C |
BIDI SFP, 1.25G, 1310/1550, 1550/1310, 10km, 0°C to +70°C |
|
DW-S1235-20C DW-S1253-20C |
BIDI SFP, 1.25G, 1310/1550, 1550/1310, 20km, 0°C to +70°C |
|
DW-S1234-20C DW-S1243-20C |
BIDI SFP, 1.25G, 1310/1490, 1490/1310, 20km, 0°C to +70°C |
|
DW-S1235-40C DW-S1253-40C |
BIDI SFP, 1.25G, 1310/1550, 1550/1310, 40km, 0°C to +70°C |
|
DW-S1234-40C DW-S1243-40C |
BIDI SFP, 1.25G, 1310/1490, 1490/1310, 40km, 0°C to +70°C |
|
DW-S1235-80C DW-S1253-80C |
BIDI SFP, 1.25G, 1310/1550, 1550/1310, 80km, 0°C to +70°C |
|
DW-S1245-80C DW-S1254-80C |
BIDI SFP, 1.25G, 1490/1550, 1550/1490, 80km, 0°C to +70°C |
|

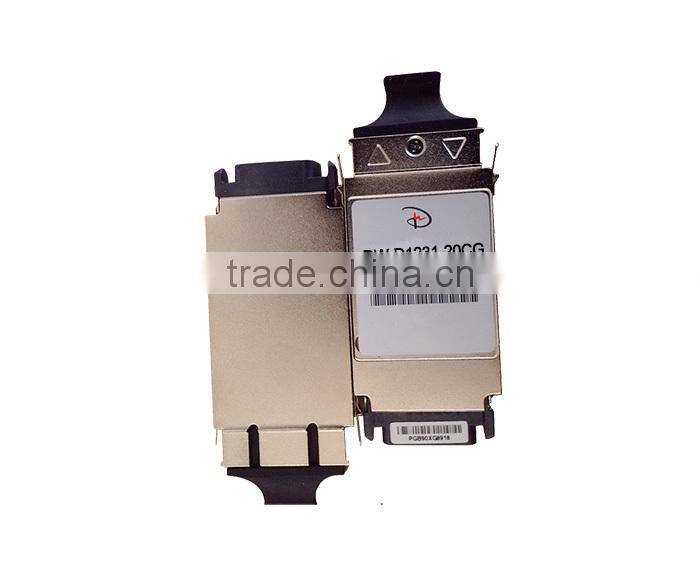

GBIC
|
SFP |
SFP+ |
|

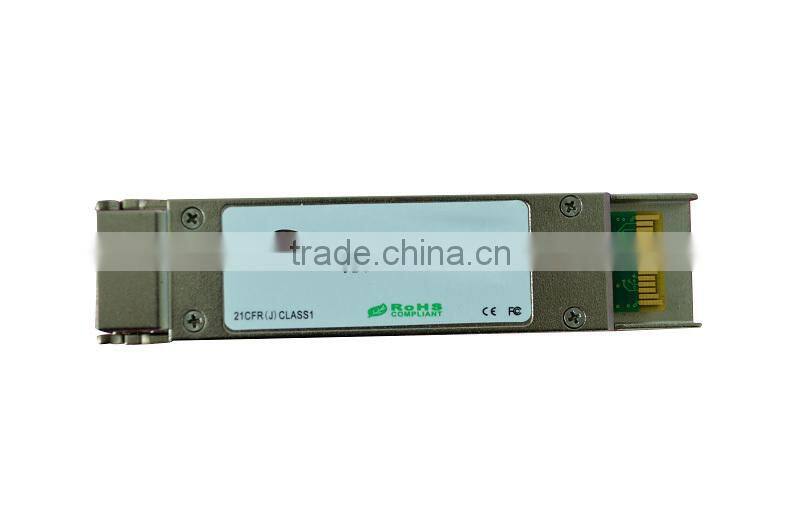

XFP |
X2 |

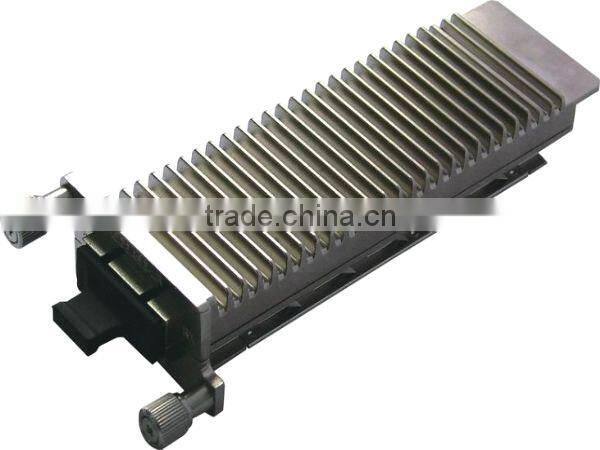

Xenpak |
|

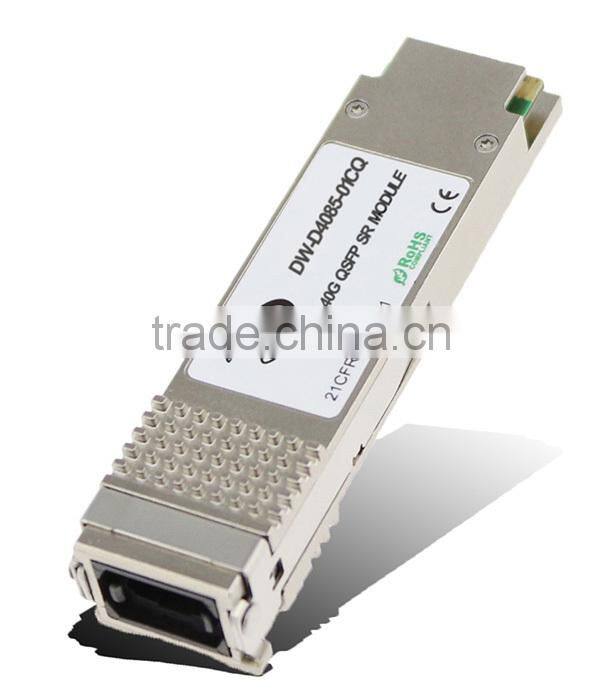

QSFP |
SFP GPON ONU/OLT |

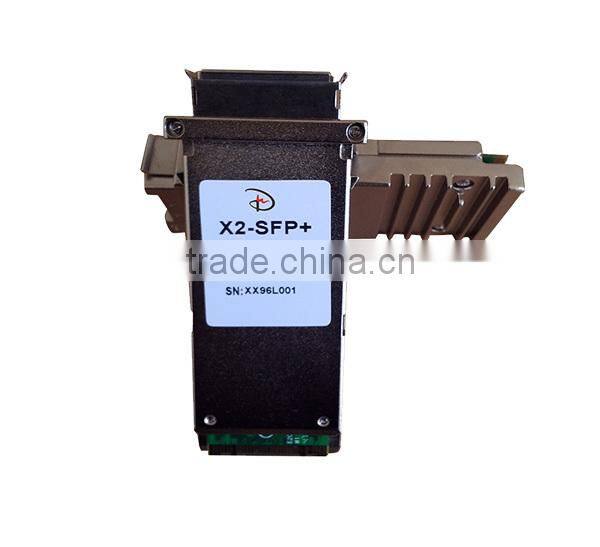

10G Converter
|
|
CSFP |

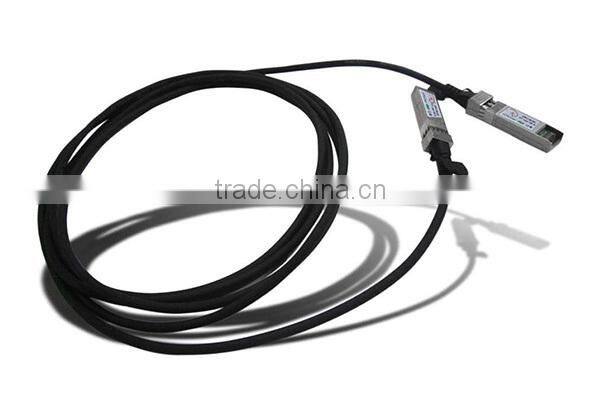

Direct Attach Cable |
Shipment:
International Express: DHL, FedEx, UPS, TNT and EMS optional
1. Competitive price
