DTV Professional IP to HD and SD video Decoder COL5822D
(Skype ID: colable.sales008 Whatsapp: +8615928631862)
Outline

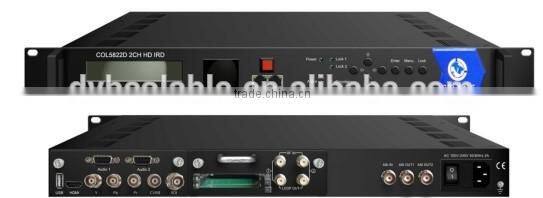

COL5822D 2CH HD IRD is our all-in-one device which integrates demodulation, de-scrambler, re-mux and decoding in one case to convert RF signals into audio/video (CVBS/YPbPr/HDMI/SDI) output.
It is a 1-U case device which supports 2 tuner inputs to receive signal from satellite, cable or terrestrial. The two CAMs/CIs accompanied and BISS modules can descramble the programs input from encrypted RF, ASI and IP.
Its pluggable structure design greatly facilitates the change of modules (demodulator or decoder) as needed.
To meet customers’ various requirements, COL5822D is also equipped with ASI and IP input for re-mux, and output with 2 ASI ports and IP port.
Features
ü Demodulation + descrambler +re-mux+decoder modules in one box
ü 2 DVB-C/T/S/S2/ ATSC Tuner inputs
ü 1 ASI & 1 IP (UDP) input for re-mux
ü One CAM can decrypt multiple programs from Tuners/ASI/IP
ü Support BISS descrambling (Up to 120Mbps)
ü One channel video output with various interface option (MPEG2/H.264)
ü Dual stereo audio output, or one Dolby Digital/Dolby Digital Plus (5.1) channel output
ü Support Dolby Digital/Dolby Digital Plus Decoding and passthrough (for HDMI/SDI out)
ü IP (1 MPTS & 8 SPTS) over UDP and RTP/RTSP output; ASI out
ü Support CC, Subtitle and Teletext
ü Support maximum 128 PID mapping per input
ü Pluggable and changeable demodulator and decoder modules
ü LCD display, Remote control and Firmware, web NMS management
ü Update via USB or web

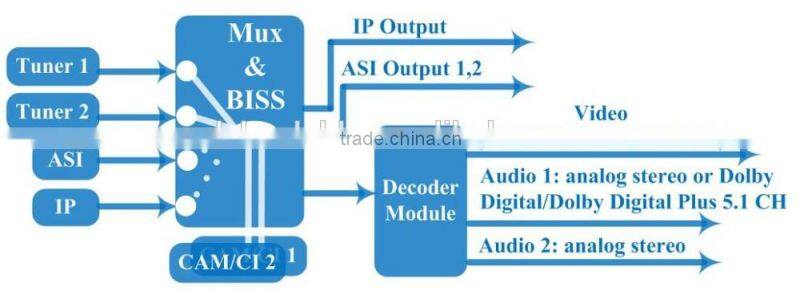

Principle Chart
Specifications
|
Input |
2 x DVB-S/S2RF, F type |
||
1×ASI input for re-mux, BNC interface | |||
1xIP input for re-mux (UDP) | |||
|
Demodulating Section |
DVB-C |
Standard |
J.83A(DVB-C), J.83B, J.83C |
Input Frequency |
30 MHz~1000 MHz |
||
Constellation |
16/32/64/128/256 QAM |
||
|
DVB-T/T2 |
Input Frequency |
30MHz ~999.999 MHz |
|
Bandwidth |
6/7/8 M bandwidth |
||
|
DVB-S |
Input Frequency |
950-2150MHz |
|
Symbol rate |
2-45Msps |
||
Signal Strength |
- 65- -25dBm |
||
Constellation |
1/2, 2/3, 3/4, 5/6, 7/8 QPSK |
||
|
DVB-S2 |
Input Frequency |
950-2150MHz |
|
Symbol rate |
QPSK 1~45Mbauds; 8PSK 2~30Mbauds |
||
Code rate |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
||
Constellation |
QPSK, 8PSK |
||
ATSC-T |
Input Frequency |
54MHz~858MHz |
|
Bandwidth |
6M bandwidth |
||
|
Descrambling |
CAM/CI Quantity |
2 |
|
BISS Mode |
Mode 1, Mode E; up to 120Mbps |
||
|
Output |
IP Output |
1*MPTS & 8*SPTS over UDP, RTP/RTSP. 100Base-T Ethernet interface (unicast / multicast) |
|
2×ASI |
BNC interface, mirrored out |
||
|
Decode Output |
Video Interface: 1xCVBS/YPbPr/HDMI/SDI Resolution: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Video Decode: MPEG-2; H.264 Audio Interface: 2 x Stereo/4xmono, HDMI, SDI Audio Decode: MPEG 1 Layer II, LC-AAC, HE-AAC, Dolby Digital/ Dolby Digital Plus Audio Output Mode: Left, Right, Stereo, 5.1 CH |
||
|
System |
Local interface |
LCD + control buttons |
|
Remote management |
Web-server Management |
||
Language |
English |
||
Upgrade |
USB, web management |
||
|
General |
Power supply |
AC 100V~240V |
|
Dimensions |
482*300*44.5mm |
||
Weight |
3 kgs |
||
Operation temperature |
0~45℃ |
||

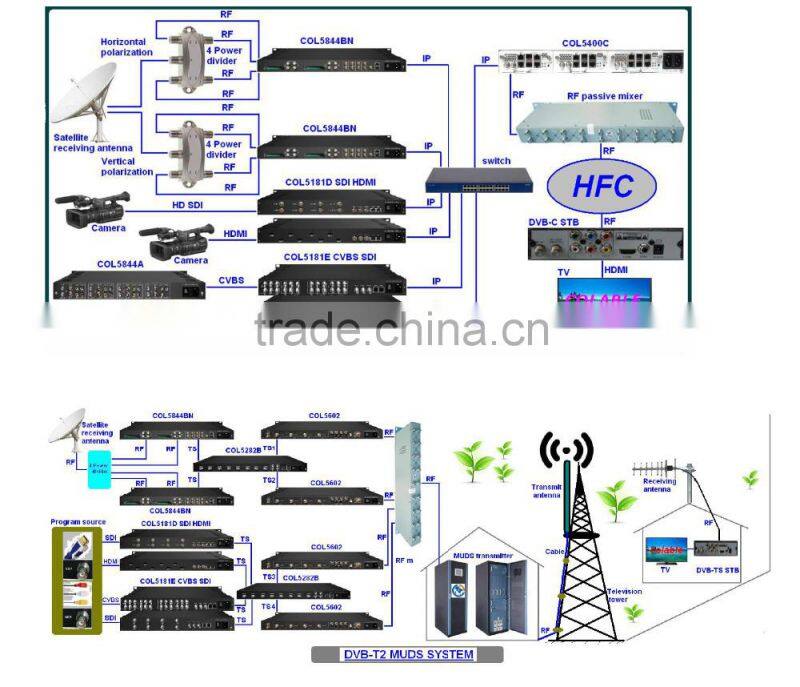

Typical application system:
Asking for more information? please feel free to directly chat with Betty.Li:
Or move your finger and send an inquiry to Supplier on the right side.
We Colable Electronics co.,ltd
specialize in Digital TV broadcasting equipment for more than 10 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!
Our experience: Continuous experienced and reliable Team , Standing in DVB Head-end system solution more than 10 years.
Our product: FTA satellite receiver/decoder, Satellite descrambler (CI slot), Encoder, Multiplexer,Scrambler, Modulator, Transmitter,Antenna,Set top box.
Our service: Life-long Technical support.
Warranty: 1 years.
Lead time: 2-5 working days
