Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > DS-SFP-4G-FC-SW, 4-Gbps Fibre Channel SFP, 850nm, 300m, LC, Optic Module/Transceiver, Compatible With Cisco, HP, H3C Etc

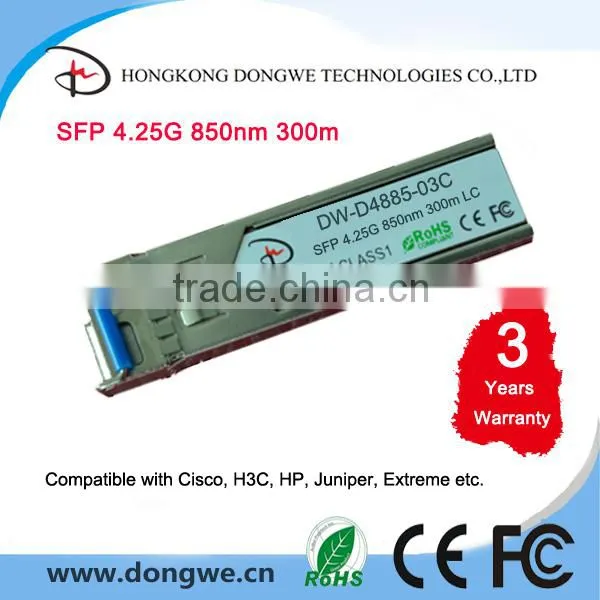

DS-SFP-4G-FC-SW, 4-Gbps Fibre Channel SFP, 850nm, 300m, LC, Optic Module/Transceiver, Compatible With Cisco, HP, H3C Etc

DS-SFP-4G-FC-SW, 4-Gbps Fibre Channel SFP, 850nm, 300m, LC, Optic Module/Transceiver, Compatible With Cisco, HP, H3C Etc thumbnail-1
DS-SFP-4G-FC-SW, 4-Gbps Fibre Channel SFP, 850nm, 300m, LC, Optic Module/Transceiver, Compatible With Cisco, HP, H3C Etc photo-1
US$ 1 - 20 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
DONGWE
Model Number:
DW-D4885-03C
Contact Supplier Request Quote Chat Now
Shenzhen Dongwe Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DONGWE
Model Number DW-D4885-03C



DS-SFP-4G-FC-SW, 4-Gbps Fibre Channel SFP, 850nm, 300m, LC, Optic Module/Transceiver, Compatible with Cisco, HP, H3C etc



Product Description

 Features

¨       Single 3.3 V supply

¨       Up to 500m on 50/125µm MMF, 300m on 62.5/125µm MMF

¨       Supports 1.0625/2.125/4.25Gb/s Fiber Channel Operation

¨       Gigabit Ethernet compatible

¨       850nm VCSEL laser transmitter

¨       SFP MSA SFF-8074i compliant

¨       Digital Diagnostic SFF-8472 compliant

¨       Compatible with RoHS

¨       Operating case temperature: Standard :  0 to +70°C

                                                       Industrial : -40 to +85°C

Applications

¨       Tri Rate 1.0625 / 2.125 / 4.25Gbp/s Fiber Channel

¨       1.25Gbp/s 1000Base-LX Ethernet and 1000Base-LX10



Detail Description

The transceiver consists of three sections: a 850nm VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA)1. They are compatible with Fiber Channel per FC-PI-2 Rev. 10.0.  also simultaneously compatible with Gigabit Ethernet as specified in IEEE Std 802.3.



Ordering Information

Part Number Product Description
Copper SFP
 DW-T1110  Copper SFP, 10/100/1000M, RJ45, 0°C to +70°C
 DW-T1000  Copper SFP, 1000M, RJ45, 0°C to +70°C
155M SFP
 DW-D0385-02C  SFP, 155M, 850nm, 2km, 0°C to +70°C
 DW-D0331-10C  SFP, 155M, 1310nm, 10km, 0°C to +70°C
 DW-D0331-20C  SFP, 155M, 1310nm, 20km, 0°C to +70°C
 DW-D0331-40C  SFP, 155M, 1310nm, 40km, 0°C to +70°C
 DW-D0355-60C  SFP, 155M, 1550nm, 60km, 0°C to +70°C
 DW-D0355-80C  SFP, 155M, 1550nm, 80km, 0°C to +70°C
 DW-D0355-12C  SFP, 155M, 1550nm, 120km, 0°C to +70°C
 DW-D0355-15C  SFP, 155M, 1550nm, 150km, 0°C to +70°C
1.25G SFP
 DW-D1285-05C  SFP, 1.25G, 850nm, 550m, 0°C to +70°C
 DW-D1231-10C  SFP, 1.25G, 1310nm, 10km, 0°C to +70°C
 DW-D1231-20C  SFP, 1.25G, 1310nm, 20km, 0°C to +70°C
 DW-D1231-40C  SFP, 1.25G, 1310nm, 40km, 0°C to +70°C
 DW-D1255-40C  SFP, 1.25G, 1550nm, 40km, 0°C to +70°C
 DW-D1255-60C  SFP, 1.25G, 1550nm, 60km, 0°C to +70°C
 DW-D1255-80C  SFP, 1.25G, 1550nm, 80km, 0°C to +70°C
 DW-D1255-12C  SFP, 1.25G, 1550nm, 120km, 0°C to +70°C
2.125G/2.5G SFP
 DW-D2485-03C  SFP, 2.125G/2.5G, 850nm, 300m, 0°C to +70°C
 DW-D2431-10C

 SFP, 2.125G/2.5G, 1310nm, 10km, 0°C to +70°C
 DW-D2431-20C  SFP, 2.125G/2.5G, 1310nm, 20km, 0°C to +70°C
 DW-D2431-40C  SFP, 2.125G/2.5G, 1310nm, 40km, 0°C to +70°C
 DW-D2455-40C  SFP, 2.125G/2.5G, 1550nm, 40km, 0°C to +70°C
 DW-D2455-60C  SFP, 2.125G/2.5G, 1550nm, 60km, 0°C to +70°C
 DW-D2455-80C  SFP, 2.125G/2.5G, 1550nm, 80km, 0°C to +70°C
4.25G
 DW-D4885-03C  SFP, 4.25G, 850nm, 300m, 0°C to +70°C
 DW-D4831-20C  SFP, 4.25G, 1310nm, 20km, 0°C to +70°C

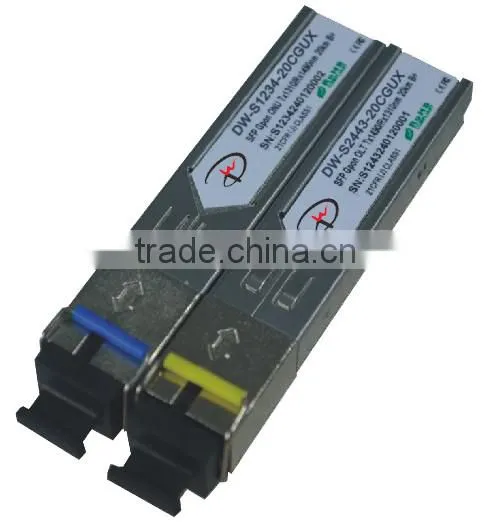

BIDI SFP
155M

 DW-S0335-10C

 DW-S0353-10C

  BIDI SFP, 155M, 1310/1550, 1550/1310, 10km, 0°C to +70°C


 DW-S0335-20C

 DW-S0353-20C

  BIDI SFP, 155M, 1310/1550, 1550/1310, 20km, 0°C to +70°C


 DW-S0334-20C

 DW-S0343-20C

  BIDI SFP, 155M, 1310/1490, 1490/1310, 20km, 0°C to +70°C


 DW-S0335-40C

 DW-S0353-40C

  BIDI SFP, 155M, 1310/1550, 1550/1310, 40km, 0°C to +70°C


 DW-S0334-40C

 DW-S0343-40C

  BIDI SFP, 155M, 1310/1490, 1490/1310, 40km, 0°C to +70°C


 DW-S0335-60C

 DW-S0353-60C

  BIDI SFP, 155M, 1310/1550, 1550/1310, 60km, 0°C to +70°C


 DW-S0334-60C

 DW-S0343-60C

  BIDI SFP, 155M, 1310/1490, 1490/1310, 60km, 0°C to +70°C


 DW-S0345-80C

 DW-S0354-80C

  BIDI SFP, 155M, 1490/1550, 1550/1490, 80km, 0°C to +70°C


 DW-S0345-12C

 DW-S0354-12C

  BIDI SFP, 155M, 1490/1550, 1550/1490, 120km, 0°C to +70°C
1.25G

 DW-S1235-03C

 DW-S1253-03C

 BIDI SFP, 1.25G, 1310/1550, 1550/1310, 3km, 0°C to +70°C


 DW-S1235-10C

 DW-S1253-10C

 BIDI SFP, 1.25G, 1310/1550, 1550/1310, 10km, 0°C to +70°C


 DW-S1235-20C

 DW-S1253-20C

 BIDI SFP, 1.25G, 1310/1550, 1550/1310, 20km, 0°C to +70°C


 DW-S1234-20C

 DW-S1243-20C

 BIDI SFP, 1.25G, 1310/1490, 1490/1310, 20km, 0°C to +70°C


 DW-S1235-40C

 DW-S1253-40C

 BIDI SFP, 1.25G, 1310/1550, 1550/1310, 40km, 0°C to +70°C


 DW-S1234-40C

 DW-S1243-40C

 BIDI SFP, 1.25G, 1310/1490, 1490/1310, 40km, 0°C to +70°C


 DW-S1235-80C

 DW-S1253-80C

 BIDI SFP, 1.25G, 1310/1550, 1550/1310, 80km, 0°C to +70°C


 DW-S1245-80C

 DW-S1254-80C

 BIDI SFP, 1.25G, 1490/1550, 1550/1490, 80km, 0°C to +70°C
Compatible Brands

DS-SFP-4G-FC-SW, 4-Gbps Fibre Channel SFP, 850nm, 300m, LC, Optic Module/Transceiver, Compatible with Cisco, HP, H3C etc



DS-SFP-4G-FC-SW, 4-Gbps Fibre Channel SFP, 850nm, 300m, LC, Optic Module/Transceiver, Compatible with Cisco, HP, H3C etc

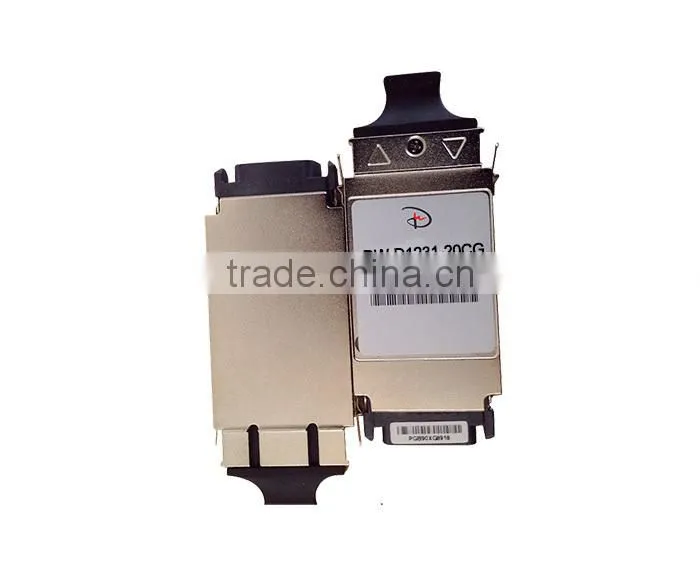

           GBIC



DS-SFP-4G-FC-SW, 4-Gbps Fibre Channel SFP, 850nm, 300m, LC, Optic Module/Transceiver, Compatible with Cisco, HP, H3C etc

SFP

DS-SFP-4G-FC-SW, 4-Gbps Fibre Channel SFP, 850nm, 300m, LC, Optic Module/Transceiver, Compatible with Cisco, HP, H3C etc

                      SFP+

DS-SFP-4G-FC-SW, 4-Gbps Fibre Channel SFP, 850nm, 300m, LC, Optic Module/Transceiver, Compatible with Cisco, HP, H3C etc

                  XFP

DS-SFP-4G-FC-SW, 4-Gbps Fibre Channel SFP, 850nm, 300m, LC, Optic Module/Transceiver, Compatible with Cisco, HP, H3C etc

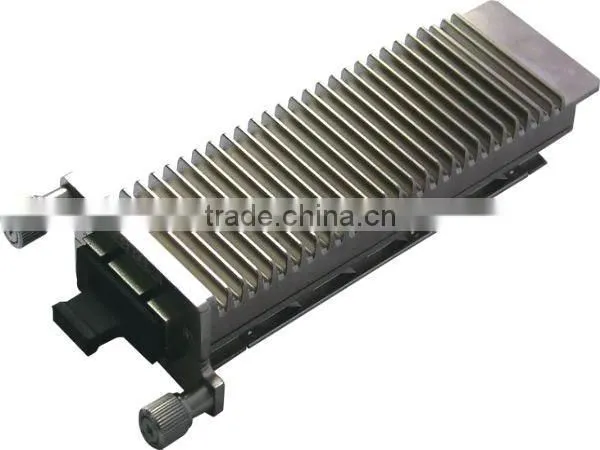

                    X2

DS-SFP-4G-FC-SW, 4-Gbps Fibre Channel SFP, 850nm, 300m, LC, Optic Module/Transceiver, Compatible with Cisco, HP, H3C etc

                 Xenpak

DS-SFP-4G-FC-SW, 4-Gbps Fibre Channel SFP, 850nm, 300m, LC, Optic Module/Transceiver, Compatible with Cisco, HP, H3C etc

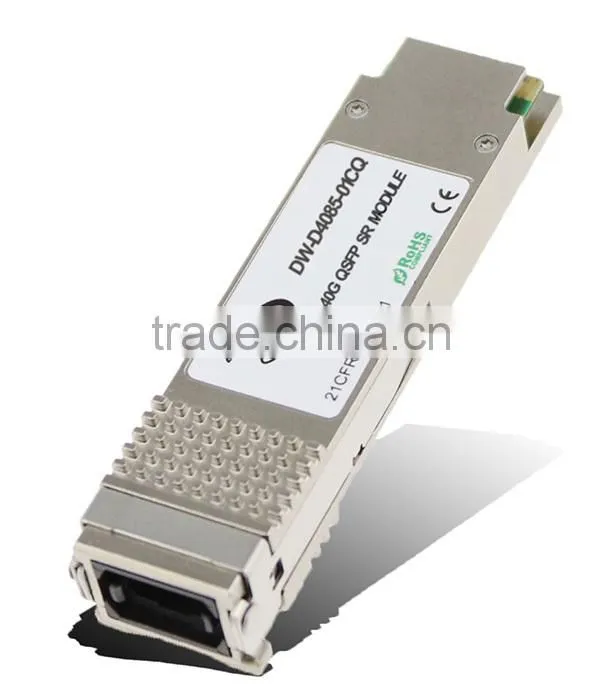

                QSFP

DS-SFP-4G-FC-SW, 4-Gbps Fibre Channel SFP, 850nm, 300m, LC, Optic Module/Transceiver, Compatible with Cisco, HP, H3C etc

  SFP GPON ONU/OLT

DS-SFP-4G-FC-SW, 4-Gbps Fibre Channel SFP, 850nm, 300m, LC, Optic Module/Transceiver, Compatible with Cisco, HP, H3C etc

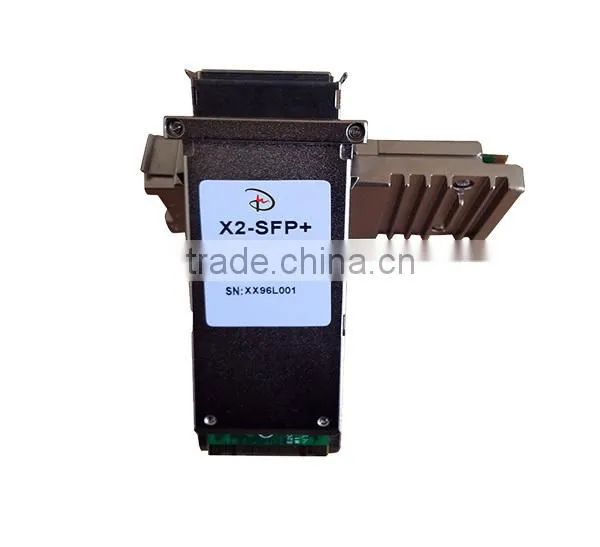

          10G Converter



DS-SFP-4G-FC-SW, 4-Gbps Fibre Channel SFP, 850nm, 300m, LC, Optic Module/Transceiver, Compatible with Cisco, HP, H3C etc

               CSFP

DS-SFP-4G-FC-SW, 4-Gbps Fibre Channel SFP, 850nm, 300m, LC, Optic Module/Transceiver, Compatible with Cisco, HP, H3C etc

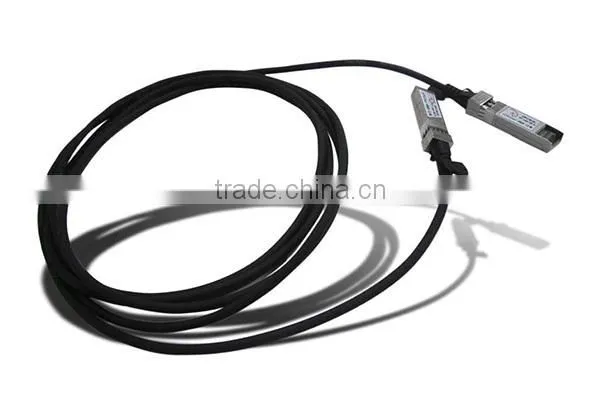

   Direct Attach Cable



Package and shipment

DS-SFP-4G-FC-SW, 4-Gbps Fibre Channel SFP, 850nm, 300m, LC, Optic Module/Transceiver, Compatible with Cisco, HP, H3C etc

Shipment:

International  Express: DHL, FedEx, UPS, TNT and EMS optional

Factory Show

DS-SFP-4G-FC-SW, 4-Gbps Fibre Channel SFP, 850nm, 300m, LC, Optic Module/Transceiver, Compatible with Cisco, HP, H3C etc

Our Service

      1.  Competitive price

      2.  3 years warranty
       3.  Reply your inquiry within 2 hours
      4.  Have large quantity modules in stock, delivery fast
      5.  Label can be customized, also ODM and OEM service offered
      6.  100% new material and good quality
      7.  Can be compatible with a lot of brands like Cisco, HP, H3C, Extreme, Juniper etc.
      8.  Capacity: 10,000pcs/day
      9.  Certificates below:

      DS-SFP-4G-FC-SW, 4-Gbps Fibre Channel SFP, 850nm, 300m, LC, Optic Module/Transceiver, Compatible with Cisco, HP, H3C etc

Related Products

You may also be interested in other products like:

WS-G5483                     WS-G5484                WS-G5486               WS-G5487

GLC-T                            GLC-SX-MM                    GLC-LH-SM                   GLC-EX-SM

GLC-ZX-SM                   GLC-BX-D                        GLC-BX-U

SFP-10G-SR                  SFP-10G-LR              SFP-10G-ER            SFP-10G-ZR



For further information and more products, please don't hesitate to contact us, we would be glad to hear from you. Thanks!!! :) :) :)





Contact:

ZOE ZHOU

HONGKONG DONGWE TECHNOLOGIES CO.,LTD

Add: B2615-2616, 6/F, Yuanzheng Industrial Park, Wuhe Road, Bantian, Longgang, Shenzhen, China

Tel: 86-755-85292799/807     Fax: 86-755-86151614

Wechat & Whatsapp: +86 18219201433

Skype: dongwe055

Web:

Email: sales055(@)
